20762 C - Toro Walk-Behind Mower (SN: 006000001 - 006999999) (1986) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

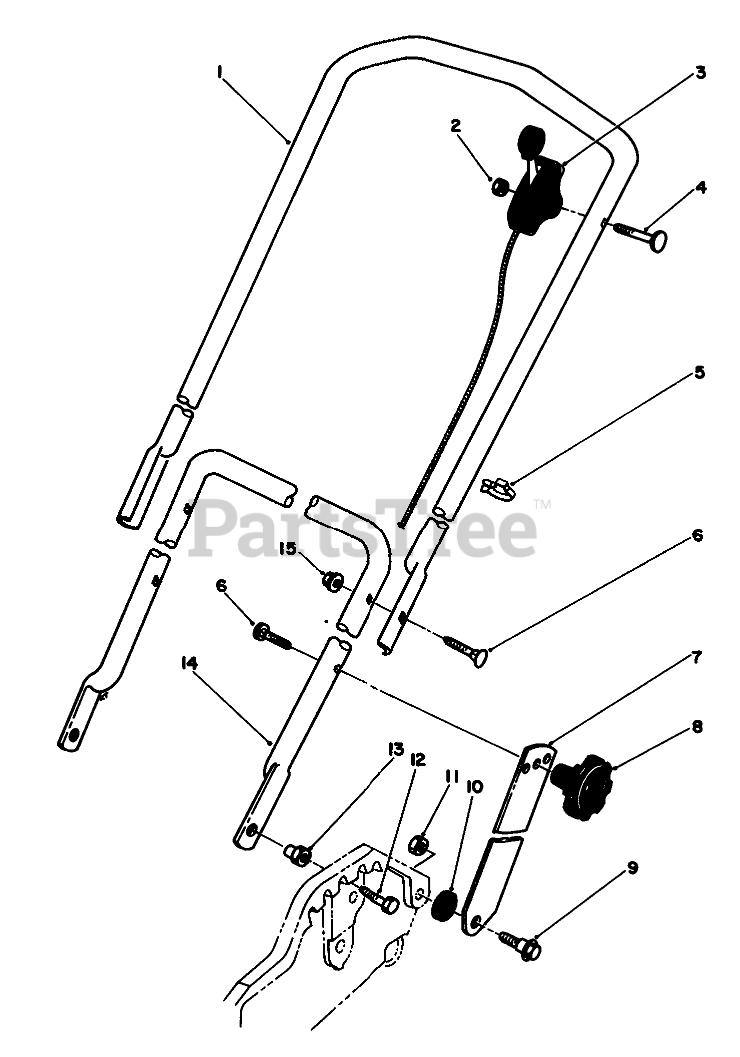

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 52-7420

UPPER HANDLE

$159.99

$

Usually ships in 3-6 days

0

2

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

3

Toro 46-6000

SERVICE THROTTLE CONTRO

$53.99

$

Usually ships in 3-6 days

0

4

Toro 46-6430

SCREW-HANDLE

$13.99

$

Usually ships in 3-6 days

0

5

Toro 218-465

BOWDEN CLIP

$

$

Not available

6

Toro 17-9424

SCREW
(Superseded to 6-6330)

$

$

Not available

7

Toro 43-1370

Handle Latch
(Superseded to 98-7138)

$

$

Not available

8

Toro 19-4050

KNOB

$18.99

$

In Stock, only 3 left!

0

9

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 11

0

10

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 13

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

14

Toro 50-9920

LOWER HANDLE

$

$

Not available

15

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0
