20762 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

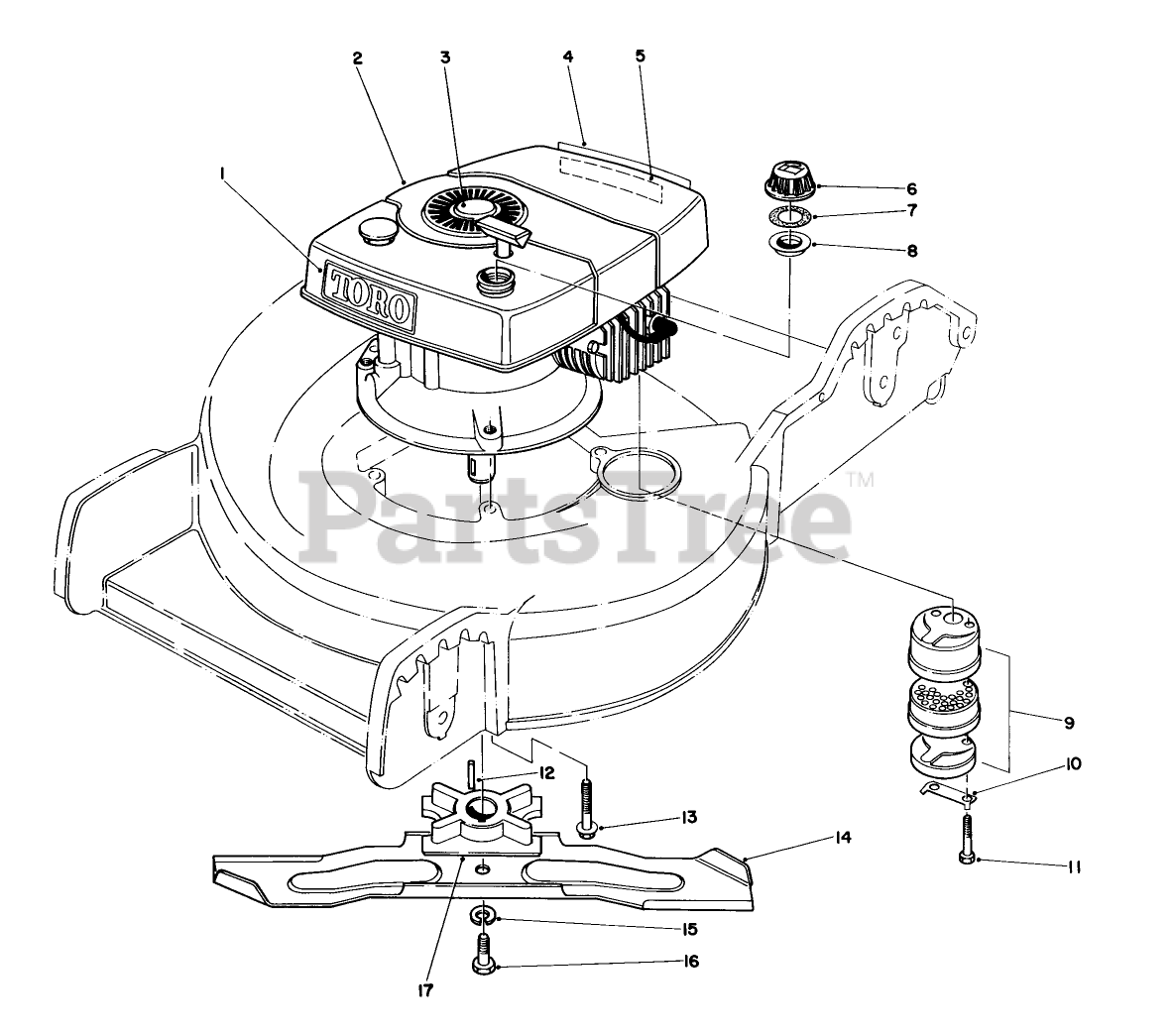

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 221-739

Engine

$

$

Currently unavailable

3

Toro 38-1481

Plug Button

$

$

Not available

4

Toro 46-9300

Decal-Primer

$

$

Not available

5

Toro 40-2950

Decal Maintenance

$

$

Not available

6

Toro 27-7872

Gas Cap Assembly (Incl.Ref. #7 &8)
(Superseded to 42-0682)

$

$

Not available

7

Toro 2210-144

GASKET

$9.99

$

Usually ships in 3-6 days

0

8

Toro 2210-143

GAS CAP BAFFLE

$

$

Not available

9

Toro 5-4769

Muffler Assembly (Incl. Ref.#10 & 11)

$54.99

$

Usually ships in 3-6 days

0

10

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

11

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

12

Toro 27-8590

KEY-SQUARE

$6.49

$

Usually ships in 3-6 days

0

13

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

14

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

In Stock, only 1 left!

0

15

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

16

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

17

Toro 46-4870

Blade Retainer
(Superseded to 49-7890)

$64.99

$

Usually ships in 3-6 days

0
