20762 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

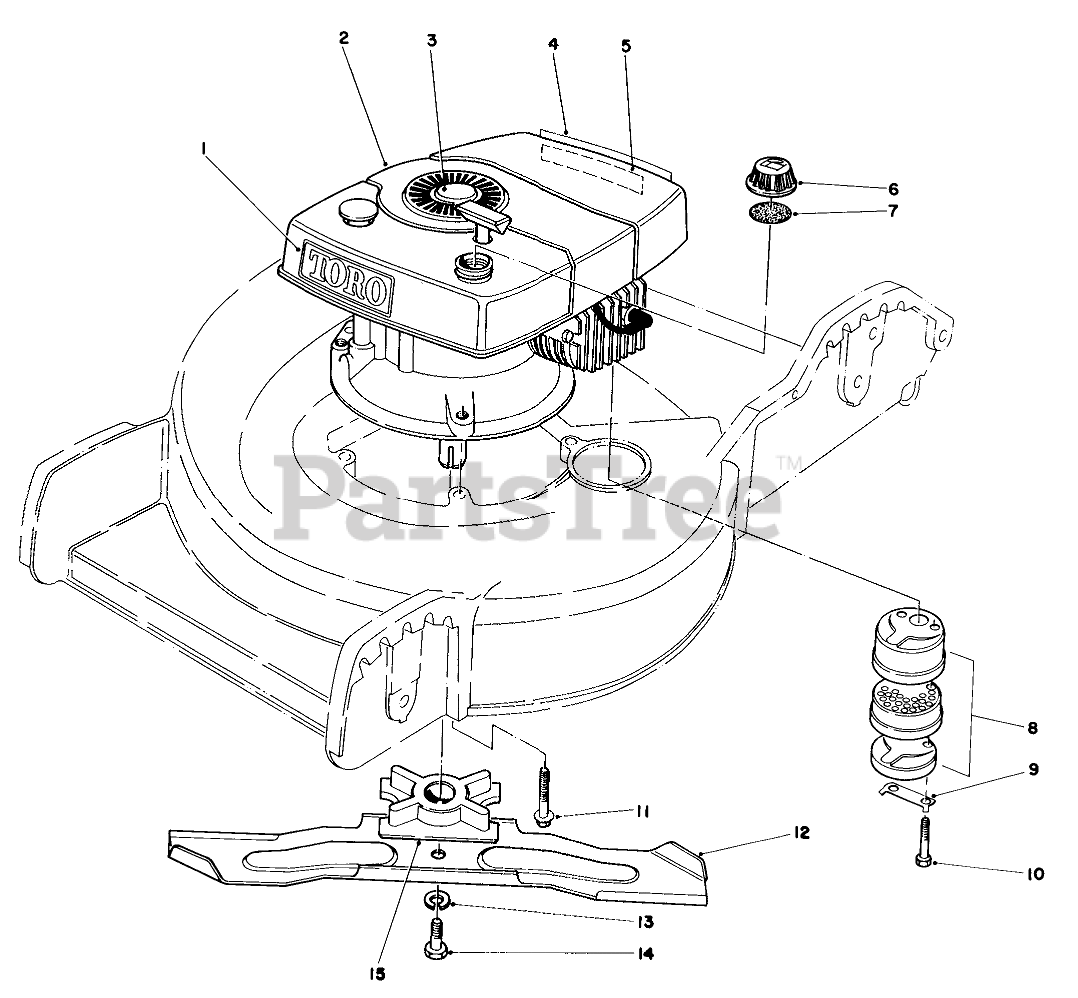

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 44-0510

Decal Tow
(Superseded to 70-2200)

$6.49

$

Usually ships in 3-6 days

0

2

Toro 221-739

Engine

$

$

Currently unavailable

3

Toro 38-1481

Plug Button

$

$

Not available

4

Toro 46-9300

Decal-Primer

$

$

Not available

5

Toro 40-2950

Decal Maintenance

$

$

Not available

6

Toro 42-0682

Gas Cap Assembly (Incl. Ref. #7)

$

$

Not available

7

Toro 20-4620

GAS CAP GASKET

$8.99

$

In Stock, Qty 6

0

8

Toro 5-4769

Muffler Assembly (Incl. Ref. #10 & 11)

$54.99

$

Usually ships in 3-6 days

0

9

Toro 3-5094

CLIP - LOCKING

$10.99

$

Usually ships in 3-6 days

0

10

Toro 321-20

SCREW-HH

$7.49

$

Usually ships in 3-6 days

0

11

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

12

Toro 33-0490

Blade
(Superseded to 33-0490-03)

$42.99

$

In Stock, only 1 left!

0

13

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

14

Toro 26-0671

SCREW-HH

$9.49

$

In Stock, Qty 20+

0

15

Toro 49-7890

BLADE RETAINER

$64.99

$

Usually ships in 3-6 days

0

Toro 39-5930

Spark Arrestor Muffler (Incl. Ref. #9 & 10)

Note: Optional equipment

$

$

Not available
