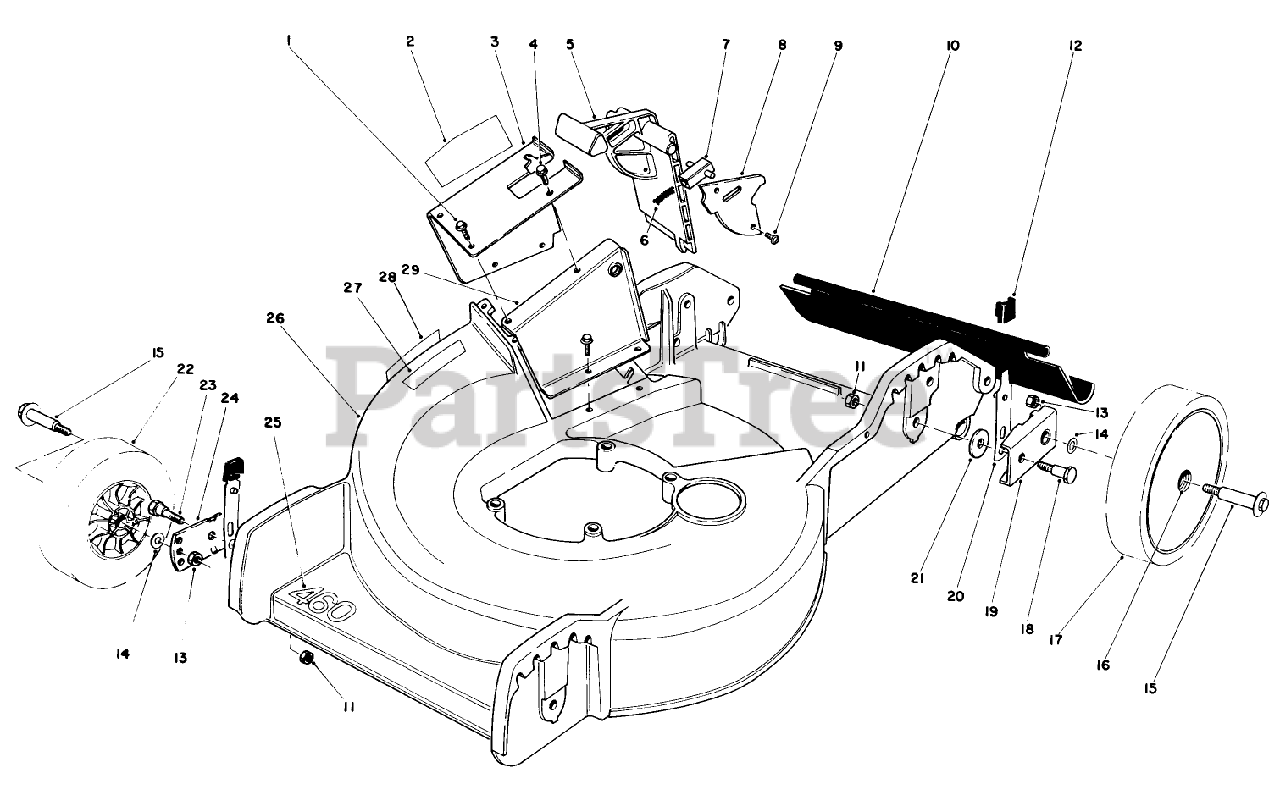

20762 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Housing Assembly Parts Diagram

Walk-Behind Mower

Housing Assembly Parts Diagram

  • Title

1

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 11

0

2

Toro 46-2400

DISCONTINUED

$

$

Not available

3

Toro 11-6559

See Supercession: 13-5839
(Superseded to 13-5839)

$

$

Not available

4

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

5

Toro 33-0410

See Supercession: 33-0412
(Superseded to 33-0412)

$

$

Not available

6

Toro 33-0450

SPRING-COMPRESSION, LATCH

$

$

Not available

7

Toro 47-5550

See Supercession: 47-5551
(Superseded to 47-5551)

$

$

Not available

8

Toro 33-0440

See Supercession: 33-0441
(Superseded to 33-0441)

$

$

Not available

9

Toro 32144-32

SCREW

$2.99

$

Usually ships in 3-6 days

0

10

Toro 33-2380

SHIELD - TRAILING

$76.99

$

Usually ships in 3-6 days

0

11

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

12

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

13

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

14

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

15

Toro 274230

Bolt-Wheel

$

$

Currently unavailable

16

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

17

Toro 11-6349

DISCONTINUED

$

$

Not available

18

Toro 44-5271

PIVOT SCREW

$9.49

$

In Stock, only 1 left!

0

19

Toro 47-2940

HP PIVOT ARM ASM

$

$

Not available

20

Toro 25-8000

SPRING ARM ASM

$

$

Not available

21

Toro 33-0390

PIVOT WASHER

$4.49

$

In Stock, only 2 left!

0

22

Toro 46-1113

DISCONTINUED

$

$

Not available

23

Toro 25-3440

PIVOT SCREW

$

$

Not available

24

Toro 33-0400

PIVOT ARM ASSY

$

$

Not available

25

Toro 46-8330

DISCONTINUED

$

$

Not available

26

Toro 11-4059

DISCONTINUED

$

$

Not available

27

Toro 40-2720

DISCONTINUED

$

$

Not available

28

Toro 46-7370

STEP PAD DECAL

$28.99

$

Usually ships in 3-6 days

0

29

Toro 49-8030

DISCONTINUED
(Superseded to 49-8030-01)

$

$

Not available
