20768 - Toro 53cm Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) Engine Gts 150 Ohv 7 Parts Diagram

53cm Recycler Walk-Behind Mower

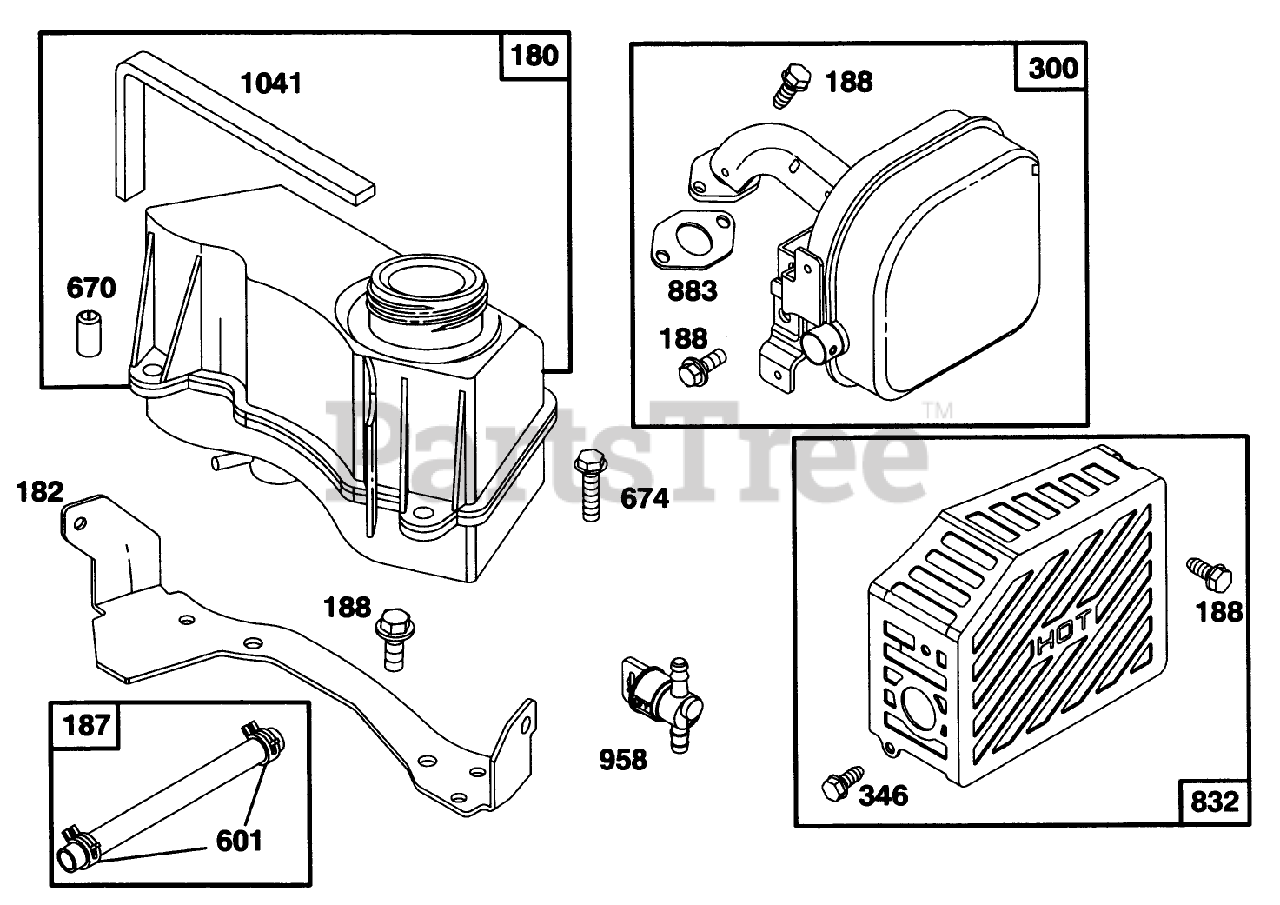

Engine Gts 150 Ohv 7 Parts Diagram

  • Title

180

Toro 77-8580

TANK ASSY - FUEL

$212.99

$

Usually ships in 3-6 days

0

182

Toro 77-7170

DISCONTINUED

$

$

Not available

187

Toro 78-4100

BRIGGS 296004

$

$

Not available

188

Toro 94-1652

SCREW - HEX HEAD

$

$

Not available

300

Toro 77-8640

MUFFLER - EXHAUST

$

$

Not available

346

Toro 94-1674

See Supercession: 99-0999
(Superseded to 99-0999)

$9.99

$

Usually ships in 3-6 days

0

601

Toro 78-4690

DISCONTINUED

$

$

Not available

670

Toro 77-9030

SPACER

$

$

Not available

674

Toro 77-8600

SCREW - HEX HEAD

$

$

Not available

832

Toro 77-9290

DISCONTINUED

$

$

Not available

883

Toro 77-7760

DISCONTINUED

Note: Included in Gasket Set-Part No. 77-8900.

$

$

Not available

958

Toro 77-9440

DISCONTINUED

$

$

Not available

1041

Toro 77-8590

DISCONTINUED

Note: Included in Gasket Set-Part No. 77-8900.

$

$

Not available
