2077 - Jonsered Chainsaw (1998-03) STARTER Parts Diagram

Chainsaw

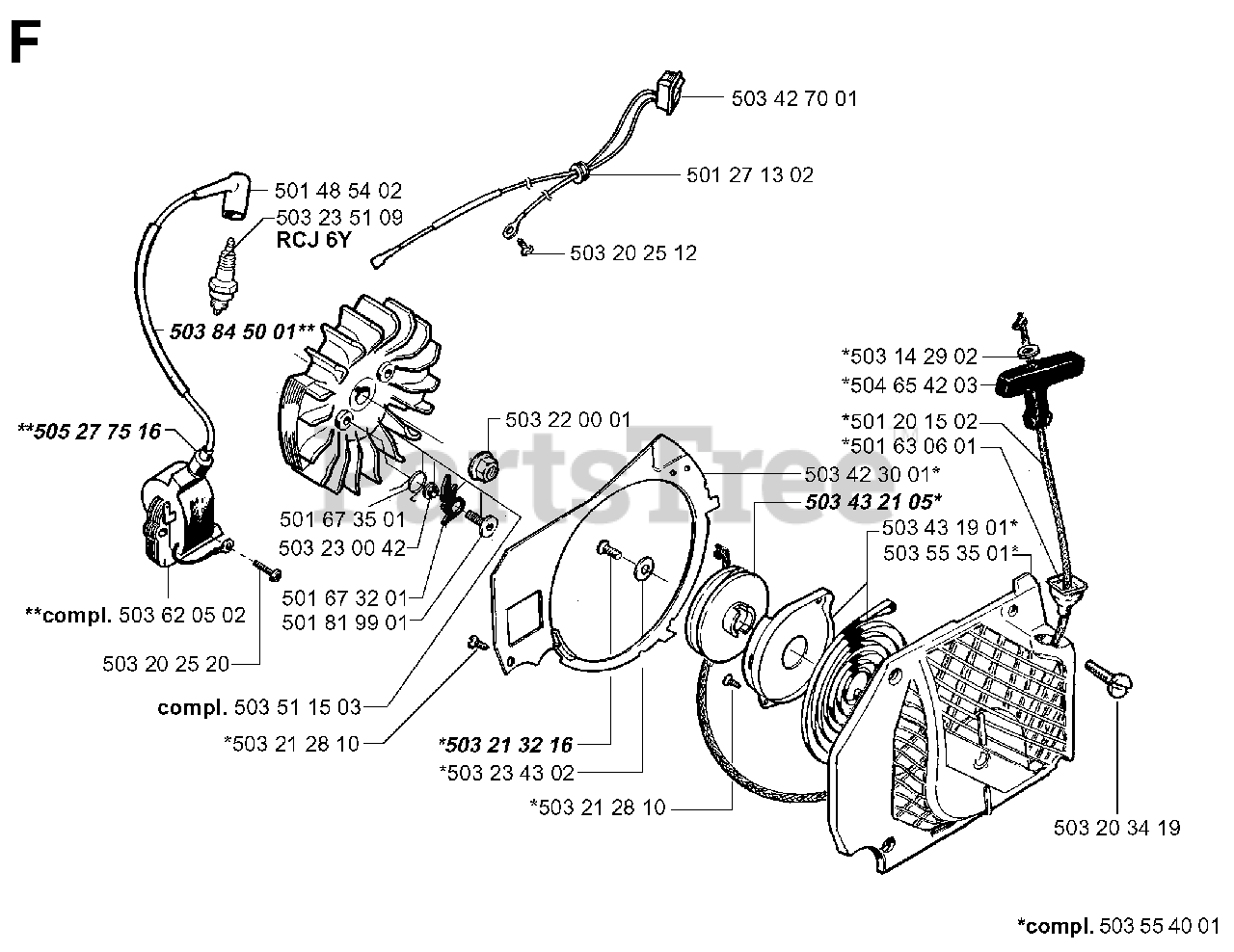

STARTER Parts Diagram

  • Title

501485402

Jonsered 501485402

SPARK PLUG CONN. KIT

$12.99

$

In Stock, Qty 20+

0

503235109

Jonsered 503235109

SPARK PLUG RCJ6Y NLA
(Superseded to 503235112)

Note: RCJ 6Y

$3.49

$

In Stock, Qty 20+

0

503845001

Jonsered 503845001

IGNITION CABLE
(Superseded to 501531601)

$12.99

$

In Stock, only 2 left!

0

505277516

Jonsered 505277516

INSULATING CAP

$10.99

$

Usually ships in 3-10 days

0

503620502

Jonsered 503620502

IGNITION MODULE
(Superseded to 503901704)

$

$

Not available

503202520

Jonsered 503202520

SCREW

$6.49

$

In Stock, Qty 12

0

503511503

Jonsered 503511503

FLYWHEEL
(Superseded to 537051602)

$241.99

$

Usually ships in 3-10 days

0

503212810

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

503212810

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

503234302

Jonsered 503234302

WASHER

$7.49

$

In Stock, only 2 left!

0

503213216

Jonsered 503213216

SCREW

$2.49

$

Usually ships in 3-10 days

0

501819901

Jonsered 501819901

SCREW M5X14

$6.49

$

In Stock, Qty 8

0

501673201

Jonsered 501673201

PAWL

$8.99

$

In Stock, Qty 14

0

503230042

Jonsered 503230042

WASHER

$6.49

$

In Stock, Qty 16

0

501673501

Jonsered 501673501

SPRING

$7.49

$

In Stock, Qty 20+

0

503220001

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

503202512

Jonsered 503202512

SCREW

$5.99

$

In Stock, Qty 20+

0

501271302

Jonsered 501271302

GROMMET

$7.49

$

In Stock, only 1 left!

0

503427001

Jonsered 503427001

SWITCH

$12.68

$

Usually ships in 3-10 days

0

503203419

Jonsered 503203419

SCREW

$3.99

$

In Stock, Qty 20+

0

503554001

Jonsered 503554001

STARTER ASSY CPL.

$

$

Not available

503553501

Jonsered 503553501

STARTER ASSY

$

$

Not available

503431901

Jonsered 503431901

RECOIL SPRING

$22.99

$

Usually ships in 3-10 days

0

503432105

Jonsered 503432105

STARTER PULLEY

$18.99

$

Usually ships in 3-10 days

0

503423001

Jonsered 503423001

AIR CONDUCTOR

$

$

Not available

501630601

Jonsered 501630601

SLEEVE

$10.99

$

In Stock, only 2 left!

0

501201502

Jonsered 501201502

STARTER ROPE

$10.99

$

In Stock, Qty 9

0

504654203

Jonsered 504654203

HANDLE

$10.99

$

In Stock, Qty 6

0

503142902

Jonsered 503142902

WASHER

$2.49

$

In Stock, Qty 15

0
