20771 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Handle Assembly Parts Diagram

Walk-Behind Mower

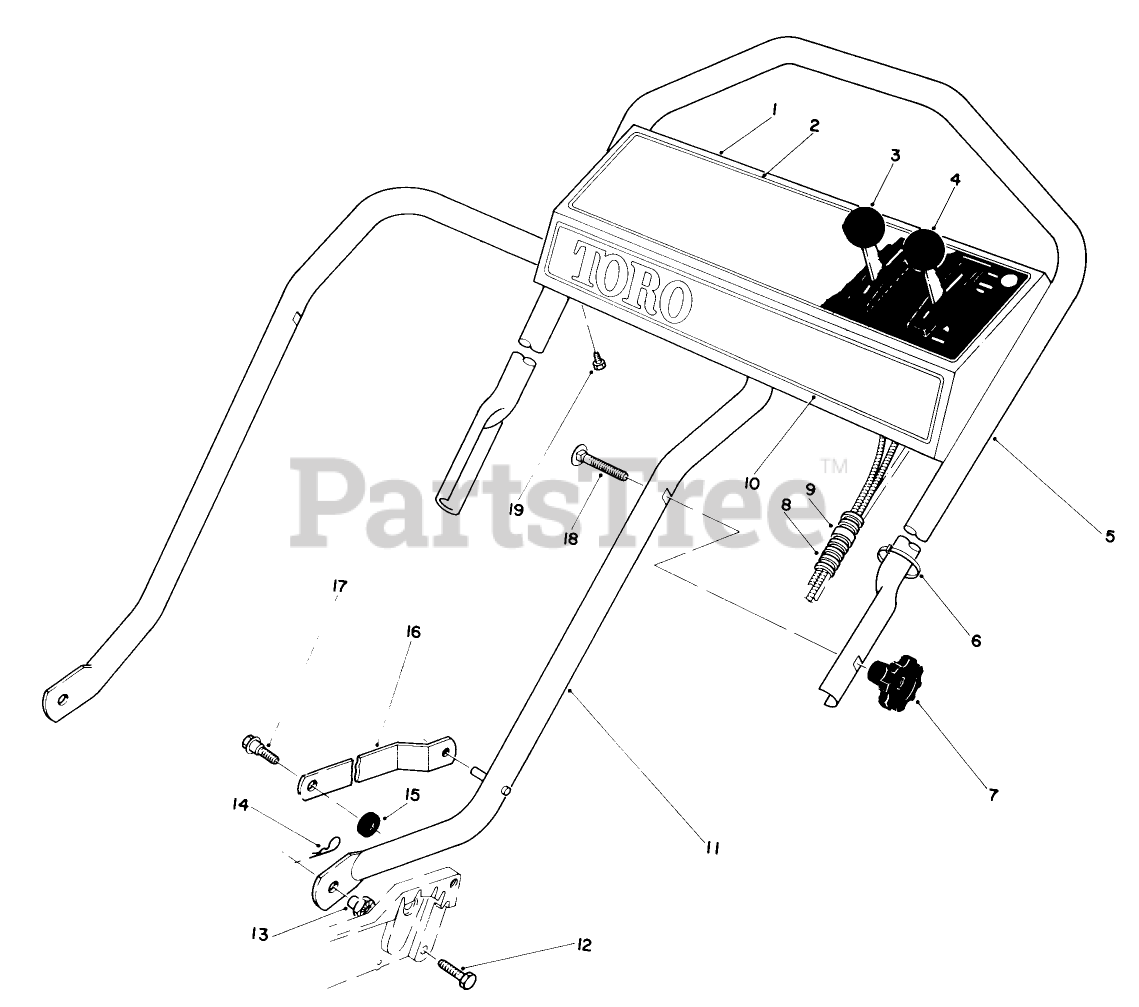

Handle Assembly Parts Diagram

  • Title

1

Toro 11-4699

DISCONTINUED

$

$

Not available

2

Toro 46-7390

DISCONTINUED

$

$

Not available

3

Toro 46-6040

SERVICE TRACT. CONTROL

$

$

Not available

4

Toro 46-6010

SERVICE THROTTLE CONTRO

$

$

Not available

5

Toro 46-4990

DISCONTINUED

$

$

Not available

6

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

7

Toro 19-4050

KNOB

$18.99

$

Usually ships in 3-6 days

0

8

Toro 46-6442

DISCONTINUED

$

$

Not available

9

Toro 2412-50

FITTING-RING

$10.99

$

Usually ships in 3-6 days

0

10

Toro 46-7380

DISCONTINUED
(Superseded to 66-1770)

$

$

Not available

11

Toro 33-4340

DISCONTINUED

$

$

Not available

12

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

13

Toro 12-2080

HANDLE PIVOT NUT

$27.99

$

Usually ships in 3-6 days

0

14

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

15

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

16

Toro 26-0760

DISCONTINUED

$

$

Not available

17

Toro 5-2490

SCREW-SHOULDER

$

$

Not available

18

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

19

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0
