20773 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Blade Brake Clutch Assembly Parts Diagram

Walk-Behind Mower

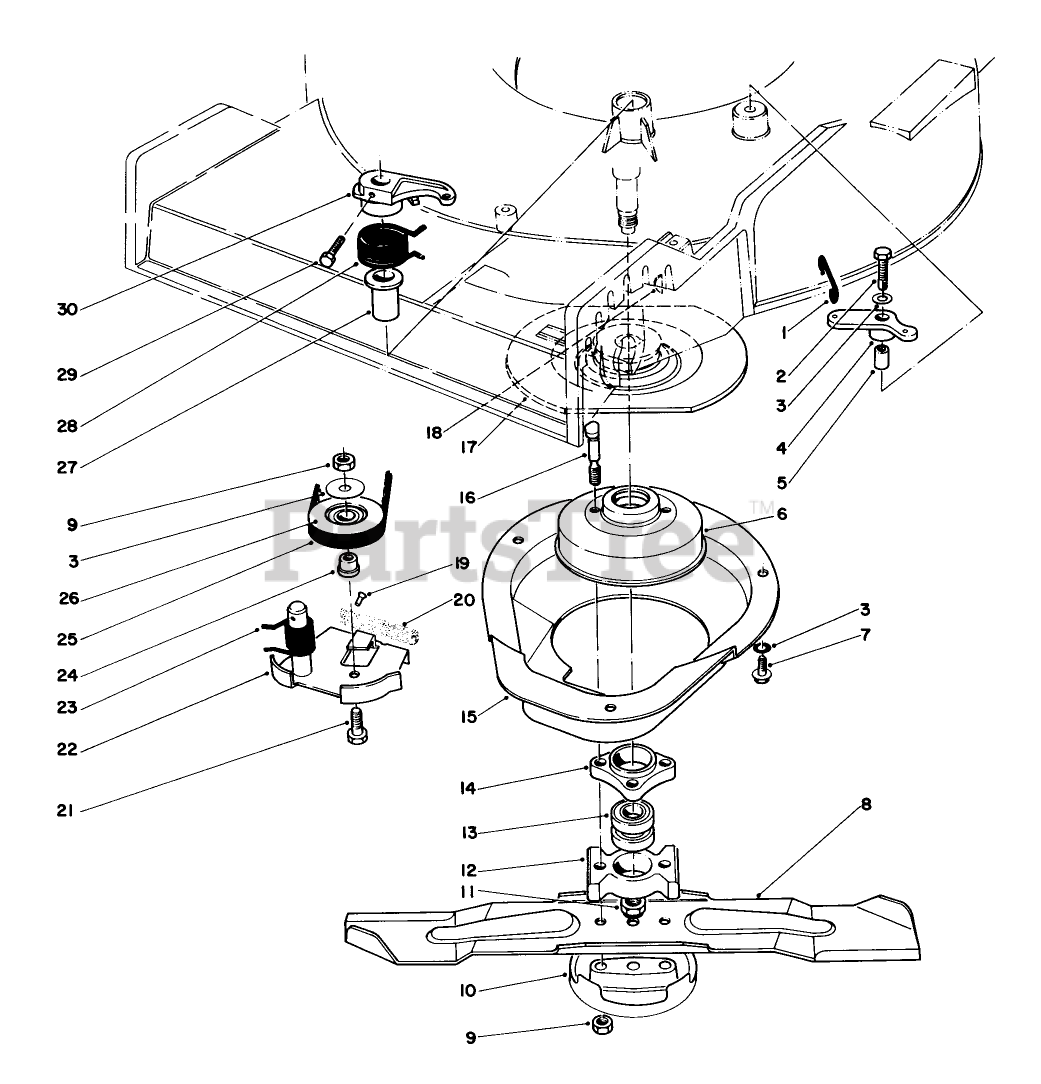

Blade Brake Clutch Assembly Parts Diagram

  • Title
1

Toro 43-1380

DISCONTINUED

$

$

Not available

2

Toro 32104-107

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

3

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

4

Toro 46-5640

DISCONTINUED

$

$

Not available

5

Toro 42-1330

DISCONTINUED

$

$

Not available

6

Toro 42-1020

See Supercession: 94-9431
(Superseded to 94-9431)

$54.99

$

In Stock, Qty 20+

0

7

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

8

Toro 42-1000

See Supercession: 107-4276-03
(Superseded to 107-4276-03)

$29.99

$

In Stock, only 4 left!

0

9

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

10

Toro 42-0910

See Supercession: 80-2770
(Superseded to 80-2770)

$18.99

$

In Stock, only 2 left!

0

11

Toro 3296-33

NUT-LOCK, NI

$2.99

$

In Stock, only 3 left!

0

12

Toro 42-6760

See Supercession: 107-4275
(Superseded to 107-4275)

$26.99

$

Usually ships in 3-6 days

0

13

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

14

Toro 42-6890

HUB ASM

$109.99

$

In Stock, only 2 left!

0

15

Toro 46-8710

DISCONTINUED

$

$

Not available

16

Toro 42-3190

BOLT-BLADE

$12.99

$

In Stock, Qty 8

0

17

Toro 43-7720

DISCONTINUED PRC4

$

$

Not available

18

Toro 3257-3

KEY-WOODRUFF

$1.49

$

In Stock, Qty 5

0

19

Toro 3295-23

.185 DIA X .375 RT +

$12.99

$

Usually ships in 3-6 days

0

20

Toro 42-0890

See Supercession: 11-1359
(Superseded to 11-1359)

$

$

Not available

21

Toro 322-16

SCREW-HH

$3.99

$

Usually ships in 3-6 days

0

22

Toro 42-0940

See Supercession: 11-1359
(Superseded to 11-1359)

$

$

Not available

23

Toro 46-5670

SPRING-TORSION

$12.99

$

Usually ships in 3-6 days

0

24

Toro 46-5630

HUB-PULLEY, IDLER

$20.99

$

In Stock, only 2 left!

0

25

Toro 42-0880

See Supercession: 42-0881
(Superseded to 42-0881)

$

$

Not available

26

Toro 46-5650

See Supercession: 117-5299
(Superseded to 117-5299)

$44.99

$

In Stock, only 3 left!

0

27

Toro 46-6680

BUSHING PM

$28.99

$

Usually ships in 3-6 days

0

28

Toro 46-5660

DISCONTINUED

$

$

Not available

29

Toro 32104-97

SCREW-HWH THD CUT

$7.49

$

Usually ships in 3-6 days

0

30

Toro 42-0950

DISC. SEE PRCNOTES

$

$

Not available
