20773 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Front Wheel Pivot Arm Assembly Parts Diagram

Walk-Behind Mower

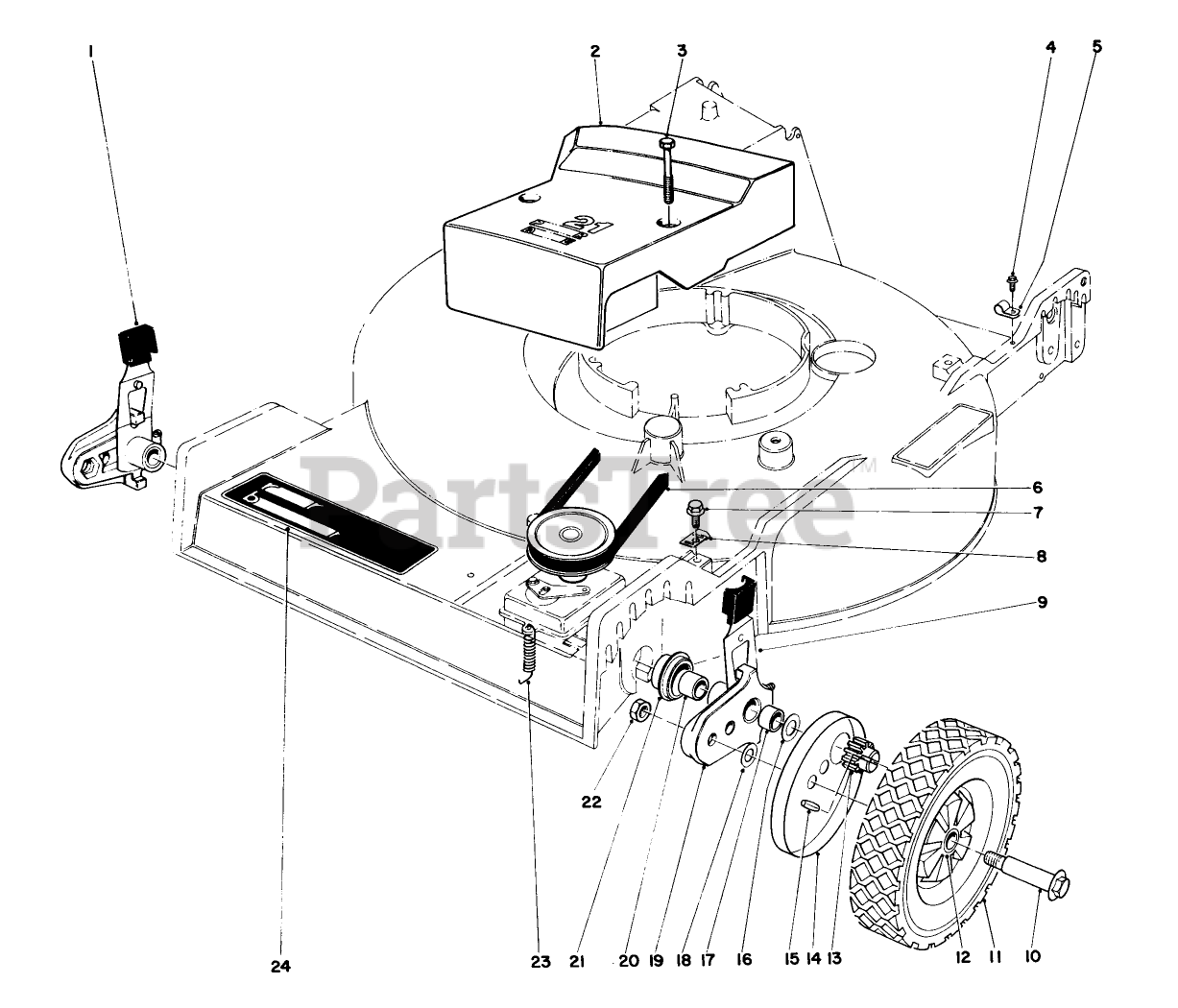

Front Wheel Pivot Arm Assembly Parts Diagram

  • Title

1

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

2

Toro 46-8780

DISCONTINUED

$

$

Not available

3

Toro 37-7261

DISCONTINUED

$

$

Not available

4

Toro 12-5450

SCREW

$10.99

$

Usually ships in 3-6 days

0

5

Toro 2412-83

CLAMP-CABLE

$

$

Not available

6

Toro 5-4505

BELT-V

$24.99

$

In Stock, only 1 left!

0

7

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

8

Toro 46-5610

See Supercession: 62-3720
(Superseded to 62-3720)

$2.99

$

In Stock, only 1 left!

0

9

Toro 44-1030

DISCONTINUED

$

$

Not available

10

Toro 27-6230

BOLT-WHEEL

$8.99

$

In Stock, only 2 left!

0

11

Toro 11-1419

WHL/GEAR/TIRE PKG

$

$

Not available

12

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

13

Toro 46-6520

PINION GEAR 15T

$27.99

$

In Stock, Qty 6

0

14

Toro 36-5630

See Supercession: 36-5630-03
(Superseded to 36-5630-03)

$

$

Not available

15

Toro 32121-98

See Supercession: 32121-88
(Superseded to 32121-88)

$8.99

$

In Stock, only 1 left!

0

16

Toro 46-6510

DISCONTINUED

$

$

Not available

17

Toro 256-110

Bushing
(Superseded to 47-2890)

$3.99

$

Usually ships in 3-6 days

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

19

Toro 42-3510

PIVOT ARM ASM

$

$

Not available

20

Toro 256-263

See Supercession: 47-2900
(Superseded to 47-2900)

$6.99

$

In Stock, Qty 17

0

21

Toro 23-0380

See Supercession: 36-9040
(Superseded to 36-9040)

$11.99

$

In Stock, only 1 left!

0

22

Toro 32146-6

See Supercession: 3296-6
(Superseded to 3296-6)

$1.99

$

In Stock, Qty 10

0

23

Toro 17-4490

TENSION SPRING

$

$

Not available

24

Toro 44-0460

DISCONTINUED

$

$

Not available
