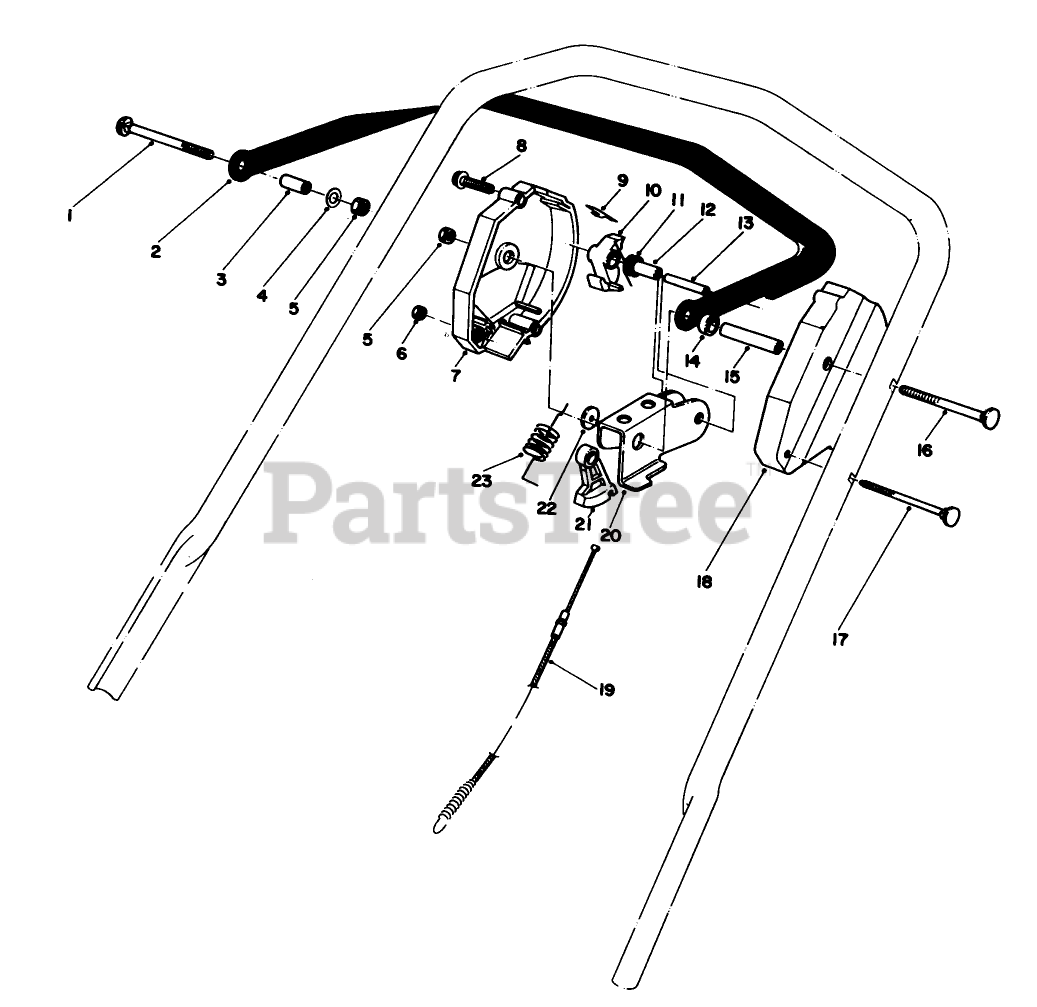

20773 - Toro Walk-Behind Mower (SN: 003000001 - 003999999) (1983) Traction Control Assembly Parts Diagram

Walk-Behind Mower

Traction Control Assembly Parts Diagram

  • Title

1

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

2

Toro 46-5560

DISCONTINUED
(Superseded to 52-7430-03)

$

$

Not available

3

Toro 46-5580

DISCONTINUED

$

$

Not available

4

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

5

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

6

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

7

Toro 46-5450

DISCONTINUED
(Superseded to 12-3429)

$

$

Not available

8

Toro 46-7040

SCREW-HWHTF

$2.99

$

Usually ships in 3-6 days

0

9

Toro 46-5570

LEAF SPRING

$

$

Not available

10

Toro 464530

Clamp-Cable

$

$

Currently unavailable

11

Toro 46-5510

SPRING-TORSION

$

$

Not available

12

Toro 46-5550

SPACER

$

$

Not available

13

Toro 32121-9

PIN-ROLL, SLOTTED

$3.99

$

In Stock, Qty 18

0

14

Toro 256-276

SPACER-NYLON

$2.99

$

Usually ships in 3-6 days

0

15

Toro 46-5590

TUBING-SPACER

$

$

Not available

16

Toro 17-9422

DISCONTINUED

$

$

Not available

17

Toro 46-6431

HANDLE SCREW

$

$

Not available

18

Toro 46-5460

DISCONTINUED

$

$

Not available

19

Toro 46-5470

See Supercession: 83-6600
(Superseded to 83-6600)

$

$

Not available

20

Toro 46-5490

See Supercession: 62-3710
(Superseded to 62-3710)

$

$

Not available

21

Toro 46-5540

LEVER-CABLE

$20.99

$

In Stock, only 2 left!

0

22

Toro 46-5600

PLASTIC WASHER

$4.49

$

Usually ships in 3-6 days

0

23

Toro 46-5500

See Supercession: 65-5990
(Superseded to 65-5990)

$

$

Not available
