20775 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) HANDLE ASSEMBLY Parts Diagram

Walk-Behind Mower

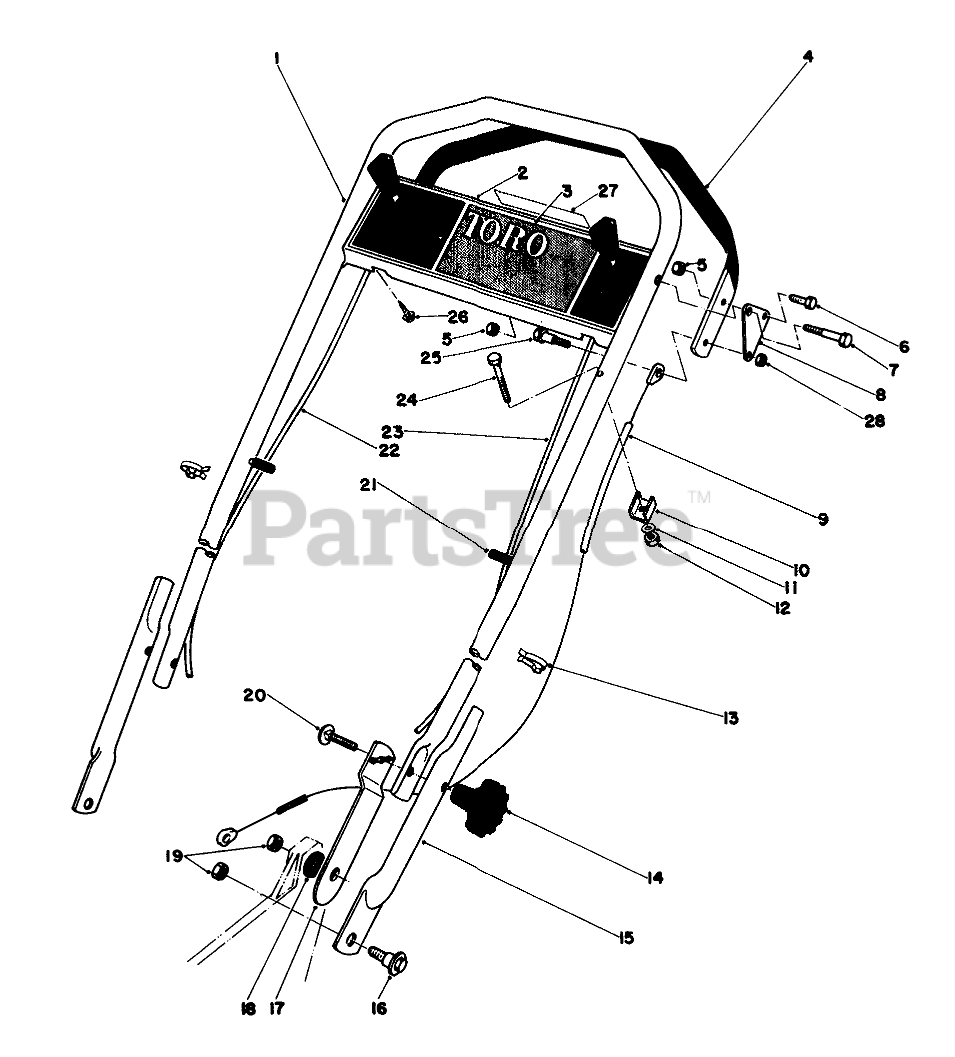

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 404860

Upper Handle

$

$

Currently unavailable

2

Toro 39-6620

Control Plate

$

$

Not available

3

Toro 42-3670

Decal-Control Panel

$

$

Not available

4

Toro 404840

Demand Handle

$

$

Currently unavailable

5

Toro 321524

Nut

$

$

Currently unavailable

6

Toro 321-3

SCREW-HH

$1.49

$

In Stock, only 3 left!

0

7

Toro 36-2250

BOLT-SHOULDER

$13.99

$

Usually ships in 3-6 days

0

8

Toro 404850

Bracket-Demand

$

$

Currently unavailable

9

Toro 29-9502

DEMAND HAND CABLE

$92.99

$

Usually ships in 3-6 days

0

10

Toro 29-9550

CLAMP-CABLE

$

$

Not available

11

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

12

Toro 329642

Nut

$

$

Currently unavailable

13

Toro 218465

Clip

$

$

Currently unavailable

14

Toro 194050

Horn

$

$

Currently unavailable

15

Toro 29-9160

LOWER HANDLE

$

$

Not available

16

Toro 27-7211

SCREW-SHOULDER

$5.49

$

In Stock, only 4 left!

0

17

Toro 36-8080

Handle Latch L.H.
(Superseded to 44-0590)

$37.99

$

Usually ships in 3-6 days

0

Toro 36-8090

Handle Latch R.H.
(Superseded to 44-0590)

Note: Not illustrated

$37.99

$

Usually ships in 3-6 days

0

18

Toro 3-3287

SPACER

$5.49

$

In Stock, only 3 left!

0

19

Toro 32146-5

Nut
(Superseded to 32153-3)

$6.49

$

Usually ships in 3-6 days

0

20

Toro 3230-5

SCREW-CARR

$0.99

$

In Stock, only 3 left!

0

21

Toro 241049

Cap Vinyl

$

$

Not available

22

Toro 42-3920

Ground Speed Control
(Superseded to 42-3922)

$

$

Not available

23

Toro 42-3911

Throttle Control

$

$

Not available

24

Toro 321-9

SCREW-HH

$4.99

$

In Stock, only 2 left!

0

25

Toro 43-7260

SHOULDER BOLT

$16.99

$

Usually ships in 3-6 days

0

26

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

27

Toro 41-8060

Decal-Select-a-Pace

$

$

Not available

28

Toro 32153-4

NUT-HEX, SIDE DEFORM

$0.99

$

Usually ships in 3-6 days

0

Toro 8-9999

Loose Parts

Note: Not illustrated

$

$

Currently unavailable
