20781 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 250000001 - 250999999) (2005) Engine and Blade Assembly Parts Diagram

53cm Super Recycler Walk-Behind Mower

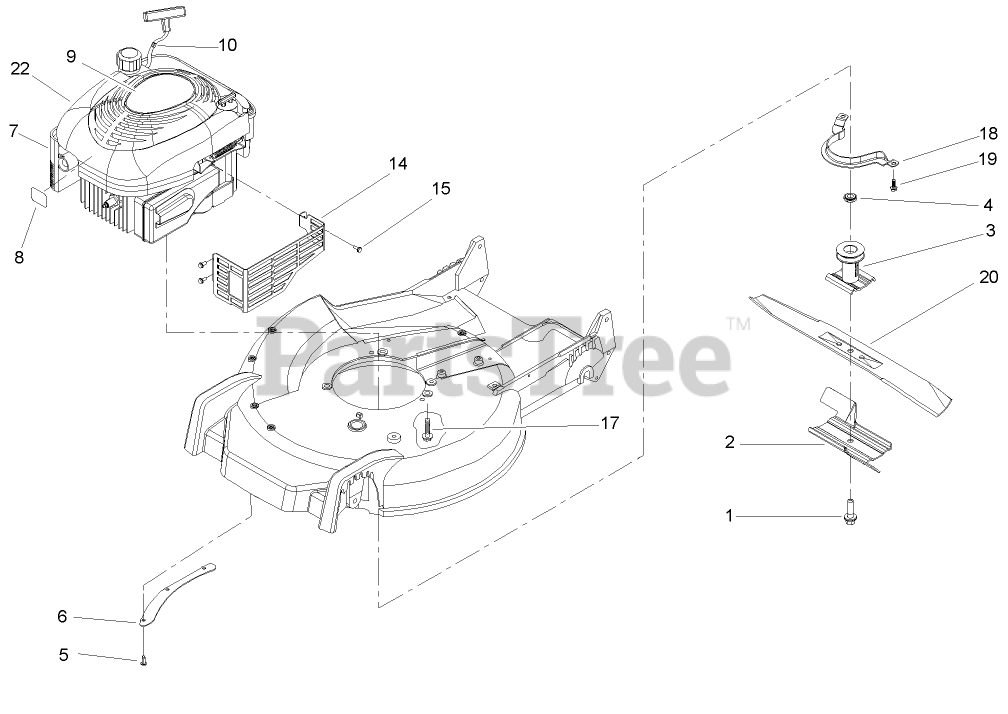

Engine and Blade Assembly Parts Diagram

  • Title

1

Toro 105-8579

See Supercession: 125-2466
(Superseded to 125-2466)

$3.99

$

In Stock, Qty 20+

0

2

Toro 105-6848-03

ACCELERATOR-BLADE

$19.99

$

In Stock, only 1 left!

0

3

Toro 106-3987

DRIVER-BLADE

$35.99

$

In Stock, only 3 left!

0

4

Toro 106-3999

SPACER-DRIVER

$3.99

$

In Stock, Qty 20+

0

5

Toro 63-8590

SCREW

$1.49

$

In Stock, Qty 6

0

6

Toro 105-1316-03

SHEET-LIP

$9.49

$

Usually ships in 3-6 days

0

7

Loose Parts Package

Note: Not serviced separately

$

$

Not available

8

Toro 98-3206

DECAL

$2.49

$

In Stock, only 2 left!

0

9

Toro 107-8922

DECAL

$

$

Not available

10

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

14

Toro 104-7577-03

SHIELD-MUFFLER

$28.99

$

In Stock, only 2 left!

0

15

Toro 32144-1

SCREW-TAPTITE

$3.99

$

In Stock, Qty 19

0

17

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

18

Toro 66-0570-03

BRACKET-GUIDE, BELT

$15.99

$

In Stock, only 1 left!

0

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 11

0

20

Toro 93-4106-03

See Supercession: 133-8183-03
(Superseded to 133-8183-03)

$23.99

$

In Stock, Qty 20+

0

22

Toro 105-8564

SHROUD-QUANTUM

$

$

Not available
