20784 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE AND BLADE ASSEMBLY Parts Diagram

53cm Super Recycler Walk-Behind Mower

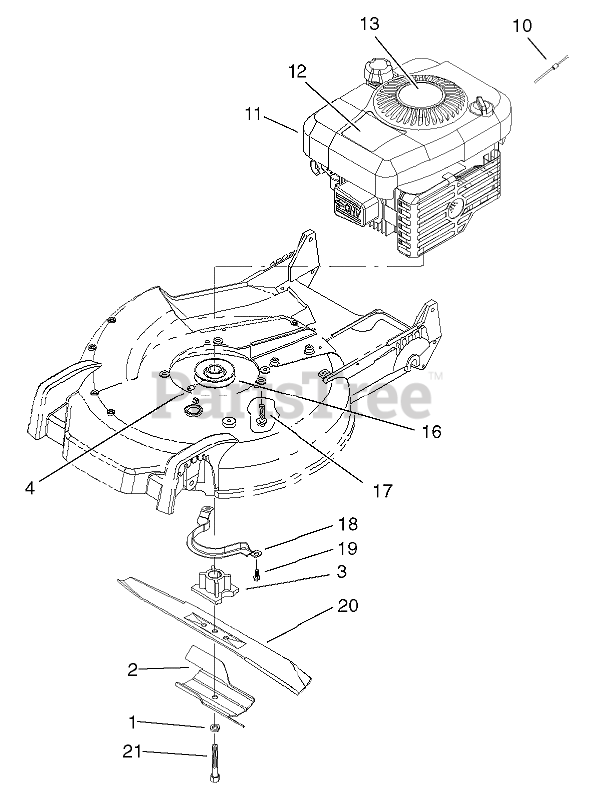

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

2

Toro 94-1608-03

ACCELERATOR-BLADE
(Superseded to 105-6848-03)

$19.99

$

In Stock, only 4 left!

0

3

Toro 104-1007

RETAINER-BLADE

$77.99

$

Usually ships in 3-6 days

0

4

Toro 104-0214

SCREW-SET
(Superseded to 105-8875)

$12.99

$

Usually ships in 3-6 days

0

10

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

11

Engine-B & S Model 122602-0120-E1 (only on: 20783)

Note: Not serviced separately

$

$

Not available

11

Engine-B & S Model 122607-0116-E1 (only on: 20784)

Note: Not serviced separately

$

$

Not available

12

Toro 99-6015

DECAL-RECOIL

$7.49

$

Usually ships in 3-6 days

0

13

Toro 105-8573

Decal-Recoil

$

$

Not available

16

Toro 100-1102

PULLEY ASM

$121.99

$

Usually ships in 3-6 days

0

17

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

18

Toro 99-1526-03

GUIDE-BELT

$

$

Not available

19

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

20

Toro 93-4106-03

BLADE
(Superseded to 133-8183-03)

$23.99

$

In Stock, Qty 20+

0

21

Toro 95-1748

SCREW-BLADE
(Superseded to 105-8629)

$21.99

$

In Stock, only 4 left!

0
