20790 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

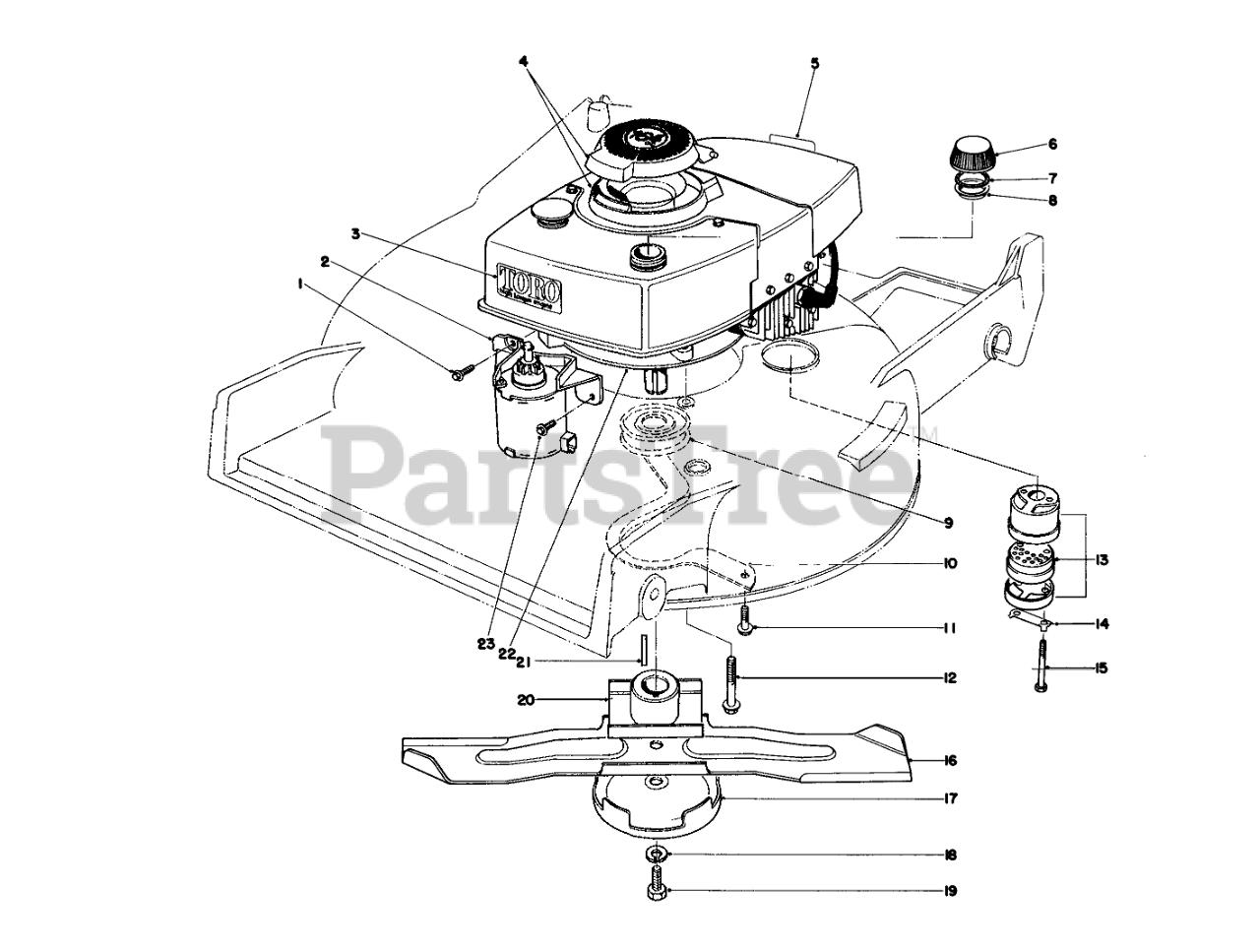

ENGINE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

2

Toro Part# 25-3940

Starter Motor
Usually ships same day

Not available

$

$

3

Toro Part# 23-1260

High Torque
Usually ships same day

Not available

$

$

4

Toro Part# 38-4720

COVER ASM
Usually ships same day

Not available

$

$

5

Toro Part# 37-1580

Decal-Maintenan
Usually ships same day

Not available

$

$

6

Toro Part# 27-7870

Gas Cap (Incl. Ref. #7 & 8)
(Superseded to 42-0682)
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$7.45

0

8

Toro Part# 2210-143

GAS CAP BAFFLE
Usually ships same day

Not available

$

$

9

Toro Part# 21-5580

DRIVER PULLEY
Usually ships same day

Not available

$

$

10

Toro Part# 37-4440

Belt Guide
(Superseded to 39-1840)
Usually ships same day

Not available

$

$

11

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

12

Toro Part# 11-0590

SCREW-HWHTF
(Superseded to 32144-102)
Usually ships in 1 day

$

$2.56

0

13

Toro Part# 5-4769

Muffler Assy. (Incl. Ref. #14&15)
Usually ships in 1 day

$

$44.27

0

14

Toro Part# 3-5094

CLIP - LOCKING
Usually ships in 5 to 8 days

$

$8.17

0

15
Usually ships in 5 to 8 days

$

$5.91

0

16

Toro Part# 26-0880

Blade
(Superseded to 107-4276-03)
Usually ships in 1 day

$

$26.82

0

17

Toro Part# 8-4240

AntiScalp Cup
(Superseded to 80-2770)
Usually ships in 1 day

$

$13.00

0

18

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

19

Toro Part# 23-0080

BLADE SCREW
Usually ships in 5 to 8 days

$

$24.26

0

20

Toro Part# 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)
Usually ships same day

Not available

$

$

21

Toro Part# 27-8590

KEY-SQUARE
Usually ships in 5 to 8 days

$

$4.99

0

22
Usually ships same day

Currently unavailable

$

$

Usually ships in 1 day

$

$2.90

0

Toro Part# 33-2930

Rope-Starter

Note: Not illustrated

Usually ships same day

Not available

$

$
