20790 - Toro Walk-Behind Mower (SN: 009000001 - 009999999) (1979) GEAR CASE ASSEMBLY Parts Diagram

Walk-Behind Mower

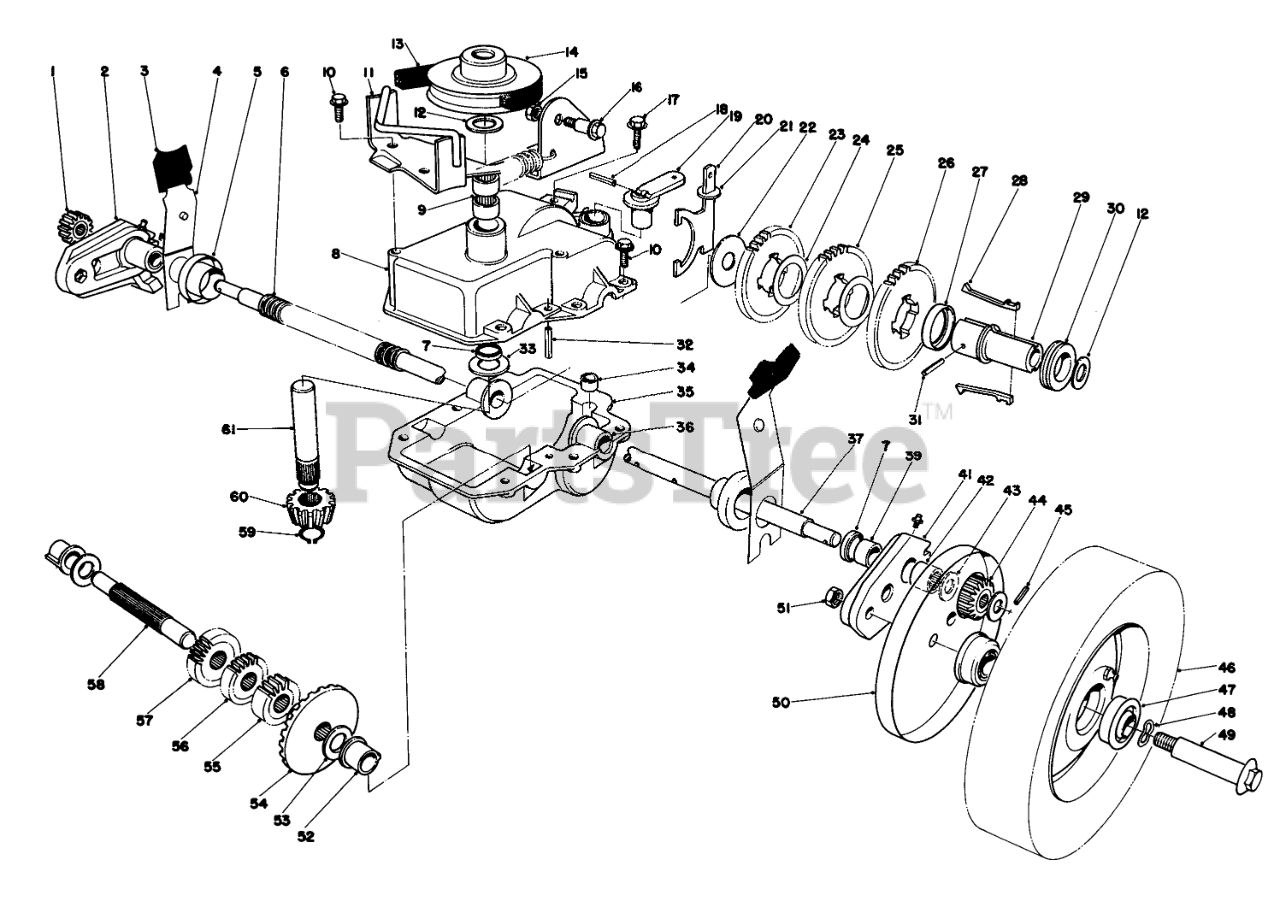

GEAR CASE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 38-3120

Pinion Gear
(Superseded to 39-7740)
Usually ships in 5 to 8 days

$

$124.14

0

2

Toro Part# 29-9590

Pivot Arm R.H. (Incl. Ref. #7, 39 & 42)
(Superseded to 49-7720)
Usually ships same day

Not available

$

$

3
Usually ships in 1 day

$

$4.46

0

4

Toro Part# 29-9540

Spring Arm
(Superseded to 44-1010)
Usually ships in 5 to 8 days

$

$31.77

0

5
Usually ships same day

Currently unavailable

$

$

6

Toro Part# 247922

Cover-Drive Shaft
Usually ships same day

Currently unavailable

$

$

7

Toro Part# 253-140

Seal
(Superseded to 47-6730)
Usually ships in 1 day

$

$8.93

0

8

Toro Part# 29-9360

Case Upper
Usually ships same day

Not available

$

$

9

Toro Part# 252-97

Bearing
(Superseded to 47-7270)
Usually ships in 1 day

$

$24.59

0

10

Toro Part# 11-9760

Screw
(Superseded to 49-2040)
Usually ships in 1 day

$

$1.67

0

11

Toro Part# 38-7210

Belt Guide Bracket
Usually ships same day

Not available

$

$

12

Toro Part# 36-4780

WASHER-PLAIN
Usually ships in 1 day

$

$5.86

0

13
Usually ships in 1 day

$

$19.00

0

14

Part#

Pulley
Usually ships same day

Not available

$

$

15

Toro Part# 32153-4

NUT-HEX, SIDE DEFORM
Usually ships in 5 to 8 days

$

$2.38

0

16

Toro Part# 26-5620

Shoulder Bolt
(Superseded to 43-7260)
Usually ships in 5 to 8 days

$

$13.24

0

17

Toro Part# 3214-11

Screw Thread Forming
Usually ships same day

Currently unavailable

$

$

18
Usually ships in 1 day

$

$1.00

0

19

Toro Part# 29-9560

LEVER-SHIFT
Usually ships in 5 to 8 days

$

$12.89

0

20

Toro Part# 29-9520

Shift Yoke
(Superseded to 60-8870)
Usually ships in 1 day

$

$20.11

0

21

Toro Part# 29-9380

Yoke Washer
Usually ships same day

Not available

$

$

22
Usually ships in 5 to 8 days

$

$10.05

0

23

Toro Part# 29-9250

Gear 38T
(Superseded to 42-4740)
Usually ships in 5 to 8 days

$

$67.07

0

24
Usually ships in 1 day

$

$4.35

0

25

Toro Part# 29-9260

Gear
(Superseded to 14-2009)
Usually ships same day

Not available

$

$

26

Toro Part# 29-9270

Gear
(Superseded to 29-9271)
Usually ships in 5 to 8 days

$

$70.42

0

27

Toro Part# 29-9490

Key Retainer
Usually ships same day

Not available

$

$

28

Toro Part# 29-9330

KEY-SHIFT
Usually ships in 1 day

$

$22.89

0

29
Usually ships same day

Not available

$

$

30

Toro Part# 29-9340

COLLAR-SHIFT
Usually ships in 5 to 8 days

$

$32.40

0

31

Toro Part# 32121-95

COIL PIN
(Superseded to 32121-108)
Usually ships in 5 to 8 days

$

$5.52

0

32

Toro Part# 32121-100

ROLL PIN 3/16 X 1 IN
Usually ships in 5 to 8 days

$

$1.39

0

33

Toro Part# 256-196

Thrust Washer
(Superseded to 47-2910)
Usually ships in 5 to 8 days

$

$10.98

0

34

Toro Part# 29-9570

BUSHING-YOKE
Usually ships in 5 to 8 days

$

$8.93

0

35

Toro Part# 29-9410

LOWER GEAR CASE CAST
Usually ships same day

Not available

$

$

36

Toro Part# 29-9310

Bushing
(Superseded to 47-5220)
Usually ships same day

Not available

$

$

37

Toro Part# 29-9390

OUTPUT SHAFT
Usually ships in 5 to 8 days

$

$111.31

0

39

Toro Part# 256-110

Bushing
(Superseded to 47-2890)
Usually ships in 1 day

$

$3.34

0

41

Toro Part# 29-9640

Pivot Arm L.H. (Incl. Ref. #7, 39 & 42)
(Superseded to 49-7710)
Usually ships same day

Not available

$

$

42

Toro Part# 252-96

Needle Baring
(Superseded to 117-3500)
Usually ships in 1 day

$

$4.46

0

43
Usually ships in 5 to 8 days

$

$6.61

0

44

Toro Part# 36-8100

Pinion Gear
(Superseded to 39-7730)
Usually ships in 5 to 8 days

$

$124.14

0

45

Toro Part# 32121-98

Pin
(Superseded to 32121-88)
Usually ships in 1 day

$

$6.81

0

46

Toro Part# 38-2930

WHEEL ASM
Usually ships same day

Not available

$

$

47

Toro Part# 251-180

BEARING-BALL
(Superseded to 116-7257)
Usually ships in 1 day

$

$14.52

0

48

Toro Part# 3290-393

SPRING WASHER
Usually ships in 5 to 8 days

$

$3.92

0

49

Toro Part# 26-4430

WHEEL BOLT
Usually ships in 5 to 8 days

$

$42.40

0

50

Toro Part# 36-5630

Cover-Wheel
(Superseded to 36-5630-03)
Usually ships in 5 to 8 days

$

$25.47

0

51

Toro Part# 32146-6

Nut
(Superseded to 3296-6)
Usually ships in 1 day

$

$1.44

0

52

Toro Part# 29-9350

Botching Shaft
(Superseded to 52-5410)
Usually ships in 5 to 8 days

$

$7.38

0

53

Toro Part# 36-4790

WASHER-THRUST
Usually ships in 5 to 8 days

$

$2.24

0

54

Toro Part# 29-9210

Bevel Gear
Usually ships same day

Not available

$

$

Usually ships same day

Currently unavailable

$

$

Usually ships same day

Not available

$

$

57
Usually ships same day

Currently unavailable

$

$

58

Toro Part# 29-9290

Short Shaft
Usually ships same day

Not available

$

$

59

Toro Part# 32151-57

RING-RETAINING
Usually ships in 5 to 8 days

$

$2.94

0

60

Toro Part# 29-9200

Pinion Bevel
Usually ships same day

Not available

$

$

61

Toro Part# 8-5659

Input Shaft & Pulley Assy. (Incl. Ref. #14)
Usually ships same day

Not available

$

$

Toro Part# 29-9400

Gear Case Assembly Complete

Note: Not illustrated

Usually ships same day

Not available

$

$
