20791 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) GASKET ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

53cm Super Recycler Walk-Behind Mower

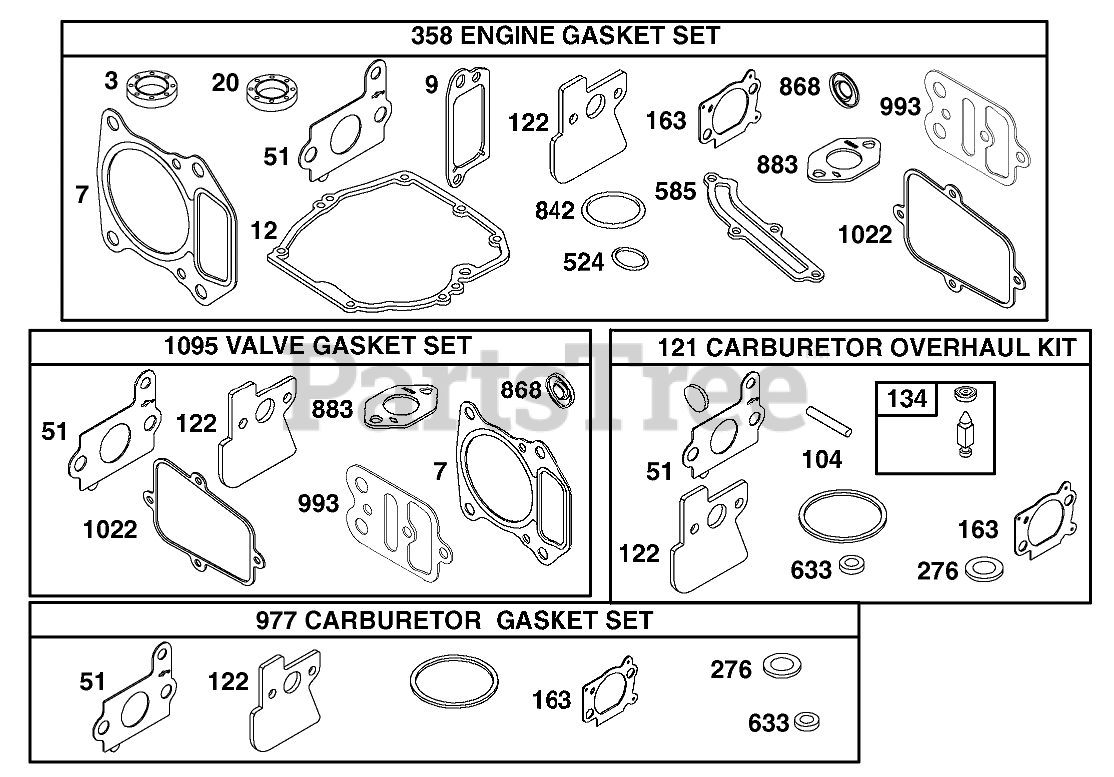

GASKET ASSEMBLY ENGINE GTS 200 (ONLY ON: 20791) Parts Diagram

  • Title

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Engine Gasket Set-Ref. 358.

$24.99

$

Usually ships in 3-6 days

0

1022

Toro 99-0907

GASKET-COVER, ROCKER

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$24.99

$

Usually ships in 3-6 days

0

104

Toro 99-0970

PIN-HINGE, FLOAT

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

1095

Toro 100-5033

VALVE OVERHAUL GASKET SET
(Superseded to 117-7558)

$

$

Not available

12

Toro 99-0953

GASKET-CRANKCASE

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

121

Toro 100-5036

CARBURETOR KIT

$22.99

$

In Stock, Qty 5

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Engine Gasket Set-Ref. 358.

$46.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$46.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Carburetor Gasket Set-Ref. 977.

$46.99

$

Usually ships in 3-6 days

0

122

Toro 99-0978

SPACER-CARBURETOR

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$46.99

$

Usually ships in 3-6 days

0

134

Toro 77-8110

VALVE-FLOAT

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$24.99

$

Usually ships in 3-6 days

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$4.49

$

In Stock, Qty 17

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Carburetor Gasket Set-Ref. 977.

$4.49

$

In Stock, Qty 17

0

163

Toro 99-0976

GASKET-CLEANER, AIR

Note: Included in Engine Gasket Set-Ref. 358.

$4.49

$

In Stock, Qty 17

0

20

Toro 99-0955

Oil Seal
(Superseded to 77-7570)

Note: Included in Engine Gasket Set-Ref. 358.

$24.99

$

In Stock, only 2 left!

0

276

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

Note: Included in Carburetor Gasket Set-Ref. 977.

$7.49

$

In Stock, Qty 20+

0

276

Toro 100-5038

WASHER-SEALING
(Superseded to 77-8210)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$7.49

$

In Stock, Qty 20+

0

3

Toro 99-0912

Oil Seal
(Superseded to 77-9060)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

358

Toro 100-5035

ENGINE OVERHAUL GASKET SET

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Not available

51

Toro 99-0968

GASKET-INTAKE

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$

$

Not available

524

Toro 99-0916

O-RING

Note: Included in Engine Gasket Set-Ref. 358.

$9.49

$

Usually ships in 3-6 days

0

585

Toro 99-0923

GASKET-BREATHER

Note: Included in Engine Gasket Set-Ref. 358.

$14.99

$

Usually ships in 3-6 days

0

633

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Not available

633

Toro 100-5037

SEAL-DUST

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

7

Toro 99-0930

GASKET-HEAD, CYLINDER

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$

$

Not available

842

Toro 99-0916

O-RING

Note: Included in Engine Gasket Set-Ref. 358.

$9.49

$

Usually ships in 3-6 days

0

868

Toro 99-0946

SEAL-VALVE

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

868

Toro 99-0946

SEAL-VALVE

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$

$

Not available

883

Toro 99-0947

GASKET-EXHAUST

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Not available

9

Toro 99-0913

GASKET-BREATHER

Note: Included in Engine Gasket Set-Ref. 358.

$4.99

$

Usually ships in 3-6 days

0

977

Toro 100-5034

GASKET SET-CARBURETOR

$

$

Not available

993

Toro 99-0948

PLATE-GASKET

Note: Included in Engine Gasket Set-Ref. 358.

$15.99

$

Usually ships in 3-6 days

0

993

Toro 99-0948

PLATE-GASKET

Note: Included in Valve Overhaul Gasket Set-Ref. 1095.

$15.99

$

Usually ships in 3-6 days

0
