20796 - Toro 53cm Super Recycler Walk-Behind Mower (SN: 280000001 - 280999999) (2008) Governor Assembly Briggs and Stratton 122607-0208-B1 Parts Diagram

53cm Super Recycler Walk-Behind Mower

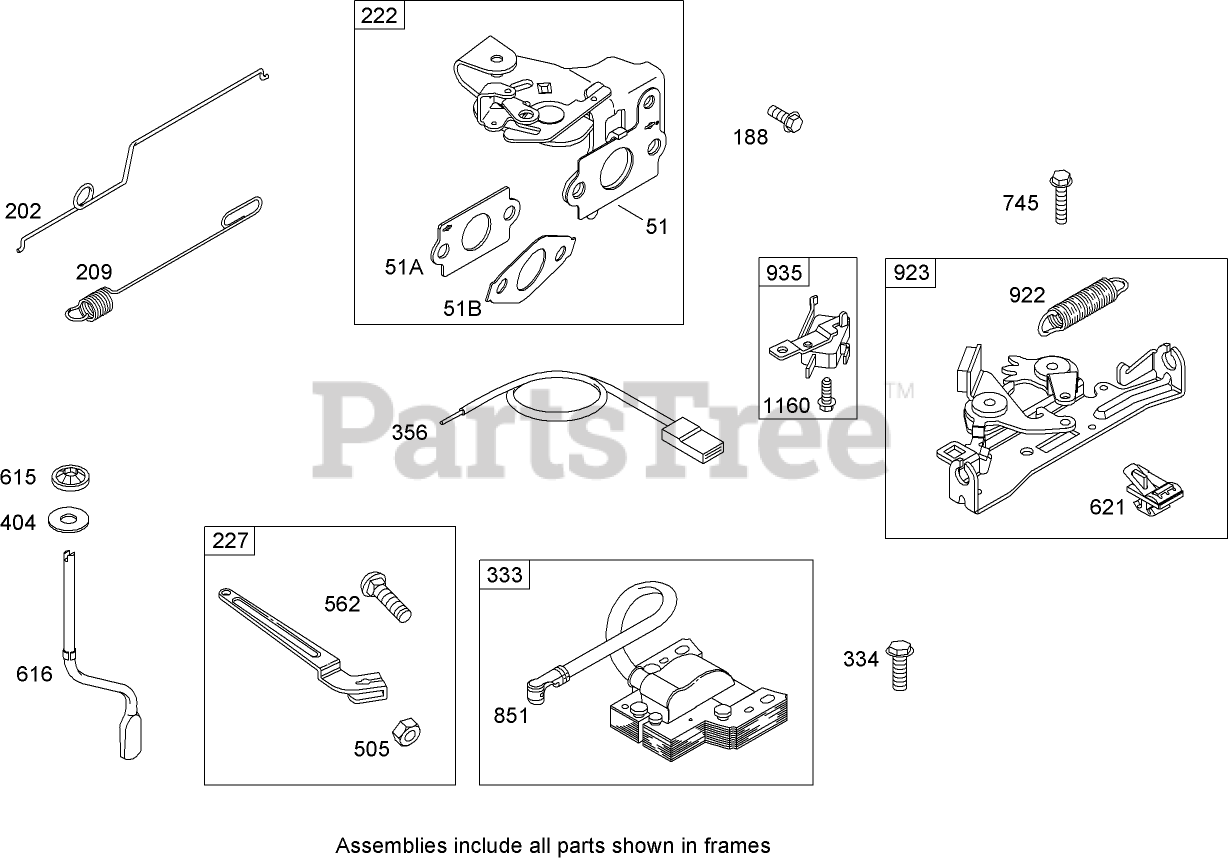

Governor Assembly Briggs and Stratton 122607-0208-B1 Parts Diagram

  • Title
51

Toro 692668

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

51

Toro 692668

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51

Toro 692668

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

51

Toro 692668

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

51A

Toro 692799

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

51B

Toro 692555

Gasket-Intake

Note: Included in Valve Gasket Set (Ref. No. 1095)

$

$

Currently unavailable

51B

Toro 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Currently unavailable

51B

Toro 692555

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

51B

Toro 692555

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$

$

Currently unavailable

188

Toro 691127

Screw (Rocker Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

202

Toro 691303

Link?Governor, Mechanical

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

209

Toro 791156

Spring-Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

222

Toro 792404

Bracket-Control

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

227

Toro 690783

Lever-Control, Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

333

Toro 802574

Armature-Magneto

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

334

Toro 691061

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

356

Toro 692390

Wire-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

404

Toro 690272

Washer

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

505

Toro 691251

Nut

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

562

Toro 691119

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

615

Toro 690340

Retainer-Shaft, Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

616

Toro 698801

Crank-Governor

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

621

Toro 692310

Switch-Stop

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

745

Toro 691648

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

851

Toro 493880s

Terminal-Spark Plug

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

922

Toro 691831

Spring-Brake

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

923

Toro 691994

Brake ASM

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

935

Toro 499421

Switch-Interlock

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1160

Toro 691627

Screw

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
