208 E (31AS2T7G711) - Troy-Bilt Squall 21" Snow Thrower (2017) Engine Drive Parts Diagram

Squall 21" Snow Thrower

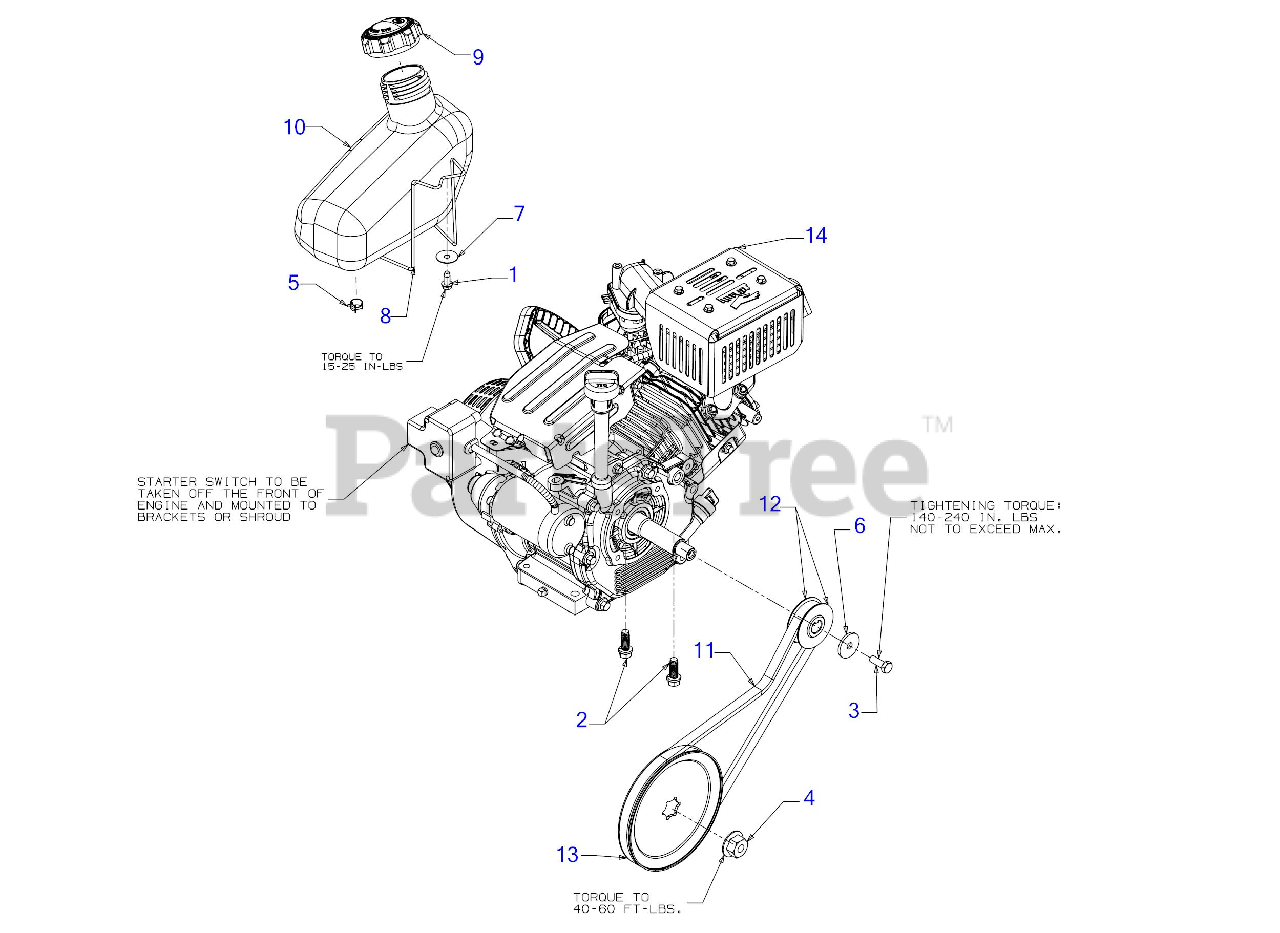

Engine Drive Parts Diagram

  • Title

1

Troy-Bilt 710-04065

SCREW 1/4-10:.625

$5.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0654A

SCREW 3/8-16 x 1

$3.99

$

In Stock, only 4 left!

0

3

Troy-Bilt 710-1245B

SCREW 5/16-24 x .875 GR5

$7.99

$

In Stock, only 4 left!

0

4

Troy-Bilt 912-0702

FLANGE NUT W/HUB

$17.99

$

In Stock, only 1 left!

0

5

Troy-Bilt 726-0205

HOSE CLAMP 1/20

$3.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 736-0343

WASHER-5/16 x 1.25X 1.27

$4.49

$

In Stock, Qty 19

0

7

Troy-Bilt 736-3092

FLAT WASHER

$3.99

$

In Stock, Qty 13

0

8

Troy-Bilt 747-05513

SUPPORT WIRE

$10.99

$

In Stock, only 1 left!

0

9

Troy-Bilt 751-10487C

FUEL CAP

$15.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 751-14001

FUEL TANK (2 QT)
(Superseded to 751-14001A)

$41.99

$

In Stock, only 1 left!

0

11

Troy-Bilt 954-04050A

V-BELT .500 x 35.

$27.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 956-0416B

HALF PULLEY

$10.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 756-04443

AUGER PULLEY

$21.99

$

In Stock, only 4 left!

0

14

Troy-Bilt 952Z270-JU

208CC COMPLETE ENGINE
(Superseded to 952Z270-JUA)

$571.99

$

Usually ships in 3-6 days

0

14

Troy-Bilt 951-10292

SPARK PLUG
(Superseded to 951-10292A)

Note: (Not Shown)

$6.99

$

In Stock, Qty 20+

0

14

MTD 951-05462

SHORT BLOCK 208CC

Note: (Not Shown)

$511.99

$

Usually ships in 3-6 days

0
