20801 BC - Toro 48cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) Handle Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

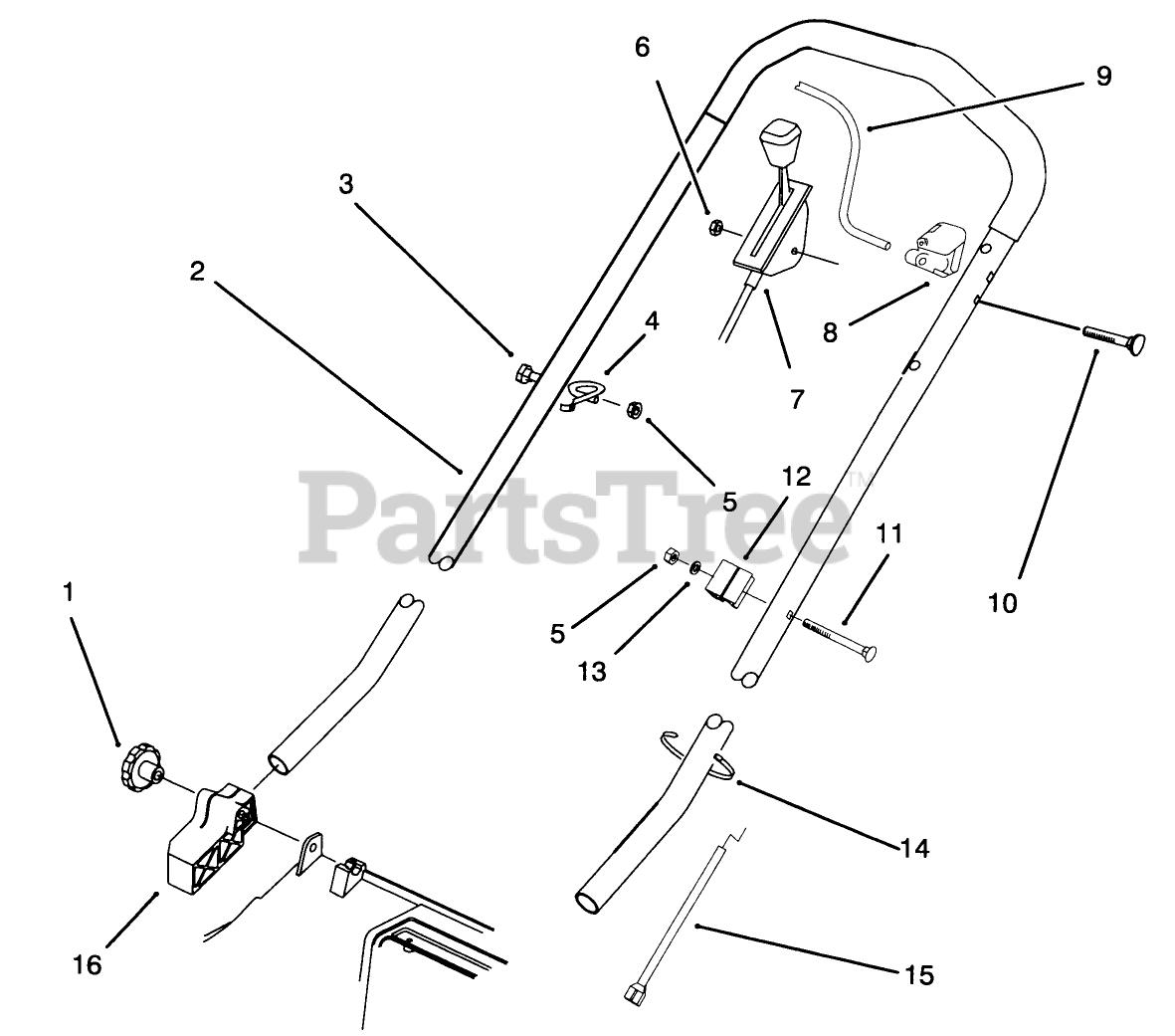

Handle Assembly Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$18.99

$

Usually ships in 3-6 days

0

2

Toro 71-9024

HANDLE (DIPPED)

$

$

Not available

3

Toro 46-6435

See Supercession: 321-13
(Superseded to 321-13)

$4.99

$

In Stock, Qty 6

0

4

Toro 46-8081

GUIDE-ROPE

$26.99

$

Usually ships in 3-6 days

0

5

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

6

Toro 3296-56

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

7

Toro 93-1118

CONTROL - THROTTLE

$134.99

$

Usually ships in 3-6 days

0

8

Toro 92-5412

See Supercession: 107-0757
(Superseded to 107-0757)

$4.99

$

In Stock, Qty 20+

0

9

Toro 93-0336

DISCONTINUED

$

$

Not available

10

Toro 46-6430

SCREW-HANDLE

$13.99

$

Usually ships in 3-6 days

0

11

Toro 46-6432

SCREW-HANDLE

$15.99

$

Usually ships in 3-6 days

0

12

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

13

Toro 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 15

0

14

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 9

0

15

Toro 93-1116

CABLE - BRAKE

$74.99

$

Usually ships in 3-6 days

0

16

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available
