20803 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) Engine Briggs Stratton Model 12f802-1767-E1 4 Parts Diagram

48cm Recycler Walk-Behind Mower

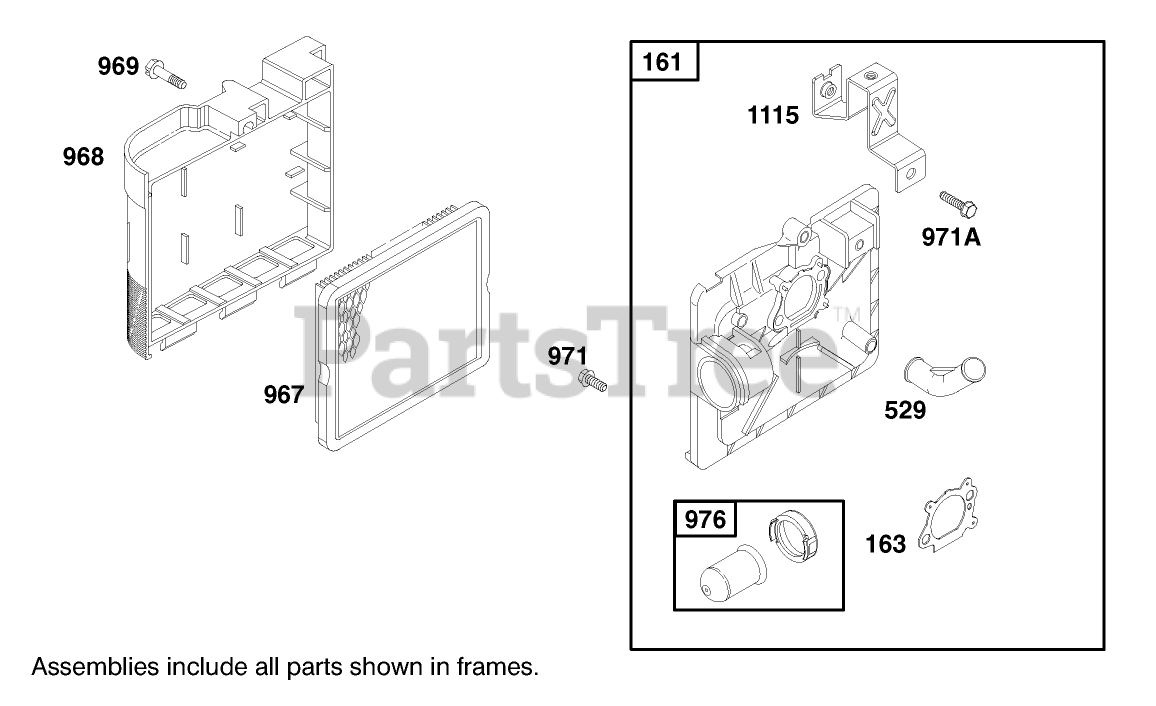

Engine Briggs Stratton Model 12f802-1767-E1 4 Parts Diagram

  • Title
161

Toro 496116

Base-Primer, Air Cleaner

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Gasket Set-Part No. 497316.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-Part No. 498261.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Kit-Part No. 498260.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

529

Toro 281299

Grommet

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

967

Toro 491588

Filter-Air Cleaner, Cartridge

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

968

Toro 281340

Air Cleaner Cover

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

969

Toro 94872

Screw(A/C Cover)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

971

Toro 94873

Screw-Hex.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

971A

Toro 94749

Screw-Hex.

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

976

Toro 496115

CarburetorPrimer

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

1115

Toro 224815

Strap-Bracket

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
