20803 - Toro 48cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) Deck Suspension Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

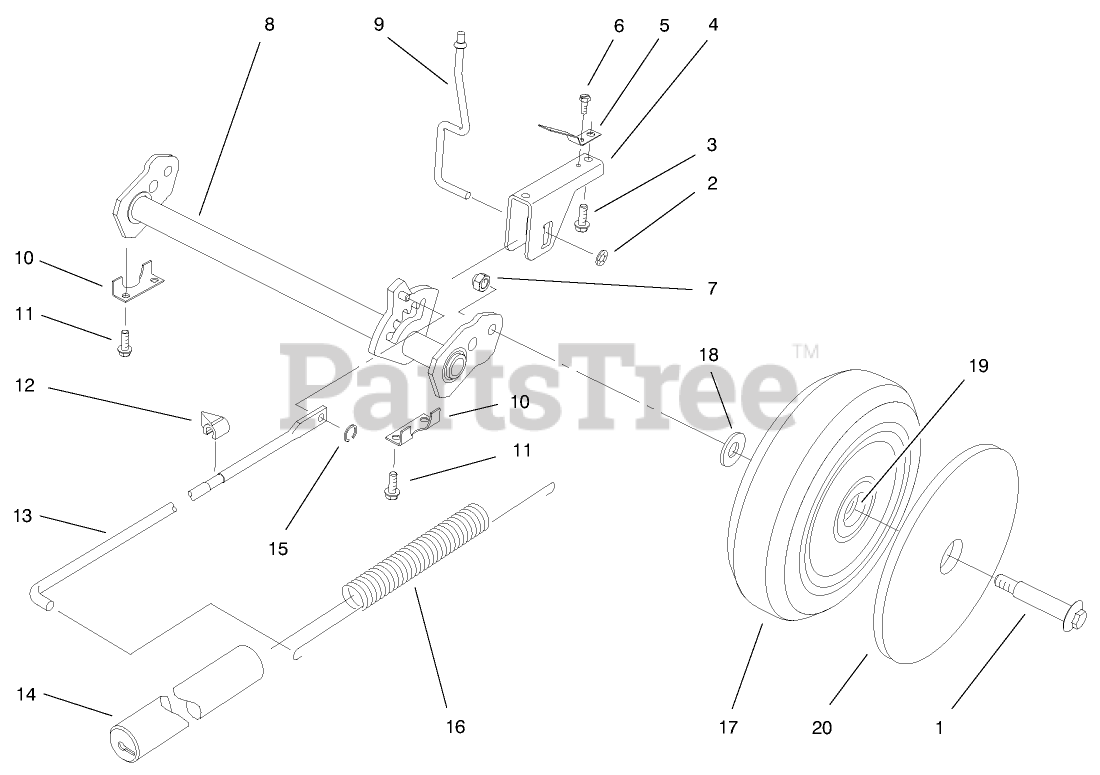

Deck Suspension Assembly Parts Diagram

  • Title

1

Toro 92-1057

BOLT-SHOULDER

$3.99

$

In Stock, Qty 20+

0

2

Toro 32112-13

PUSHNUT

$2.49

$

Usually ships in 3-6 days

0

3

Toro 63-8590

SCREW

$1.49

$

In Stock, Qty 6

0

4

Toro 71-8080

SADDLE - HOC

$

$

Not available

5

Toro 71-8060

DISCONTINUED

$

$

Not available

6

Toro 32144-31

SCREW 8 - 32 X 250

$

$

Not available

7

Toro 603773

LOCKNUT

$2.99

$

In Stock, Qty 15

0

8

Toro 71-7800

PIVOT ARM REAR WA

$327.99

$

Usually ships in 3-6 days

0

9

Toro 71-7840

TRIGGER ROD

$

$

Not available

10

Toro 71-7770

DISCONTINUED

$

$

Not available

11

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

12

Toro 71-7980

INDICATOR-HEIGHT OF CUT

$10.99

$

Usually ships in 3-6 days

0

13

Toro 71-7970

LINK ROD

$

$

Not available

14

Toro 71-8450

COVER-SPRING

$

$

Not available

15

Toro 32151-93

GRIP RING

$0.99

$

Usually ships in 3-6 days

0

16

Toro 71-7740

SPRING-COUNTERBALANCE

$

$

Not available

17

Toro 92-9592

WHEEL ASM

$63.99

$

In Stock, only 4 left!

0

18

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 10

0

19

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

20

Toro 92-7663

See Supercession: 100-6351
(Superseded to 100-6351)

$24.99

$

Usually ships in 3-6 days

0
