20803 - Toro 48cm Recycler Walk-Behind Mower (SN: 099000001 - 099999999) (1999) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

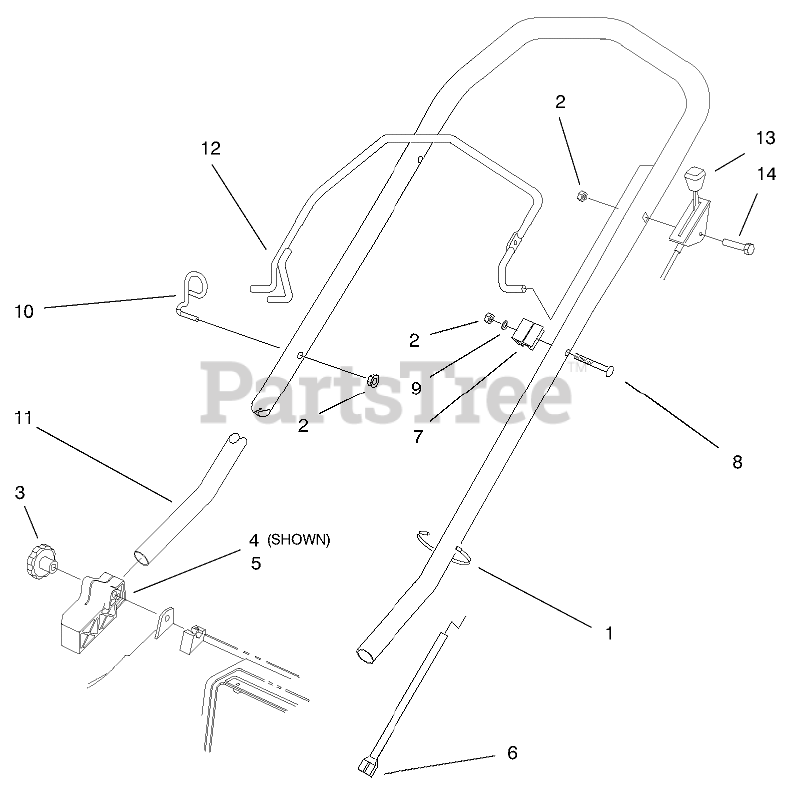

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 7

0

2

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 20+

0

3

Toro 19-4050

KNOB

$18.99

$

In Stock, only 3 left!

0

4

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

5

Toro 71-8090

MOUNT-HANDLE, LH

$

$

Not available

6

Toro 93-1116

CABLE - BRAKE

$72.99

$

Usually ships in 3-6 days

0

7

Toro 92-7729

ANCHOR-CABLE, UPPER

$5.49

$

In Stock, Qty 20+

0

8

Toro 95-4453

SCREW

$3.99

$

In Stock, Qty 20+

0

9

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Toro 95-4457

GUIDE-ROPE
(Superseded to 86-9671)

$4.99

$

In Stock, Qty 20+

0

11

Toro 94-4375

HANDLE

$

$

Not available

12

Toro 95-4454

Bail-Brake
(Superseded to 95-4454-03)

$

$

Not available

13

Toro 93-1118

CONTROL - THROTTLE

$129.99

$

Usually ships in 3-6 days

0

14

Toro 321-48

SCREW-HH

$2.49

$

In Stock, only 2 left!

0
