20804 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

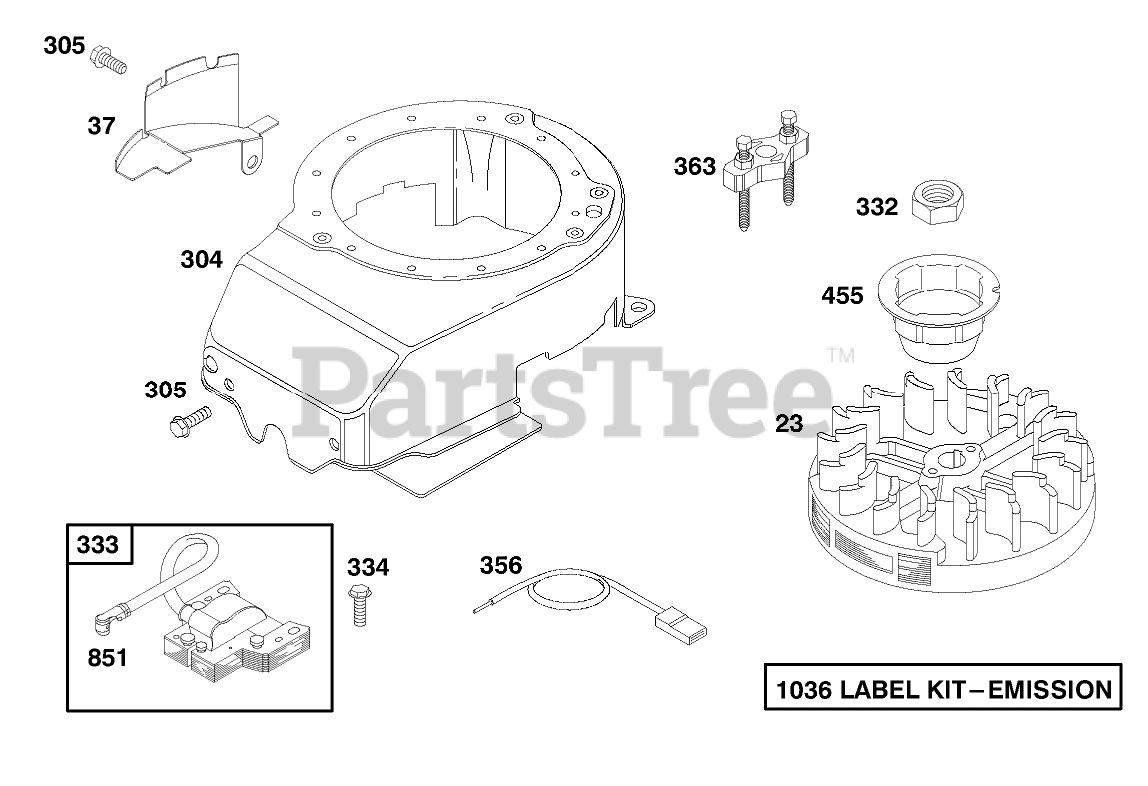

ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

  • Title
23

Briggs & Stratton Part# 492177

Flywheel
(Superseded to 691987)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$101.73

0

37

Briggs & Stratton Part# 224511

Flywheel Guard
(Superseded to 793756)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$8.49

0

304

Briggs & Stratton Part# 493293

Housing-Blower
(Superseded to 795071)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$79.37

0

305

Briggs & Stratton Part# 94744

Screw-Hex
(Superseded to 691108)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.01

0

332

Briggs & Stratton Part# 94877

Nut-Flywheel
(Superseded to 690662)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.80

0

333

Briggs & Stratton Part# 802574

Armature-Magneto
(Superseded to 590454)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$55.33

0

334

Briggs & Stratton Part# 94731

Screw-Sem

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

356

Briggs & Stratton Part# 497833

Wire-Stop
(Superseded to 692390)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$9.05

0

363

Briggs & Stratton Part# 19069

Puller-Flywheel

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$19.35

0

455

Briggs & Stratton Part# 225121

Cup-Starter
(Superseded to 695161)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 6 to 12 days

$

$29.06

0

851

Briggs & Stratton Part# 493880

Terminal-Spark Plug
(Superseded to 493880S)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.01

0

1036

Briggs & Stratton Part# 499341

Emissions Label

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.25

0
