20804 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

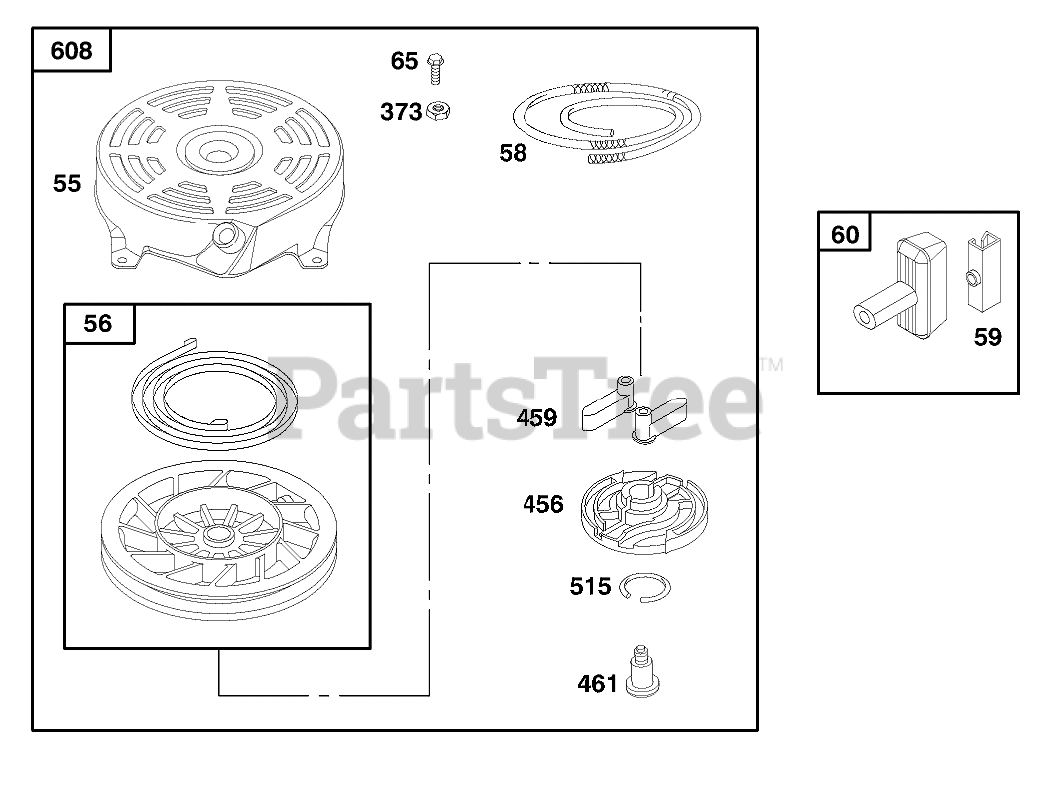

ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

  • Title
55

Briggs & Stratton Part# 497440

Rewind StarterHousing
(Superseded to 691421)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$50.86

0

56

Briggs & Stratton Part# 498144

Pulley and Spring ASM

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$18.32

0

58

Briggs & Stratton Part# 280399

Rope?Starter (Cut to Required Length)
(Superseded to 280399S)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$5.80

0

59

Briggs & Stratton Part# 224467

Insert-Grip

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

60

Briggs & Stratton Part# 493926

Grip-Starter Rope

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

65

Briggs & Stratton Part# 94904

Screw-Hex
(Superseded to 690837)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$2.78

0

373

Briggs & Stratton Part# 94908

Nut-Hex.
(Superseded to 690800)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.34

0

456

Briggs & Stratton Part# 281503

Retainer-Spring
(Superseded to 692299)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$4.57

0

459

Briggs & Stratton Part# 281505

Ratchet-Pawl
(Superseded to 281505S)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.46

0

461

Briggs & Stratton Part# 94943

Pin-Starter
(Superseded to 691696)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$10.27

0

515

Briggs & Stratton Part# 263073

Spring-Torsion
(Superseded to 691855)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.68

0

608

Briggs & Stratton Part# 497680

Starter-Rewind

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$55.67

0
