20804 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

48cm Recycler Walk-Behind Mower

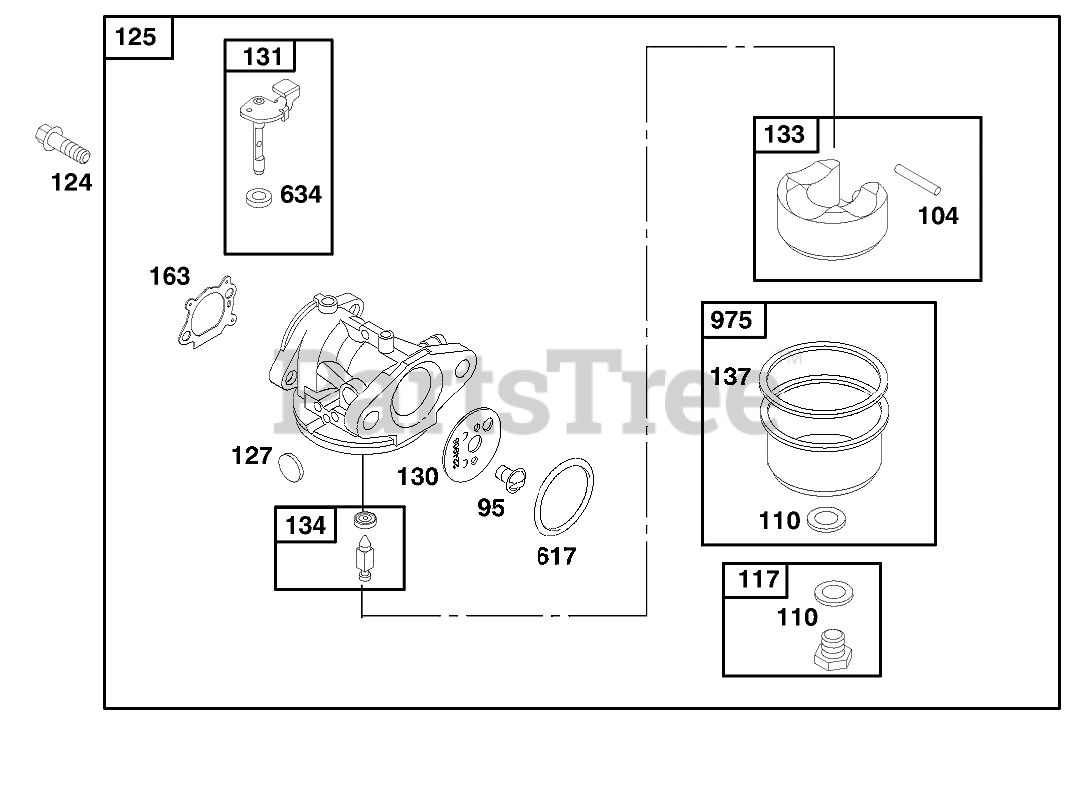

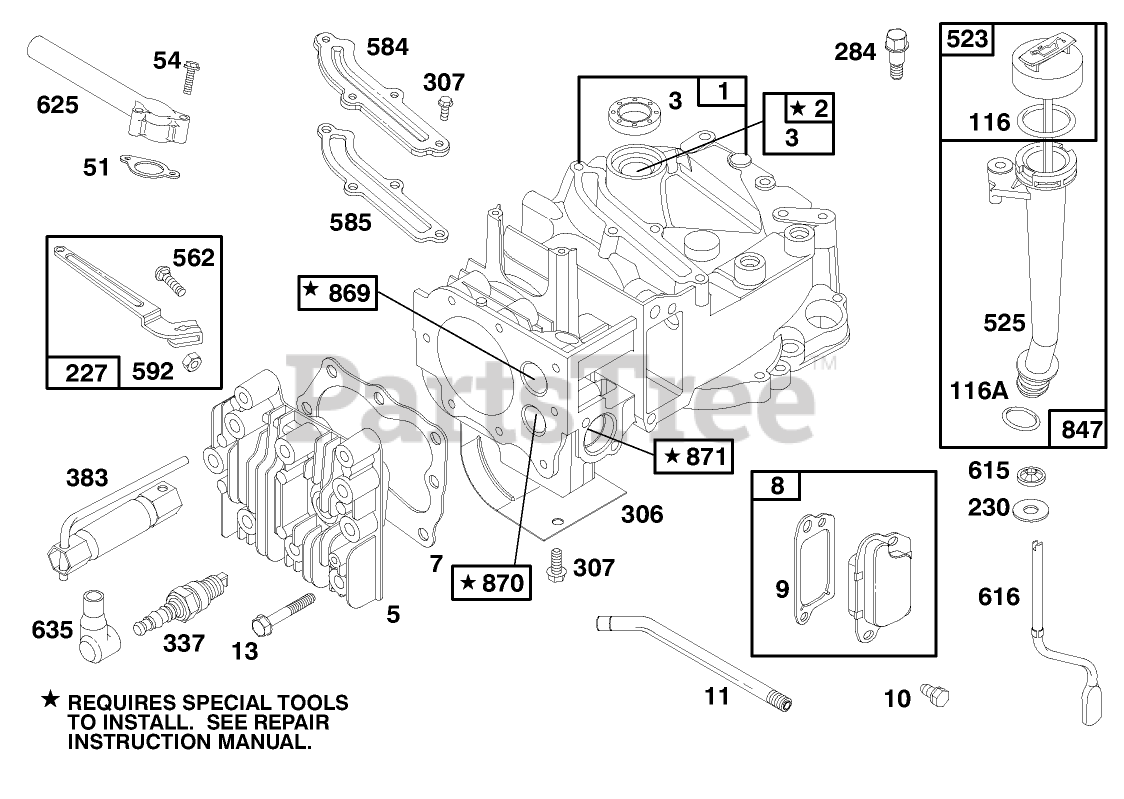

ENGINE BRIGGS & STRATTON MODEL 12F802-1767-E1 Parts Diagram

  • Title
95

Briggs & Stratton Part# 94098

Valve-Choke
(Superseded to 691636)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.12

0

104

Briggs & Stratton Part# 231371

Spring
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.12

0

104

Briggs & Stratton Part# 231371

Spring
(Superseded to 797622)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$3.12

0

110

Part#

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

110

Part#

Washer-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships same day

Not available

$

$

110

Part#

Washer-Bowl (Sold in Kit Only).

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

117

Briggs & Stratton Part# 494870

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

124

Briggs & Stratton Part# 94840

Screw-Hex

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

125

Briggs & Stratton Part# 498170

Carburetor
(Superseded to 799868)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$61.48

0

127

Part#

Plug-Welch (Sold in Kit Only).

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

127

Part#

Plug-Welch (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

130

Briggs & Stratton Part# 224908

Throttle Valve
(Superseded to 691203)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$7.26

0

131

Briggs & Stratton Part# 493267

Shaft and Lever

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$13.07

0

133

Briggs & Stratton Part# 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$9.27

0

134

Briggs & Stratton Part# 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$6.47

0

134

Briggs & Stratton Part# 398188

Needle and Seat Kit

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$6.47

0

137

Part#

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships same day

Not available

$

$

137

Part#

Gasket-Bowl (Sold in Kit Only).

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

137

Part#

Gasket-Bowl (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 497316.

Usually ships in 1 day

$

$3.46

0

163

Briggs & Stratton Part# 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$3.46

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships in 1 day

$

$2.90

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships in 1 day

$

$2.90

0

617

Briggs & Stratton Part# 270344

Seal-O Ring
(Superseded to 270344S)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$2.90

0

634

Part#

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Gasket Set-Part No. 498261.

Usually ships same day

Not available

$

$

634

Part#

Washer-Foam (Sold in Kit Only).

Note: Included in Carburetor Kit-Part No. 498260.

Usually ships same day

Not available

$

$

634

Part#

Washer-Foam (Sold in Kit Only).

Note: Obtain parts from www.briggsandstratton.com

Usually ships same day

Not available

$

$

975

Briggs & Stratton Part# 493640

Bowl-Float
(Superseded to 796611)

Note: Obtain parts from www.briggsandstratton.com

Usually ships in 1 day

$

$6.59

0
