20804 - Toro 48cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

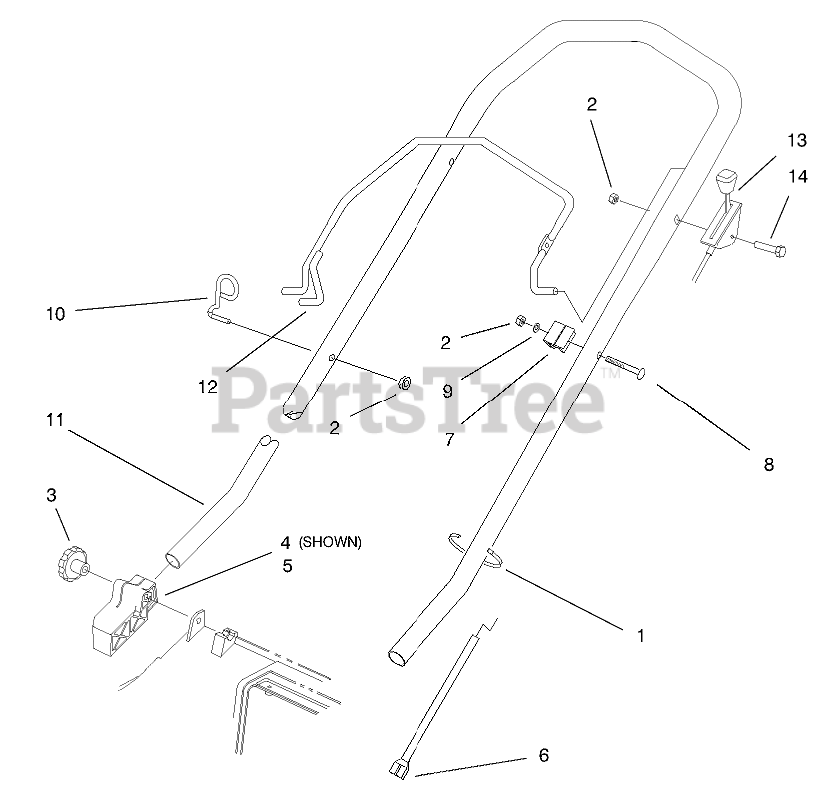

HANDLE ASSEMBLY Parts Diagram

  • Title
1
Usually ships in 1 day

$

$0.77

0

2

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

Usually ships in 1 day

$

$13.41

0

4

Toro Part# 71-8100

MOUNT-HANDLE, RH
Usually ships same day

Not available

$

$

5

Toro Part# 71-8090

MOUNT-HANDLE, LH
Usually ships same day

Not available

$

$

6

Toro Part# 93-1116

CABLE - BRAKE
Usually ships in 5 to 8 days

$

$46.36

0

7

Toro Part# 92-7729

ANCHOR-CABLE, UPPER
Usually ships in 1 day

$

$3.78

0

Usually ships in 1 day

$

$2.23

0

9

Toro Part# 3256-1

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

10

Toro Part# 95-4457

GUIDE-ROPE
(Superseded to 86-9671)
Usually ships in 1 day

$

$4.24

0

11
Usually ships in 5 to 8 days

$

$120.77

0

12

Toro Part# 95-5924

Bail-Brake
(Superseded to 95-4454-03)
Usually ships same day

Not available

$

$

13

Toro Part# 93-1118

CONTROL - THROTTLE
Usually ships in 5 to 8 days

$

$82.43

0

14
Usually ships in 1 day

$

$1.39

0
