20805 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Blade Assembly Parts Diagram

48cm Recycler Walk-Behind Mower

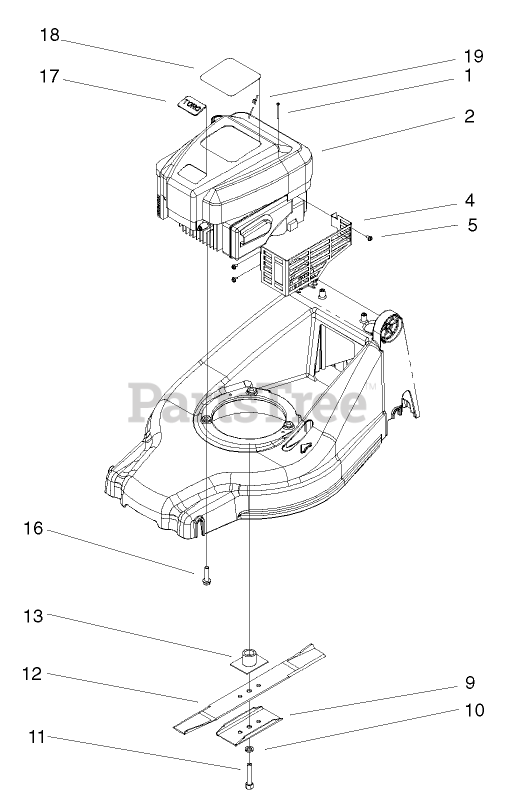

Engine Blade Assembly Parts Diagram

  • Title

1

Toro 32144-121

See Supercession: 32144-88
(Superseded to 32144-88)

$1.99

$

In Stock, only 2 left!

0

2

Toro 93-0243

SHROUD-ENGINE

$64.99

$

Usually ships in 3-6 days

0

4

Toro 82-8550-03

See Supercession: 104-7577-03
(Superseded to 104-7577-03)

$28.99

$

In Stock, only 2 left!

0

5

Toro 32144-73

See Supercession: 104-2065
(Superseded to 104-2065)

$0.99

$

In Stock, Qty 20+

0

9

Toro 80-0510-03

STIFFENER-BLADE

$18.99

$

In Stock, Qty 5

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 2 left!

0

11

Toro 100-4368

BOLT-BLADE

$21.99

$

Usually ships in 3-6 days

0

12

Toro 71-9260-03

BLADE-48 CM

$

$

Not available

13

Toro 99-6467

BLADE DRIVER ASM

$43.99

$

Usually ships in 3-6 days

0

16

Toro 32144-102

SCREW-HWH

$3.99

$

In Stock, Qty 5

0

17

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

18

Toro 100-5952

DECAL-ENGINE

$

$

Not available

18

Toro 100-9122

DECAL-ENGINE

$45.99

$

Usually ships in 3-6 days

0

19

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

20

Toro 99-0905

DISCONTINUED

Note: Not illustrated

$

$

Not available

21

Toro 32144-4

SCREW-HWH

Note: Not illustrated

$1.49

$

In Stock, Qty 20+

0
