20805 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 12f802-1769-B1 3 Parts Diagram

48cm Recycler Walk-Behind Mower

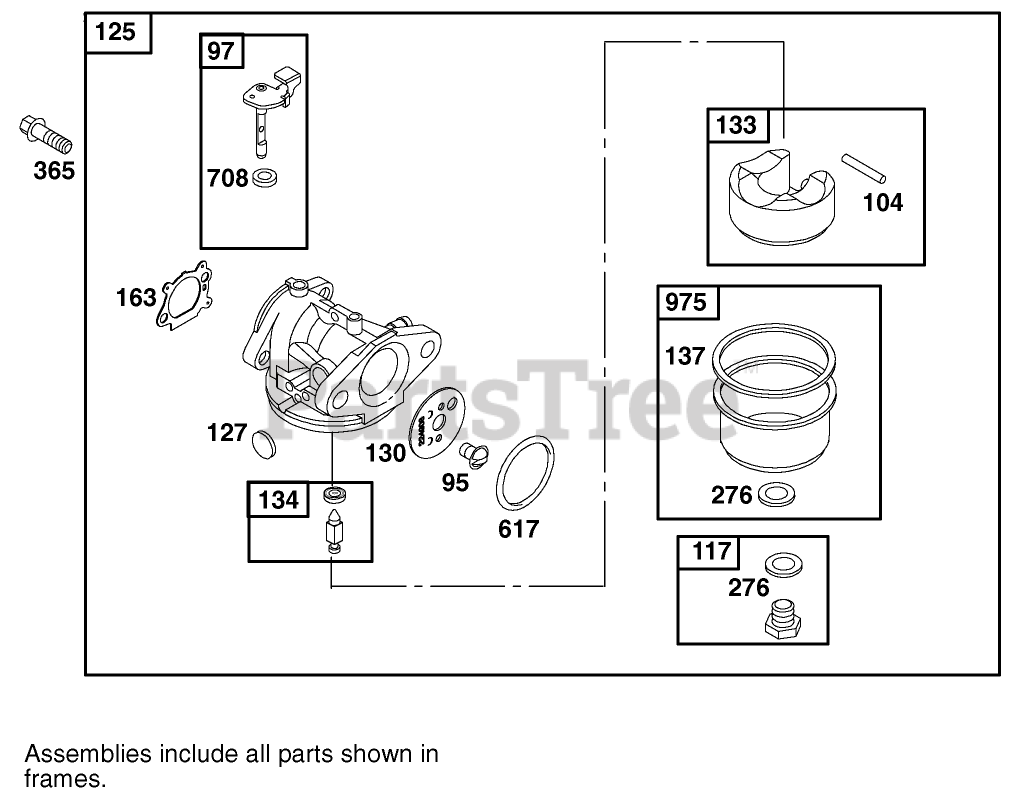

Engine Briggs Stratton Model 12f802-1769-B1 3 Parts Diagram

  • Title

95

Toro 94098

Valve-Choke

$

$

Currently unavailable

97

Toro 493267

Shaft and Lever

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

117

Toro 494870

Jet-Main

$

$

Currently unavailable

125

Toro 498170

Carburetor

$

$

Currently unavailable

127

Toro 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

130

Toro 691203

Valve?Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

137

Toro 280492

Float Bowl Gasket

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

137

Toro 280492

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

365

Toro 94840

Screw-Hex

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
