20805 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) HOC & WHEEL ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

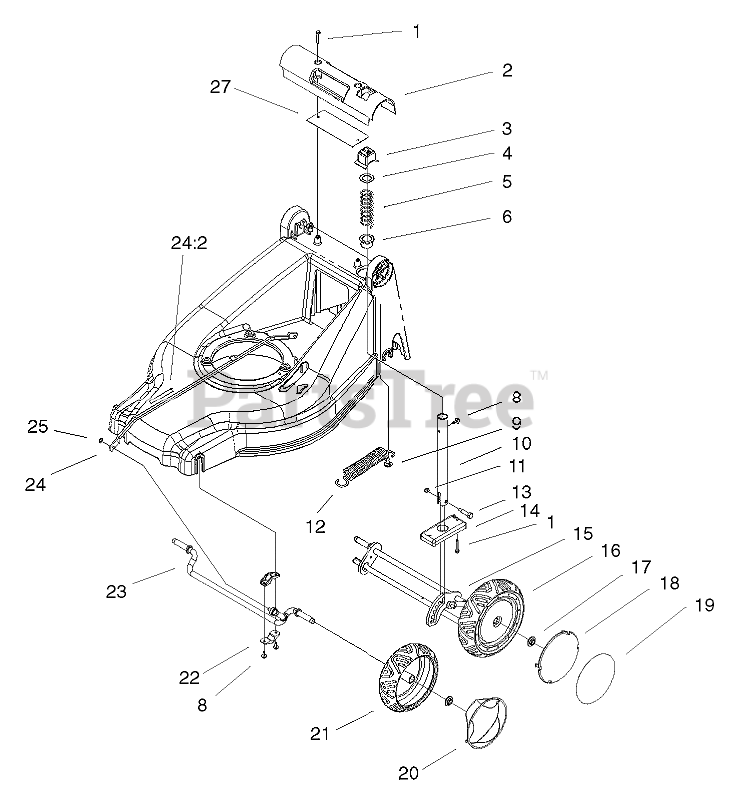

HOC & WHEEL ASSEMBLY Parts Diagram

  • Title
1
Usually ships in 5 to 8 days

$

$1.99

0

2

Toro Part# 99-6487

HANDLE-DECK
Usually ships same day

Not available

$

$

3

Toro Part# 99-6480

BUTTON-HOC
Usually ships in 5 to 8 days

$

$13.22

0

4

Toro Part# 88-7540

WASHER-BACKUP
Usually ships in 5 to 8 days

$

$2.56

0

5

Toro Part# 99-6481

SPRING-COMPRESSION, HOC
Usually ships in 5 to 8 days

$

$8.68

0

6

Toro Part# 99-6483

BUSHING-HOC
Usually ships in 5 to 8 days

$

$8.27

0

8

Toro Part# 32144-1

SCREW-TAPTITE
Usually ships in 1 day

$

$2.23

0

9

Toro Part# 92-9698

SCREW-SHOULDER
Usually ships in 1 day

$

$4.45

0

10
Usually ships in 5 to 8 days

$

$42.31

0

11

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

12

Toro Part# 100-4384

SPRING-EXTENSION, HOC
Usually ships in 5 to 8 days

$

$21.64

0

13

Toro Part# 99-6459

BOLT-SHOULDER
Usually ships in 5 to 8 days

$

$3.88

0

14

Toro Part# 99-6460

PLATE-SUPPORT, HOC
Usually ships in 5 to 8 days

$

$17.46

0

15

Toro Part# 99-6478

REAR AXLE ASM
(Superseded to 117-9381)
Usually ships same day

Not available

$

$

16
Usually ships in 5 to 8 days

$

$23.23

0

17

Toro Part# 100-4370

NUT-LOCK, FLANGED
(Superseded to 108-8890)
Usually ships in 5 to 8 days

$

$6.28

0

18

Toro Part# 100-4366

COVER-WHEEL, SMART
Usually ships same day

Not available

$

$

19

Toro Part# 100-9114

DECAL-SMART WHEEL
Usually ships in 5 to 8 days

$

$8.01

0

20

Toro Part# 95-6543

COVER-WHEEL
Usually ships in 5 to 8 days

$

$2.76

0

21

Toro Part# 99-6470

WHEEL ASM
Usually ships same day

Not available

$

$

22

Toro Part# 100-1500

MOUNT-AXLE, FRONT
Usually ships in 5 to 8 days

$

$5.32

0

23

Toro Part# 99-6464

Axle-Front ASM
(Superseded to 104-7562)
Usually ships same day

Not available

$

$

24
Usually ships in 5 to 8 days

$

$45.04

0

24:2
Usually ships same day

Not available

$

$

Usually ships in 5 to 8 days

$

$1.99

0

27

Toro Part# 100-4383-03

COVER-HANDLE
Usually ships in 5 to 8 days

$

$7.03

0
