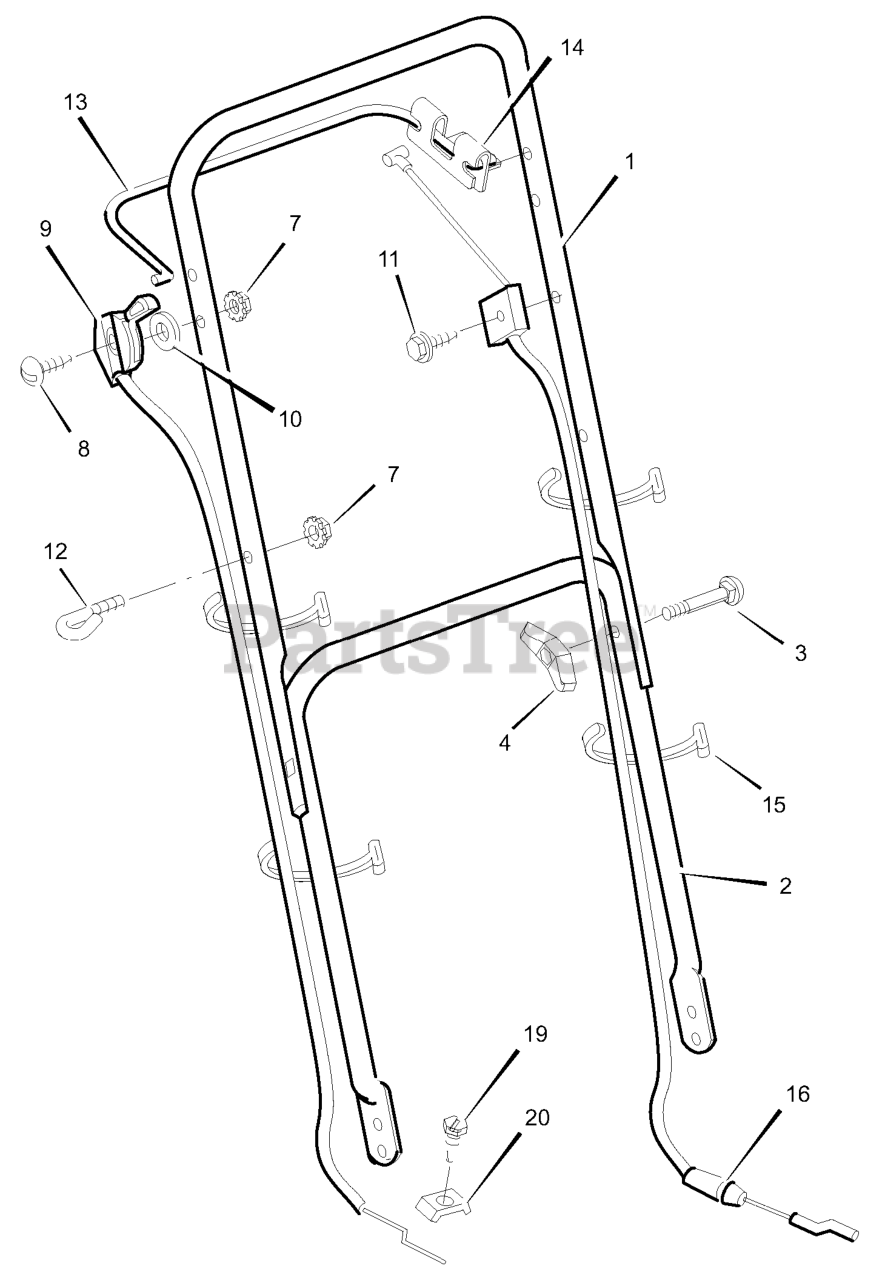

20805x51A - Murray 20" Walk-Behind Mower (1997) Handle Assembly Parts Diagram

20" Walk-Behind Mower

Handle Assembly Parts Diagram

  • Title

1

Murray 071359E701

Handle, Upper (Black)

$

$

Currently unavailable

2

Murray 071345E701

Handle, Lower (Black)

$

$

Currently unavailable

3

Murray 002X77MA

BOLT, CRG .31-18 X 2

$3.99

$

In Stock, Qty 6

0

4

Murray 071294

Wing Knob, 5/16-18
(Superseded to 703065)

$6.99

$

In Stock, Qty 20+

0

7

Murray 15X116MA

NUT.25-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 03X144

Screw

$3.99

$

Usually ships in 2-12 days

0

9

Murray 071180MA

CABLE
(Superseded to 071177MA)

$40.99

$

Usually ships in 2-12 days

0

10

Murray 17X188

WASHER ARDS

$1.99

$

Usually ships in 2-12 days

0

11

Murray 26X220MA

SCREW

$3.49

$

Usually ships in 2-12 days

0

12

Murray 043956MA

GUIDE-ROPE

$5.99

$

Usually ships in 2-12 days

0

13

Murray 071149

Engine Stop Lever

$

$

Currently unavailable

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

TIE,STRAP-REMOVABLE, CONTAINS 10 PCS

$4.49

$

In Stock, only 1 left!

0

16

Murray 043828MA

S-CBL-S 39.00 22P C&

$16.99

$

In Stock, only 1 left!

0

19

Murray 26X268MA

SCREW #10 32 NFX 62

$3.99

$

Usually ships in 2-12 days

0

20

Murray 042294

Clamp, Throttle

$

$

Not available
