20805x51A - Murray 20" Walk-Behind Mower (1997) Mower Housing Assembly Parts Diagram

20" Walk-Behind Mower

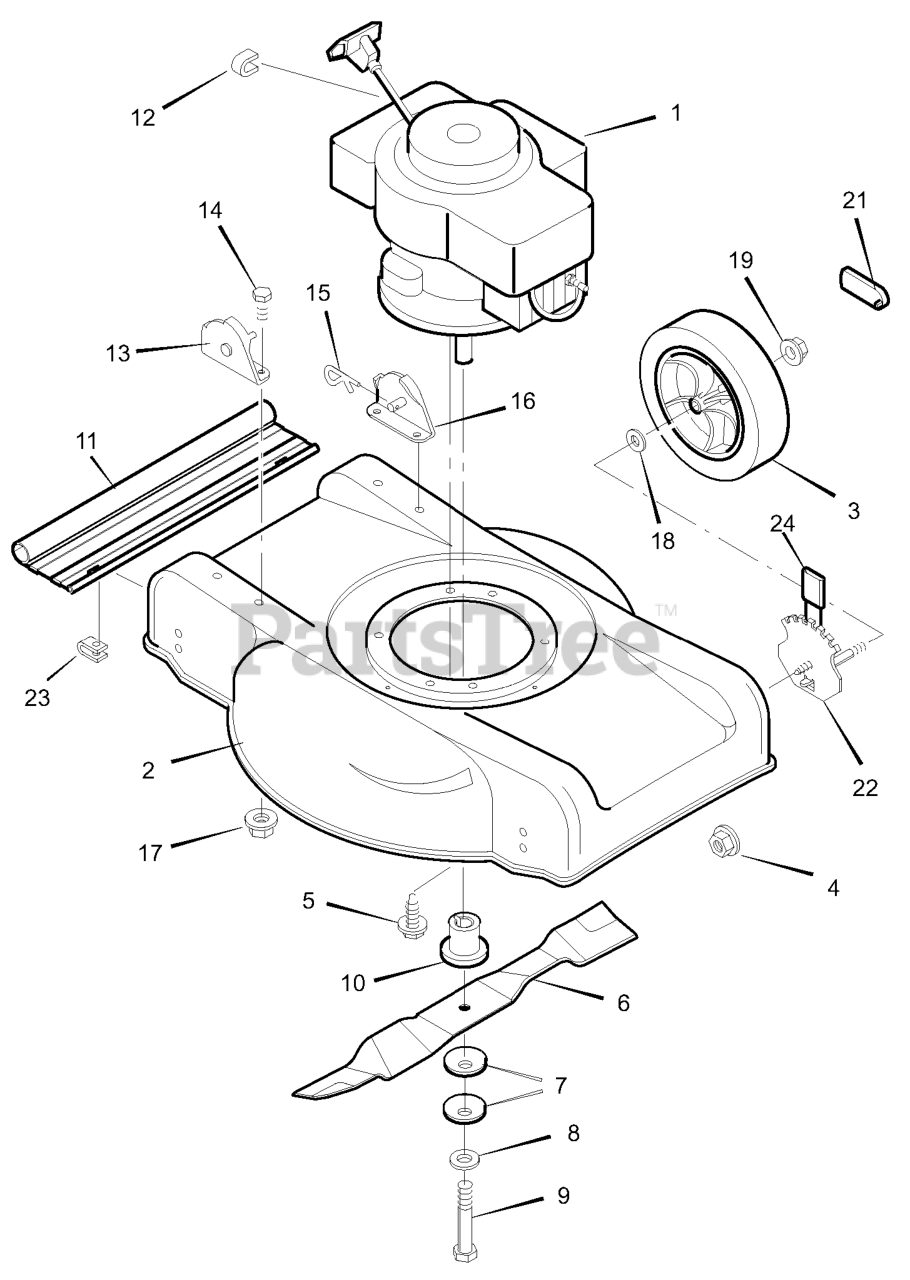

Mower Housing Assembly Parts Diagram

  • Title

1

UNKNOWN

$

$

Not available

2

Murray 070137

Housing, For Folding Handle

$

$

Currently unavailable

3

Murray 043724MA

WHEEL & TIRE ASSEMBLY, White, 8"
(Superseded to 071134MA)

$34.99

$

Usually ships in 2-12 days

0

4

Murray 015X68MA

NUT.38-16 FLANGELOCK
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

5

Murray 0025X6MA

SCREW, TRI .38-16 X

$5.49

$

Usually ships in 2-12 days

0

6

Murray 071548E701MA

SINGLE BLADE

$29.99

$

Usually ships in 2-12 days

0

7

Murray 17X137MA

WASHER.39-2.2 11G FL

$5.49

$

Usually ships in 2-12 days

0

8

Murray 17X124MA

WASHER.40.81 16G FLT

$4.49

$

Usually ships in 2-12 days

0

9

Murray 01X142MA

BOLT-HEX.37-24X1.50 P

$8.49

$

In Stock, Qty 7

0

10

Murray 071059MA

BLADE ADAPTER MULCH

$

$

Not available

11

Murray 071527

Deflector, Rear

$

$

Currently unavailable

12

Murray 042189MA

CLAMP-ROPE STOP

$3.99

$

Usually ships in 2-12 days

0

13

Murray 42712E701

Bracket, Right Handle

$

$

Currently unavailable

14

Murray 001X38MA

BOLT,HEX .25 20X0.62

$4.49

$

In Stock, Qty 20+

0

15

Murray 031X10MA

PIN-HAIR .38D-.062T

$3.49

$

Usually ships in 2-12 days

0

16

Murray 42713E701

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 015X82MA

NUT,FLANGELOCK.25-20

$3.49

$

Usually ships in 2-12 days

0

18

Murray 0020X3MA

WASHER,SPRING .52X.99

$4.49

$

In Stock, Qty 9

0

19

Murray 015X84MA

NUT, CENTERLOCK .38-
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Murray 020107MA

HUB CAP-SM. BLK. PLA

$4.49

$

Usually ships in 2-12 days

0

21

Murray 043847MA

HUBCAP 8X2 BARBB GRAY

$4.49

$

Usually ships in 2-12 days

0

22

Murray 401025MA

HGT ADJ 20/21/22 STD

$72.99

$

Usually ships in 2-12 days

0

23

Murray 042743MA

GUARD, RETAINER REAR

$5.99

$

Usually ships in 2-12 days

0

24

Murray 043394MA

GRIP-VINYL-75X1.25

$

$

Not available
