20806 B - Toro 48cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

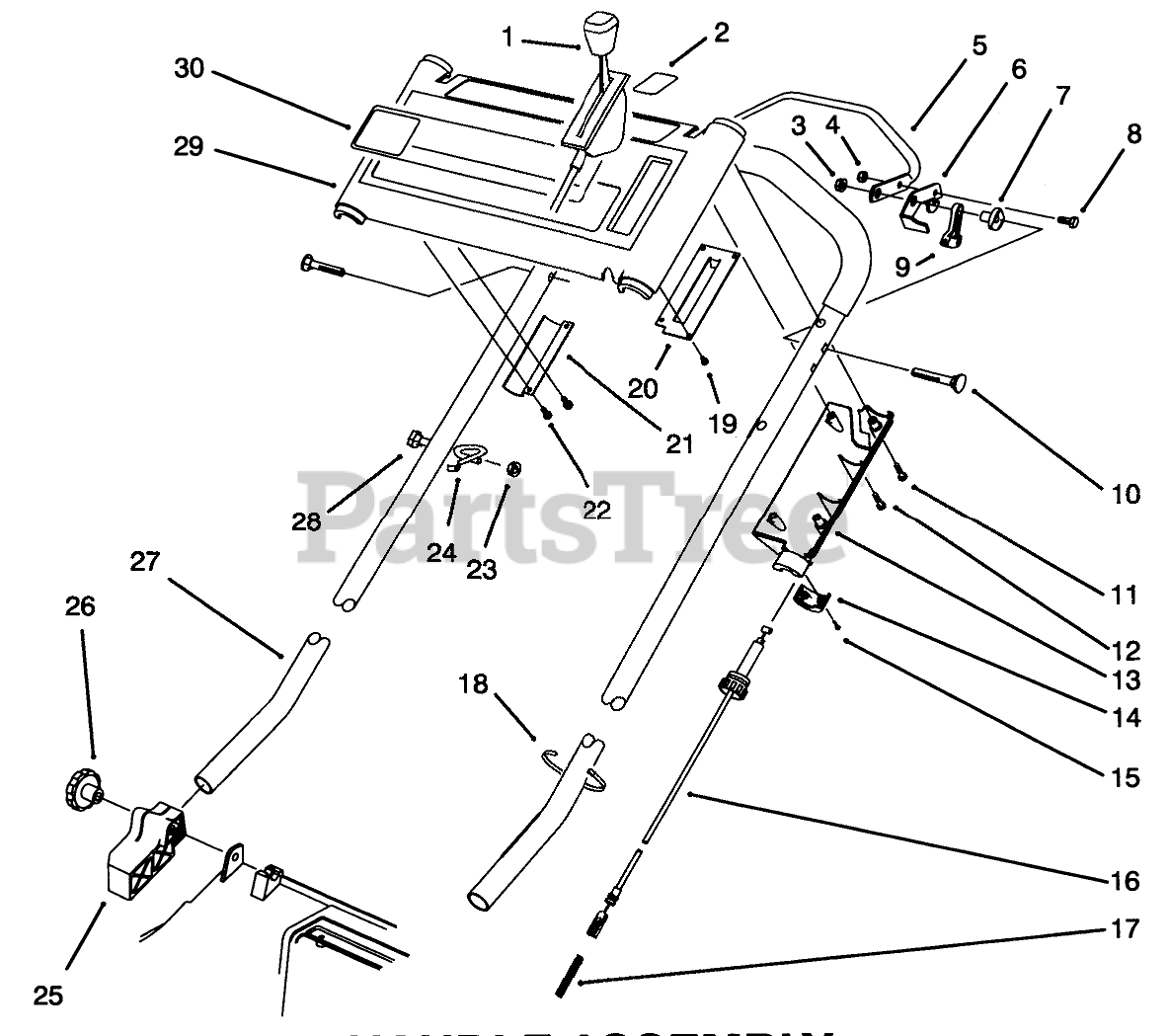

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 66-0236

THROTTLE CONTROL

$109.99

$

Usually ships in 3-6 days

0

2

Toro 92-9088

DECAL - PANEL

$

$

Not available

3

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

4

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

5

Toro 46-9900

CONTROL BAR

$

$

Not available

6

Toro 66-5350

LEVER-CONTROL

$13.99

$

Usually ships in 3-6 days

0

7

Toro 66-0330

SPACER-SUPPORT

$6.99

$

Usually ships in 3-6 days

0

8

Toro 321-3

SCREW-HH

$1.49

$

In Stock, Qty 10

0

9

Toro 46-5520

LEVER-TRACTION

$

$

Not available

10

Toro 17-9426

SCREW-HANDLE

$3.99

$

In Stock, Qty 8

0

11

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

12

Toro 32104-121

Screw
(Superseded to 94-4496)

$1.49

$

In Stock, Qty 20+

0

13

Toro 71-7680

Cover-Throttle Lower
(Superseded to 93-0339)

$

$

Not available

14

Toro 71-7630

LOWER THROTTLE CAP

$14.99

$

Usually ships in 3-6 days

0

15

Toro 32144-99

#4-14X.62 PLASTITE SCW

$

$

Not available

16

Toro 71-8110

TRACTION CABLE

$55.99

$

Usually ships in 3-6 days

0

17

Toro 71-8310

SPRING-COMPRESSION

$4.99

$

Usually ships in 3-6 days

0

18

Toro 3290-378

TIE-CABLE

$0.99

$

In Stock, Qty 14

0

19

Toro 32144-98

#6-19X.25 PLASK FORM SC

$1.99

$

Usually ships in 3-6 days

0

20

Toro 71-8040

THROTTLE PLATE

$

$

Not available

21

Toro 71-8130

Bracket-Panel
(Superseded to 71-8130-03)

$

$

Not available

22

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, Qty 12

0

23

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

24

Toro 46-8081

GUIDE-ROPE

$20.99

$

Usually ships in 3-6 days

0

25

Toro 71-8100

MOUNT-HANDLE, RH

$

$

Not available

Toro 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

$

$

Not available

26

Toro 19-4050

KNOB

$17.99

$

In Stock, Qty 9

0

27

Toro 71-9021

HANDLE (DIPPED)

$

$

Not available

28

Toro 321-13

SCREW-HH

$4.49

$

In Stock, only 2 left!

0

29

Toro 16-5999

Panel-Control (Incl. Ref. #2, & 30)

$341.99

$

Usually ships in 3-6 days

0

30

Toro 92-7865

DECAL - PANEL

$

$

Not available
