20806 BC - Toro 48cm Recycler Walk-Behind Mower (SN: 049000001 - 049999999) (1994) GRASS BAG ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

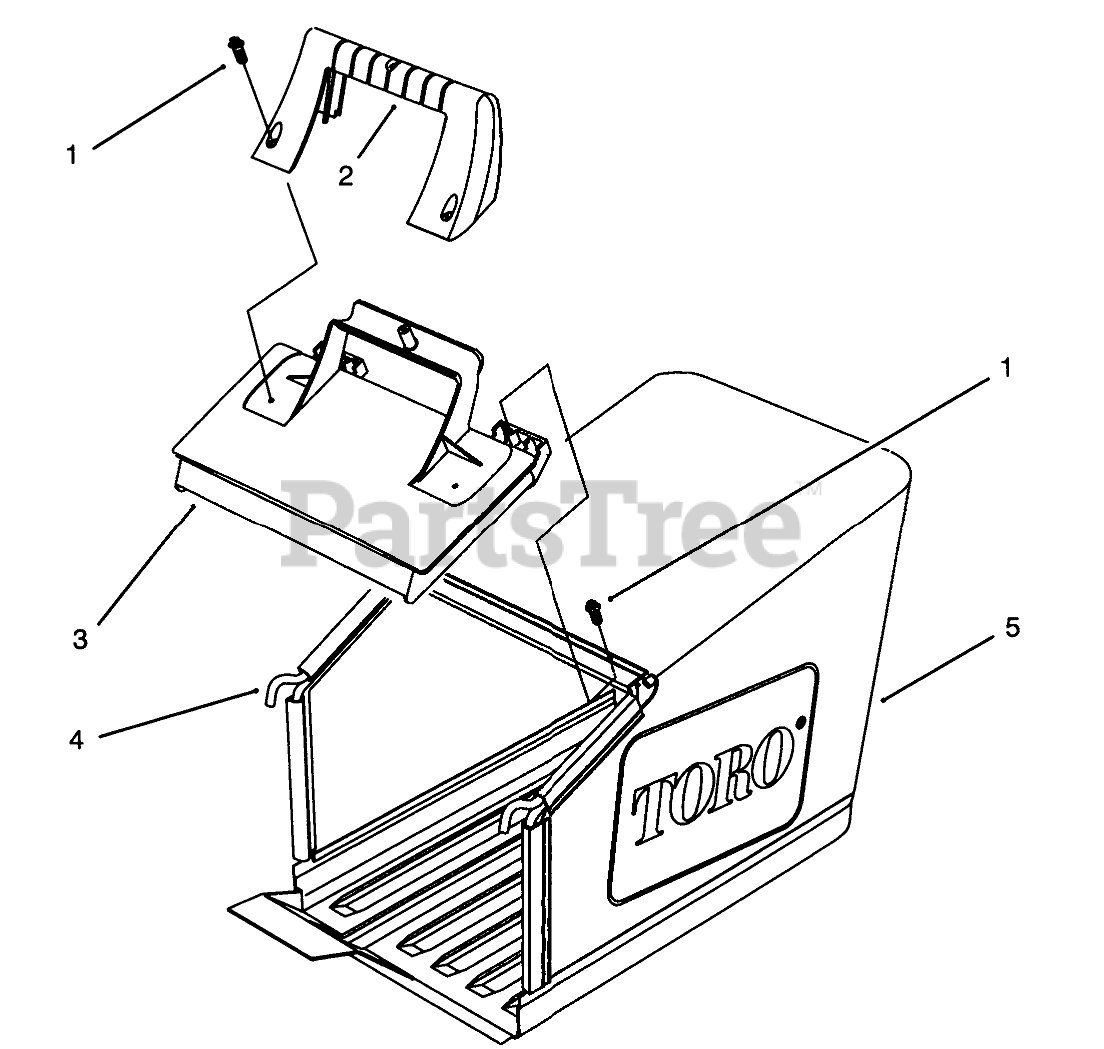

GRASS BAG ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-11

SCREW-HWHTF

$7.99

$

In Stock, Qty 8

0

2

Toro 71-9480

HANDLE-DOOR

$19.99

$

Usually ships in 3-6 days

0

3

Toro 71-9470

DOOR-BAG

$48.99

$

Usually ships in 3-6 days

0

4

Toro 71-9900

Frame
(Superseded to 71-9900-03)

$

$

Not available

5

Toro 71-9460

GRASS BAG 48CM W/PAN

Note: Obtain from Toro Europe N.V.

$

$

Not available
