20807 BC - Toro 48cm Recycler Walk-Behind Mower (SN: 059000001 - 059999999) (1995) CONTROL ASSEMBLY (MODEL NO. 20807BC ONLY) Parts Diagram
48cm Recycler Walk-Behind Mower

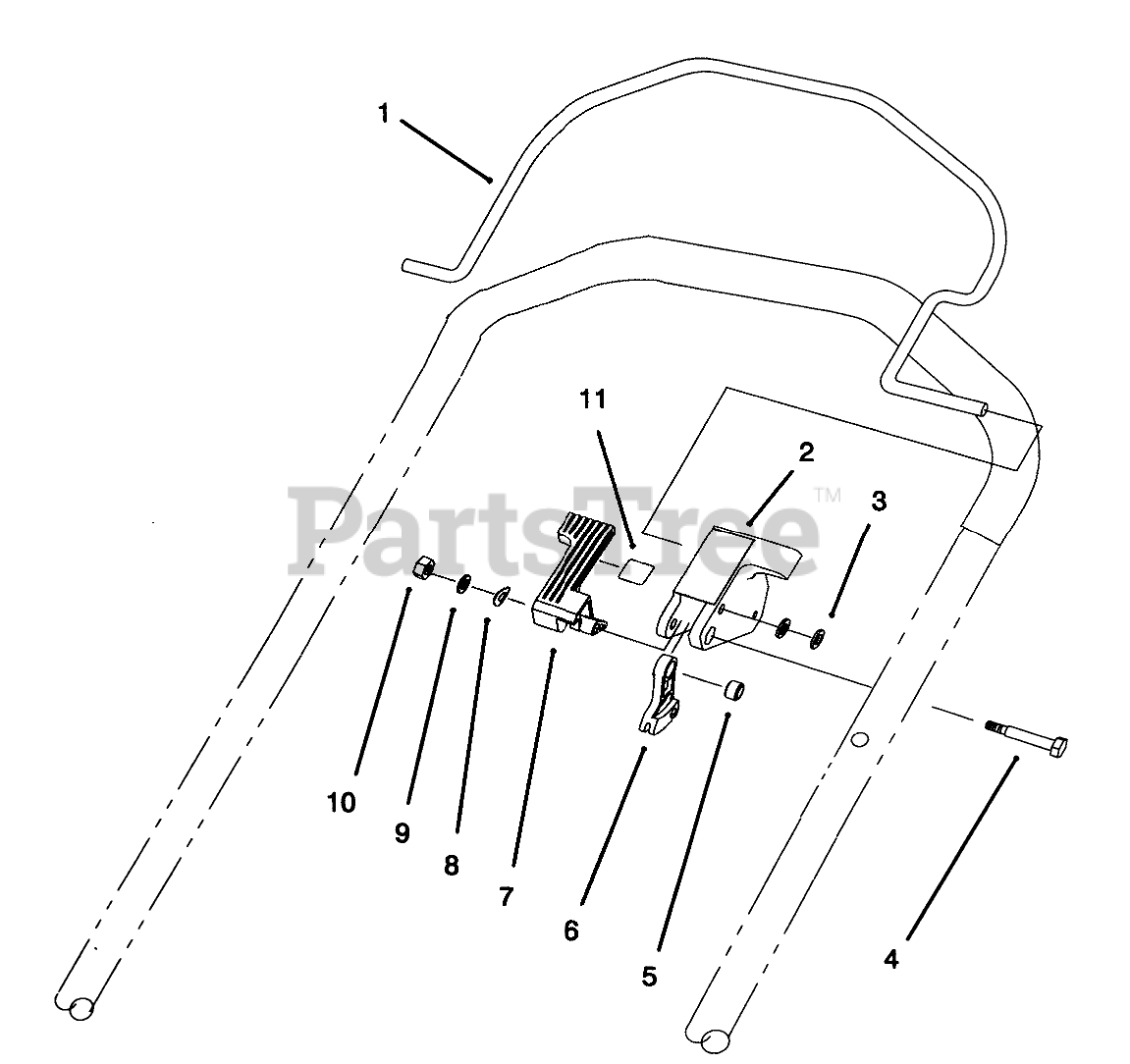

CONTROL ASSEMBLY (MODEL NO. 20807BC ONLY) Parts Diagram
Toro 93-0335
BAIL - CONTROL
$
$
Not available
Toro 93-0340
STOP - PIVOT, PLASTIC
$25.99
$
In Stock, Qty 6
Toro 3256-70
WASHER-FLAT
$1.49
$
In Stock, Qty 20+
Toro 92-3132
SHOULDER BOLT
$14.99
$
Usually ships in 3-6 days
Toro 92-3133
SPACER-LEVER, TRACTION
$3.99
$
In Stock, Qty 5
Toro 46-5520
LEVER-TRACTION
$
$
Not available
Toro 92-2299
LEVER - SHIFT
$22.99
$
Usually ships in 3-6 days
Toro 92-2298
WASHER - SPRING
$3.49
$
Usually ships in 3-6 days
Toro 3256-49
WASHER-PLAIN
$0.99
$
In Stock, Qty 8
Toro 3296-2
NUT-LOCK, NI
$2.49
$
In Stock, Qty 20+
Toro 93-6653
DECAL - TRACTION
$
$
Not available
