20809 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HANDLE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

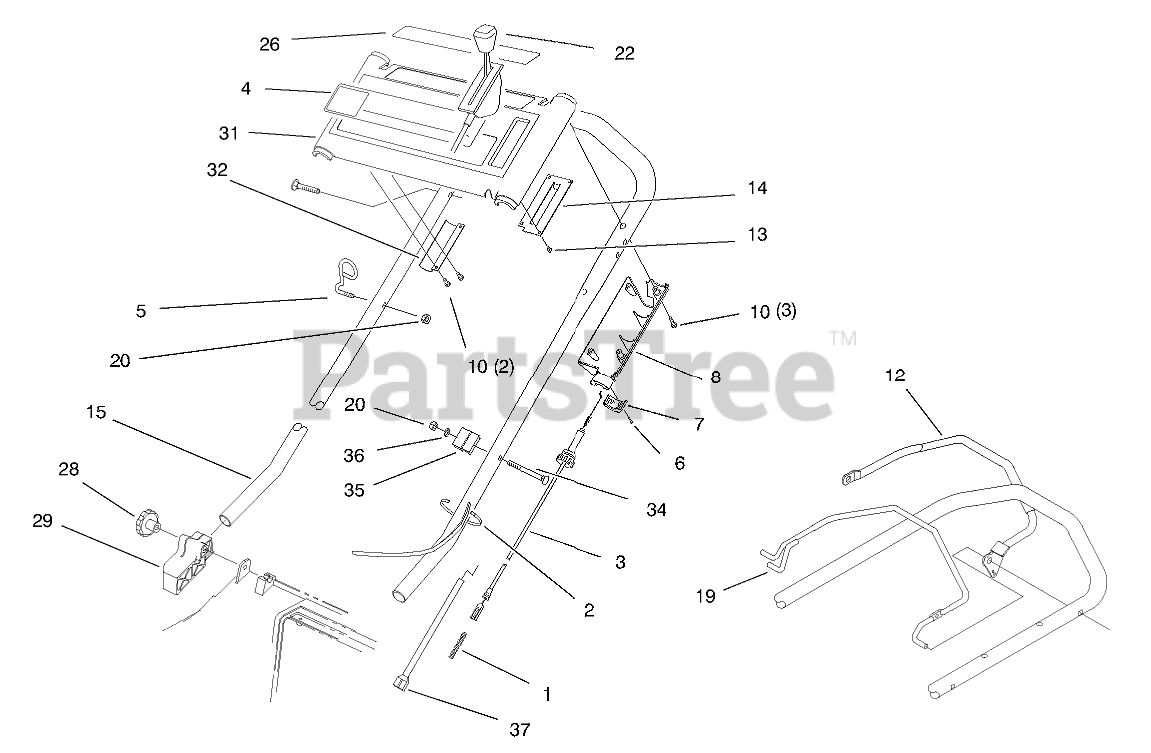

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 71-8310

SPRING-COMPRESSION
Usually ships in 5 to 8 days

$

$3.85

0

2
Usually ships in 1 day

$

$0.77

0

3

Toro Part# 95-9649

CABLE - TRACTION
Usually ships same day

Not available

$

$

4

Toro Part# 92-7865

DECAL - PANEL
Usually ships same day

Not available

$

$

5

Toro Part# 95-4457

GUIDE-ROPE
(Superseded to 86-9671)
Usually ships in 1 day

$

$4.24

0

6

Toro Part# 32144-99

#4-14X.62 PLASTITE SCW
Usually ships same day

Not available

$

$

7

Toro Part# 71-7630

LOWER THROTTLE CAP
Usually ships in 5 to 8 days

$

$11.11

0

8

Toro Part# 93-0339

COVER-THROTTLE, LEVER
Usually ships same day

Not available

$

$

10

Toro Part# 32144-97

SCREW-PPH, PLASTITE
Usually ships in 1 day

$

$0.57

0

12

Toro Part# 95-4450

Bail-Traction
(Superseded to 95-4450-03)
Usually ships same day

Not available

$

$

13

Toro Part# 32144-98

#6-19X.25 PLASK FORM SC
Usually ships in 5 to 8 days

$

$1.37

0

14

Toro Part# 71-8040

THROTTLE PLATE
Usually ships same day

Not available

$

$

15

Toro Part# 94-4367

Handle
(Superseded to 94-4367-05)
Usually ships in 5 to 8 days

$

$116.90

0

19

Toro Part# 95-4454

Bail-Brake
(Superseded to 95-4454-03)
Usually ships same day

Not available

$

$

20

Toro Part# 3296-73

NUT-LOCK, NI
Usually ships in 1 day

$

$3.21

0

22

Toro Part# 93-1117

CONTROL - THROTTLE
Usually ships in 5 to 8 days

$

$77.32

0

26

Toro Part# 94-6026

DECAL - CONTROL PANEL
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$13.41

0

29

Toro Part# 71-8100

MOUNT-HANDLE, RH
Usually ships same day

Not available

$

$

Toro Part# 71-8090

MOUNT-HANDLE, LH

Note: Not illustrated

Usually ships same day

Not available

$

$

31

Toro Part# 17-4319

Panel-Control (Incl. Ref. # 26)
(Superseded to 94-9436)
Usually ships same day

Not available

$

$

32

Toro Part# 71-8130

Bracket-Panel
(Superseded to 71-8130-03)
Usually ships same day

Not available

$

$

Usually ships in 1 day

$

$2.23

0

35

Toro Part# 92-7729

ANCHOR-CABLE, UPPER
Usually ships in 1 day

$

$3.78

0

36

Toro Part# 3256-1

WASHER-FLAT
Usually ships in 1 day

$

$0.44

0

37

Toro Part# 93-1116

CABLE - BRAKE
Usually ships in 5 to 8 days

$

$46.36

0
