20810 - Toro Walk-Behind Mower (SN: 000000001 - 000999999) (1980) Engine Tecumseh Model No. Tnt 100-10063c Parts Diagram

Walk-Behind Mower

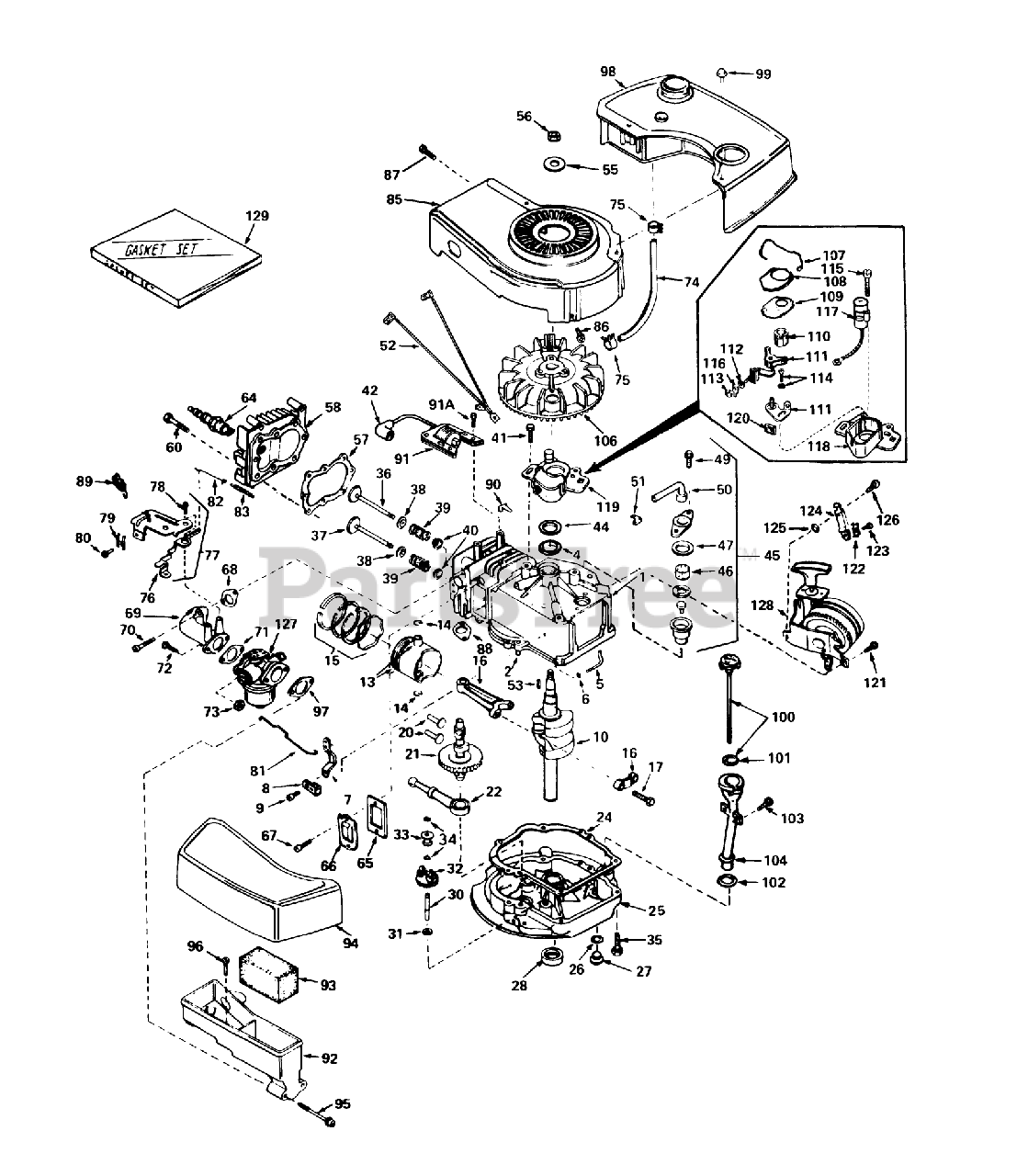

Engine Tecumseh Model No. Tnt 100-10063c Parts Diagram

  • Title

1

Toro 34429

Cyiinder Assy. (Incl. Ref. #2, 4 105)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

4

Toro 32600

Seal-Oil

$

$

Currently unavailable

5

Toro 30589

Rod, Governor (Incl. No. 36)

$

$

Currently unavailable

6

Toro 28277

Washer-Flat

$

$

Currently unavailable

7

Toro 32651

Governor Lever

$

$

Currently unavailable

8

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

9

Toro 650548

Screw

$

$

Currently unavailable

10

Toro 34430

Crankshaft

$

$

Currently unavailable

13

Toro 32603A

Piston, Pin Ring Assy. (Incl.Ref. #14 15)(Std.)

$

$

Currently unavailable

13

Toro 32604A

Piston, Pin Ring Assy. (Incl. #14 15)(.010 oversize)

$

$

Currently unavailable

13

Toro 32605A

Piston, Pin Ring Assy. (Incl.Ref. #14 15) (.020 oversize)

$

$

Currently unavailable

14

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

15

Toro 32606

Ring Set Piston (Std.)

$

$

Currently unavailable

15

Toro 32607

Ring Set Piston (.010 Oversize)

$

$

Currently unavailable

15

Toro 32608

Ring Set Piston (.020 Oversize)

$

$

Currently unavailable

16

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

17

Toro 32610A

Bolt-Rod, Connecting

$

$

Currently unavailable

20

Toro 27241

Lifter-Valve

$

$

Currently unavailable

21

Toro 33553

Camshaft(Mech.Comp. Release)

$

$

Currently unavailable

22

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

24

Toro 26750A

Gasket, Mounting

Note: Indicates items included in Gasket Set part no. 33906

$

$

Currently unavailable

25

Toro 30594B

Flange Assy., Mounting (Incl. Ref. #26thru 30)

$

$

Currently unavailable

26

Toro 28833

Gasket-Oil Drain

Note: Indicates items included in Gasket Set part no. 33906

$

$

Currently unavailable

27

Toro 27244

Plug Oil Drain

$

$

Currently unavailable

28

Toro 26208

Seal Oil

$

$

Currently unavailable

30

Toro 30574

Shaft-Governor

$

$

Currently unavailable

31

Toro 30590A

Washer-Flat

$

$

Currently unavailable

32

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

33

Toro 30588A

Spool-Governor

$

$

Currently unavailable

34

Toro 29193

Ring-Retaining

$

$

Currently unavailable

35

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

36

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

36

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

37

Toro 29313B

Valve, Exhaust (Standard) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

37

Toro 29315B

Valve, Exhaust (1/32" Oversize) (Incl. Nos. 8, 9 10)

$

$

Currently unavailable

38

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

39

Toro 31672

Spring-Valve

$

$

Currently unavailable

40

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

41

Toro 650489

Screw

$

$

Currently unavailable

42

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

44

Toro 33876

Gasket Stator

$

$

Currently unavailable

45

Toro 34214

Breather Assy. (Incl. Ref. #46, 47, 49, 50 51 )

$

$

Currently unavailable

46

Toro 33734

Element-Breather

$

$

Currently unavailable

47

Toro 33735

Gasket-Breather

Note: Indicates items included in Gasket Set part no. 33906

$

$

Currently unavailable

49

Toro 650768

Screw, Hex Hd. w/Conical

$

$

Currently unavailable

50

Toro 33886

Tube, Breaker

$

$

Currently unavailable

51

Toro 33887

Clip, Breather

$

$

Currently unavailable

52

Toro 34432

Wire Ground

$

$

Currently unavailable

53

Toro 610995

682488 LB GRASS HI-

$3.23

$

Usually ships in 3-6 days

0

55

Toro 650815

Washer-Belleville

$

$

Currently unavailable

56

Toro 650816

Nut-Flywheel

$

$

Currently unavailable

57

Toro 33015

63573 GIL 42 SNWTHW

Note: Indicates items included in Gasket Set part no. 33906

$3.23

$

Usually ships in 3-6 days

0

58

Toro 34342

Head-Cylinder

$

$

Currently unavailable

60

Toro 6021A

Screw (5/16-18x1-1/2)

$

$

Currently unavailable

64

Toro 33636

Plug, Spark (J17LM or equiv.)

$

$

Currently unavailable

64

Toro 34251

Plug, Spark (Champion RCJ-8)

$

$

Currently unavailable

65

Toro 27234

Gasket-Breather

Note: Indicates items included in Gasket Set part no. 33906

$

$

Currently unavailable

66

Toro 32755

Cover-Valve
(Superseded to 740513)

$

$

Not available

67

Toro 650128

Screw

$

$

Currently unavailable

68

Toro 32649

Gasket, Intake

Note: Indicates items included in Gasket Set part no. 33906

$

$

Currently unavailable

69

Toro 33004

Pipe, Intake

$

$

Currently unavailable

70

Toro 650451

Screw (1/4-20 x 1)

$

$

Currently unavailable

71

Toro 31688

Gasket-Carburetor
(Superseded to 704627)

Note: Indicates items included in Gasket Set part no. 33906

$

$

Not available

72

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

73

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

74

Toro 30705

Line-Fuel

$

$

Currently unavailable

75

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

76

Toro 34310

Lever Control

$

$

Currently unavailable

77

Toro 33889A

Control Assy., Speed (Incl. Nos, 76, 78 89)

$

$

Currently unavailable

78

Toro 650804

Screw, Hex Washer Hd Shoulder Self-Tap

$

$

Currently unavailable

79

Toro 27793

Conduit

$

$

Currently unavailable

80

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

81

Toro 34336

Link-Throttle

$

$

Currently unavailable

82

Toro 33151

Link Governor Spring

$

$

Currently unavailable

83

Toro 33890

Spring Governor

$

$

Currently unavailable

85

Toro 33891A

Housing Blower

$

$

Currently unavailable

86

Toro 650497

Screw

$

$

Currently unavailable

87

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

88

Toro 30081

Gasket Exhaust

Note: Indicates items included in Gasket Set part no. 33906

$

$

Currently unavailable

89

Toro 610973

Terminal

$

$

Currently unavailable

90

Toro 29443

Clip-Wire

$

$

Currently unavailable

91

Toro 34431

Lamination Coil Assy. (Incl. No. 42)

$

$

Currently unavailable

91A

Toro 650814

Screw

$

$

Currently unavailable

92

Toro 33895

Body Air Cleaner

$

$

Currently unavailable

93

Toro 33896

Filer, Air

$

$

Currently unavailable

94

Toro 33897

Cove, Air Cleaner

$

$

Currently unavailable

95

Toro 650762

Screw Fil Hd.

$

$

Currently unavailable

96

Toro 650784

Screw, Hex Hd.

$

$

Currently unavailable

97

Toro 33051

Gasket-Air Cleaner

Note: Indicates items included in Gasket Set part no. 33906

$

$

Currently unavailable

98

Toro 33904A

Tank, Fuel

$

$

Currently unavailable

99

Toro 28763

Screw (10-32 x 35/64)

$

$

Currently unavailable

100

Toro 33894A

Dipstick, Oil (Incl. Ref. #101)(Twist Lock)

$

$

Currently unavailable

101

Toro 33590

O-Ring
(Superseded to 700165)

$3.99

$

Usually ships in 3-6 days

0

102

Toro 34265

Gasket

$

$

Currently unavailable

103

Toro 650562

Screw (10-32 x 1/2)

$

$

Currently unavailable

104

Toro 34380

Tube-Oil Fill

$

$

Currently unavailable

106

Toro 611007

FIywheel

$

$

Currently unavailable

107

Toro 30551

Spring Breaker Box

$

$

Currently unavailable

108

Toro 610947

Cover-Dust

$

$

Currently unavailable

109

Toro 610955

Gasket-Dust Cover

$

$

Currently unavailable

110

Toro 30992

Cam-Breaker

$

$

Currently unavailable

111

Toro 30547A

Breaker Assy.

$18.99

$

Usually ships in 3-12 days

0

112

Toro 610385

Washer

$

$

Currently unavailable

113

Toro 610408

DECAL

$

$

Not available

114

Toro 29181

Breaker Screw

$

$

Currently unavailable

115

Toro 610593

Condenser Screw

$

$

Currently unavailable

116

Toro 33356

Terminal, Ground

$

$

Currently unavailable

117

Toro 30548B

Condenser

$

$

Currently unavailable

118

Toro 611008

Stator Plate

$

$

Currently unavailable

119

Toro 611006

Stator Plate Assy. (incl. Nos. 107, 111 thru 118 120)

$

$

Currently unavailable

120

Toro 30549

Felt,Cam Wiper

$

$

Currently unavailable

121

Toro 650737

Screw (1/4-20 x 1/2)

$

$

Currently unavailable

122

Toro 27793

Conduit

$

$

Currently unavailable

123

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

124

Toro 34099

Bracker

$

$

Currently unavailable

125

Toro 27070

Washer

$

$

Currently unavailable

126

Toro 650738

Screw (1/4-20 X 5/8)

$

$

Currently unavailable

127

Toro 632050

Carburetor (Incl. Ref. #71 )

$

$

Currently unavailable

128

Toro 590519

Starter

$

$

Currently unavailable

129

Toro 33906

53024/VAR.16HP O/P

$3.23

$

Usually ships in 3-6 days

0
