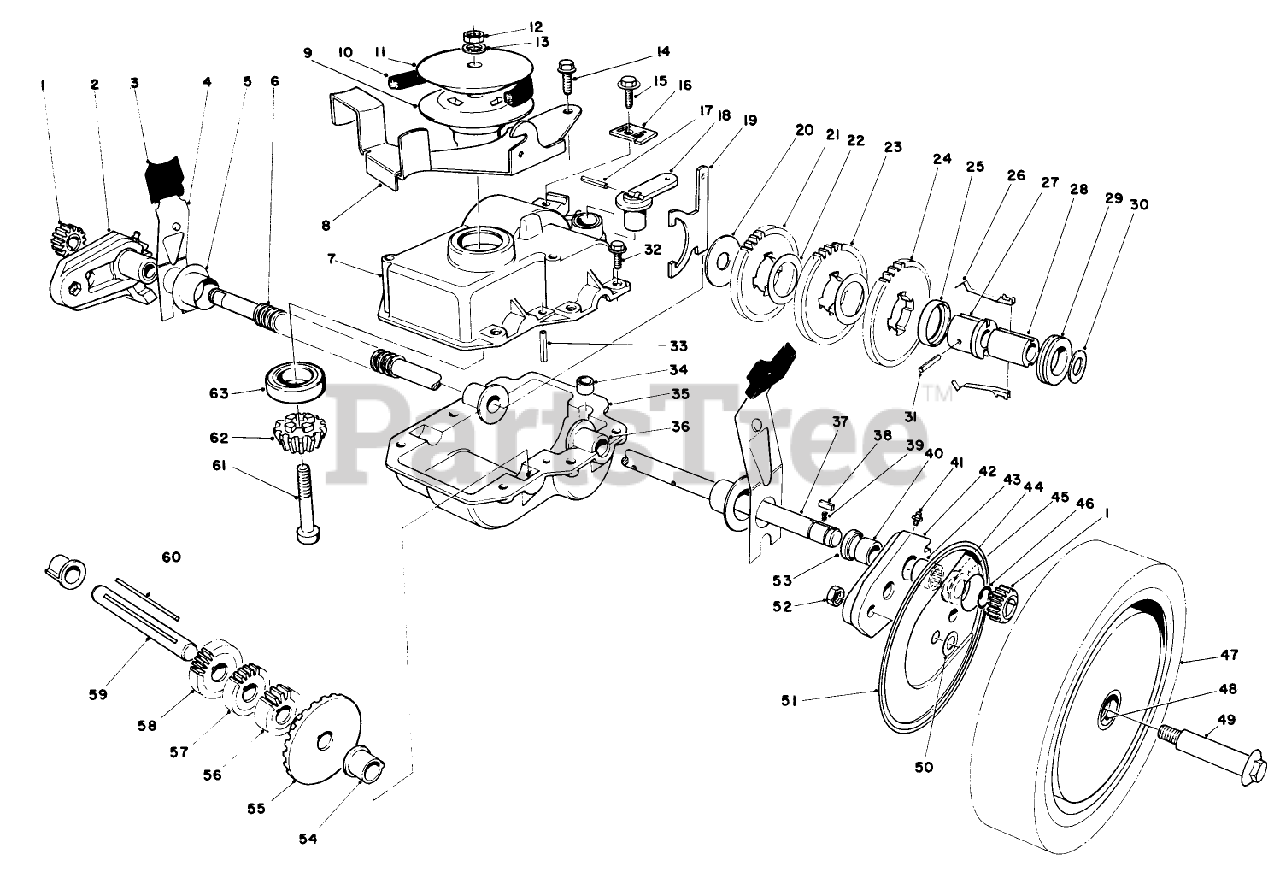

20810 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Gear Case Assembly Parts Diagram

Walk-Behind Mower

Gear Case Assembly Parts Diagram

  • Title

1

Toro 39-9160

GEAR-PINION

$14.99

$

In Stock, Qty 11

0

2

Toro 49-7720

PIVOT ARM ASM RH

$

$

Not available

3

Toro 25-7740

KNOB-ARM

$5.49

$

In Stock, Qty 12

0

4

Toro 44-1010

SPRING ARM ASM SP

$47.99

$

Usually ships in 3-6 days

0

5

Toro 42-3520

CAP-END
(Superseded to 138-3235)

$3.99

$

In Stock, Qty 20+

0

6

Toro 24-7922

CONDUIT-CONVOLUTED, SPLIT

$11.99

$

Usually ships in 3-6 days

0

7

Toro 49-8370

DISCONTINUED

$

$

Not available

8

Toro 49-8460

DISCONTINUED

$

$

Not available

9

Toro 49-8330

PULLEY-LOWER HALF

$

$

Not available

10

Toro 36-8070

V-BELT

$15.99

$

In Stock, only 2 left!

0

11

Toro 49-8340

DISCONTINUED

$

$

Not available

12

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-2

WASHER-FLAT

$0.99

$

In Stock, Qty 17

0

14

Toro 12-3270

SCREW

$3.99

$

In Stock, Qty 11

0

15

Toro 32144-11

SCREW-THD ROLL, HWH

$8.49

$

In Stock, only 2 left!

0

16

Toro 46-5610

See Supercession: 62-3720
(Superseded to 62-3720)

$2.99

$

In Stock, only 1 left!

0

17

Toro 32121-99

PIN-SPRING

$1.49

$

Usually ships in 3-6 days

0

18

Toro 29-9560

LEVER-SHIFT

$18.99

$

Usually ships in 3-6 days

0

19

Toro 29-9520

See Supercession: 60-8870
(Superseded to 60-8870)

$26.99

$

In Stock, only 2 left!

0

20

Toro 29-9690

WASHER

$

$

Not available

21

Toro 42-4740

GEAR-38T

$94.99

$

In Stock, only 3 left!

0

22

Toro 36-4770

WASHER

$6.99

$

Usually ships in 3-6 days

0

23

Toro 29-9271

GEAR-42T

$100.99

$

Usually ships in 3-6 days

0

24

Toro 46-3560

GEAR

$84.99

$

In Stock, only 1 left!

0

25

Toro 39-7830

DISCONTINUED

$

$

Not available

26

Toro 29-9330

KEY-SHIFT

$29.99

$

In Stock, Qty 6

0

27

Toro 39-6730

See Supercession: 55-8010
(Superseded to 55-8010)

$20.99

$

In Stock, only 4 left!

0

28

Toro 39-6720

SLEEVE

$18.99

$

Usually ships in 3-6 days

0

29

Toro 29-9340

COLLAR-SHIFT

$47.99

$

Usually ships in 3-6 days

0

30

Toro 36-4780

WASHER-PLAIN

$8.49

$

In Stock, Qty 12

0

31

Toro 32121-106

See Supercession: 32121-108
(Superseded to 32121-108)

$7.49

$

In Stock, only 1 left!

0

32

Toro 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

33

Toro 32121-100

ROLL PIN 3/16 X 1 IN

$2.49

$

Usually ships in 3-6 days

0

34

Toro 29-9570

BUSHING-YOKE

$12.99

$

In Stock, only 3 left!

0

35

Toro 29-9410

DISCONTINUED

$

$

Not available

36

Toro 47-5220

DISCONTINUE

$

$

Not available

37

Toro 44-0850

See Supercession: 12-6659
(Superseded to 12-6659)

$311.99

$

Usually ships in 3-6 days

0

38

Toro 39-9680

KEY RECTANGULAR

$5.49

$

In Stock, Qty 20+

0

39

Toro 39-9650

SPRING-COMPRESSION

$3.99

$

In Stock, Qty 20+

0

40

Toro 47-2890

BUSHING

$3.99

$

Usually ships in 3-6 days

0

41

Toro 302-56

FITTING-GREASE

$5.49

$

In Stock, Qty 11

0

42

Toro 49-7710

DISCONTINUED

$

$

Not available

43

Toro 48-2060

See Supercession: 117-3500
(Superseded to 117-3500)

$5.49

$

In Stock, Qty 7

0

44

Toro 49-7690

DISCONTINUED

$

$

Not available

45

Toro 49-7700

WASHER-THRUST, OUTER

$2.99

$

In Stock, Qty 20+

0

46

Toro 32151-68

RING-RETAINING
(Superseded to 65-2720)

$1.49

$

In Stock, Qty 20+

0

47

Toro 11-6359

WHEEL-TIRE ASM SERVICE
(Superseded to 14-9959)

$54.99

$

In Stock, only 2 left!

0

48

Toro 27-6250

BUSHING

$2.99

$

In Stock, Qty 20+

0

49

Toro 27-6231

WHEEL BOLT

$5.99

$

In Stock, only 2 left!

0

50

Toro 40-1940

WASHER

$2.99

$

In Stock, Qty 12

0

51

Toro 44-0600

WHEEL COVER

$

$

Not available

52

Toro 3296-6

NUT-LOCK

$1.99

$

In Stock, Qty 10

0

53

Toro 47-7260

SEAL

$10.99

$

In Stock, only 2 left!

0

54

Toro 47-5210

BUSHING

$

$

Not available

55

Toro 39-6670

DISCONTINUED

$

$

Not available

56

Toro 46-3540

GEAR-12T

$15.99

$

In Stock, Qty 5

0

57

Toro 46-3550

GEAR-14T

$24.99

$

Usually ships in 3-6 days

0

58

Toro 39-6650

GEAR-18T

$15.99

$

In Stock, only 2 left!

0

59

Toro 46-9470

DISCONTINUED

$

$

Not available

60

Toro 39-7841

See Supercession: 39-7843
(Superseded to 39-7843)

$

$

Not available

61

Toro 3274-61

DISCONTINUED

$

$

Not available

62

Toro 49-8350

DISCONTINUED

$

$

Not available

63

Toro 38-7820

BEARING-BALL

$15.99

$

In Stock, Qty 20+

0

Toro 49-8610

DISCONTINUED

Note: Not illustrated

$

$

Not available
