20810 - Toro Walk-Behind Mower (SN: 004000001 - 004999999) (1984) Handle Assembly Parts Diagram

Walk-Behind Mower

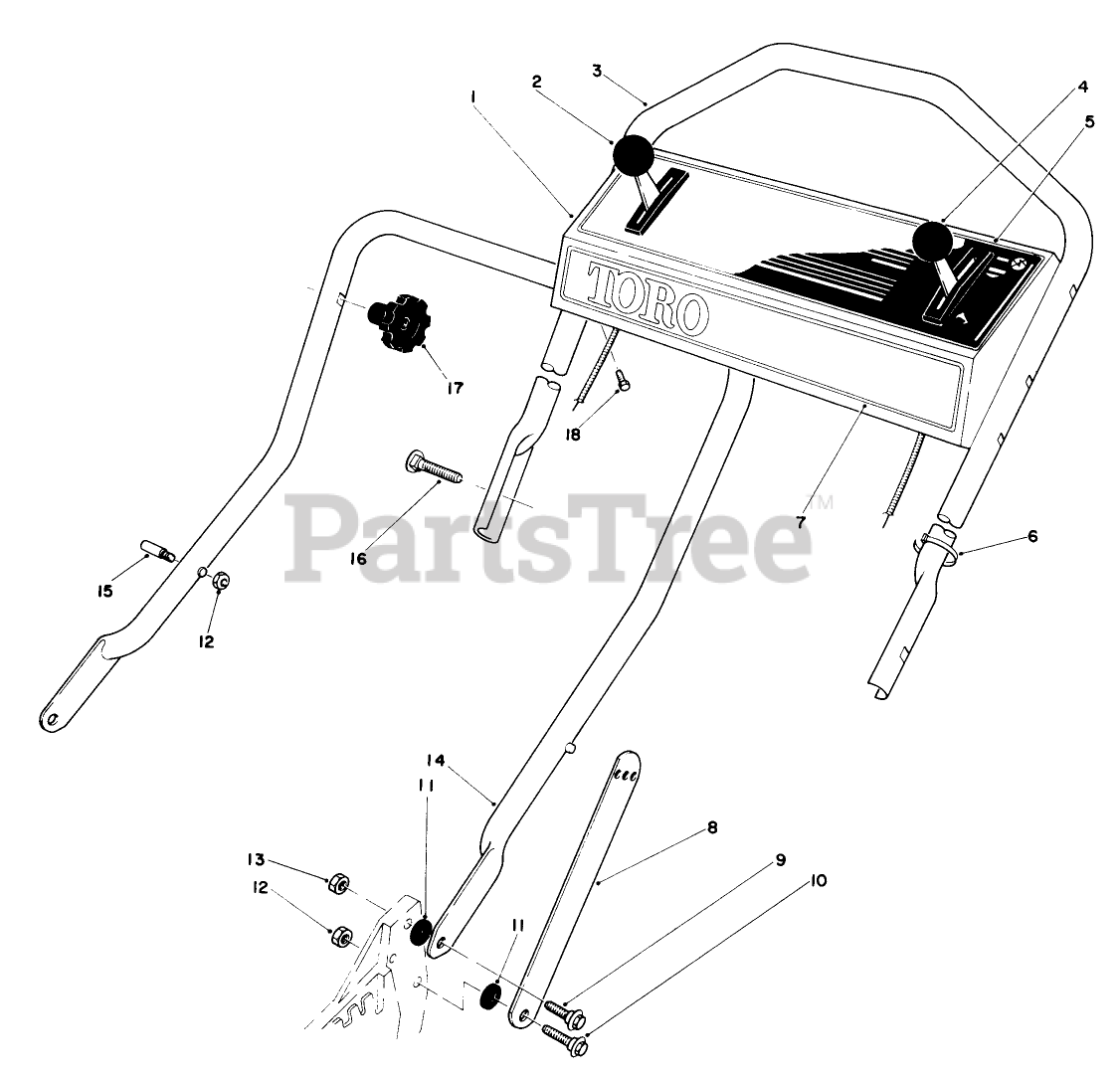

Handle Assembly Parts Diagram

  • Title

1

Toro 11-6529

DISCONTINUED

$

$

Not available

2

Toro 46-5430

GROUND SPEED CONTROL

$106.99

$

Usually ships in 3-6 days

0

3

Toro 46-5411

DISCONTINUED
(Superseded to 84-8332)

$

$

Not available

4

Toro 46-6010

SERVICE THROTTLE CONTRO

$

$

Not available

5

Toro 46-8350

DISCONTINUED

$

$

Not available

6

Toro 218-465

BOWDEN CLIP

$

$

Not available

7

Toro 46-7380

DISCONTINUED
(Superseded to 66-1770)

$

$

Not available

8

Toro 43-1370

See Supercession: 98-7138
(Superseded to 98-7138)

$

$

Not available

9

Toro 27-7211

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

10

Toro 27-7210

SCREW-SHOULDER

$8.49

$

In Stock, Qty 7

0

11

Toro 3-3287

SPACER

$5.49

$

In Stock, Qty 11

0

12

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 20+

0

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 43-1360

DISCONTINUED
(Superseded to 43-1361)

$

$

Not available

15

Toro 49-2750

HANDLE PIN

Note: Service Replacement Parts

$38.99

$

Usually ships in 3-6 days

0

16

Toro 17-9421

See Supercession: 92-2260
(Superseded to 92-2260)

$4.49

$

In Stock, Qty 20+

0

17

Toro 19-4050

KNOB

$18.99

$

Usually ships in 3-6 days

0

18

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0
