20812 - Toro 48cm Recycler Walk-Behind Mower (SN: 200000001 - 200999999) (2000) Engine Briggs Stratton Model 12f802-1769-B1 9 Parts Diagram

48cm Recycler Walk-Behind Mower

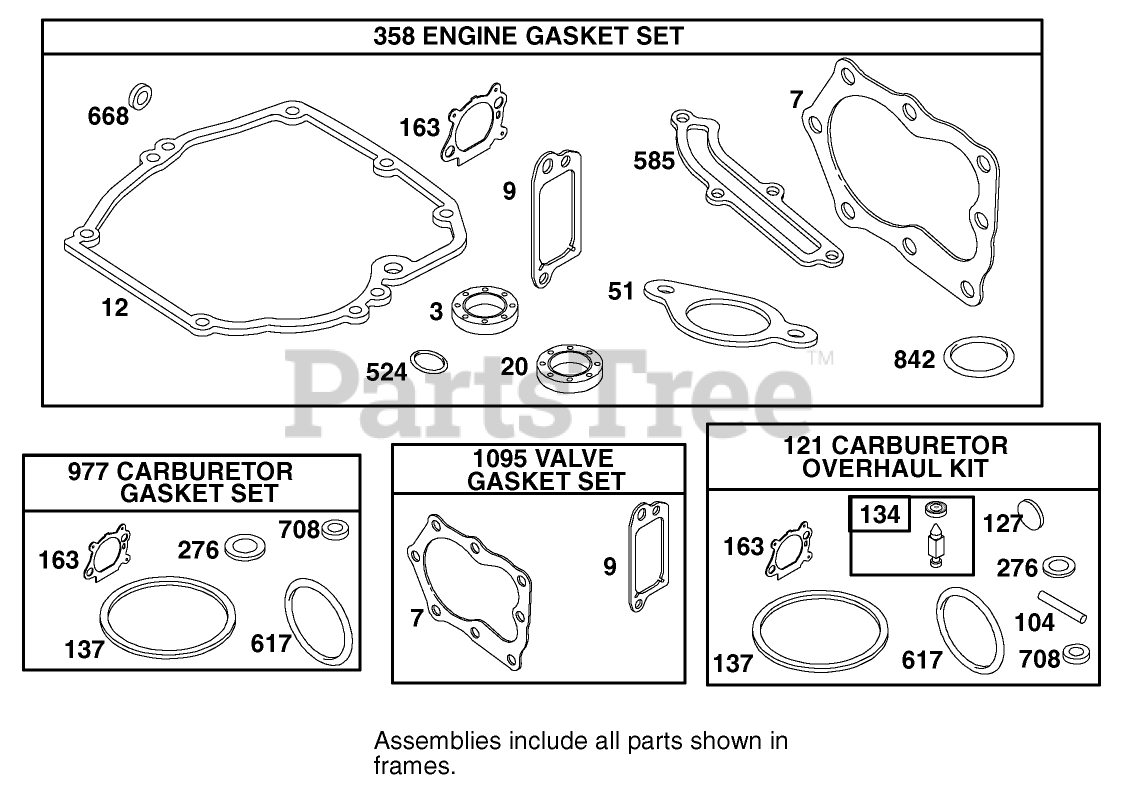

Engine Briggs Stratton Model 12f802-1769-B1 9 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

7

Toro 272916

Gasket-Cylinder Hd

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

7

Toro 272916

Gasket-Cylinder Hd

Note: Included in Valve Gasket Set-Part No. 498528.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Valve Gasket Set-Part No. 498528.

$

$

Currently unavailable

9

Toro 272481

Gasket?Breather

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

12

Toro 272198

Gasket

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

20

Toro 399781

Seal-Oil

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

51

Toro 272199

Gasket-Intake

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

121

Toro 498260

Carburetor Overhaul Kit

$

$

Currently unavailable

127

Toro 694468

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

137

Toro 280492

Float Bowl Gasket

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

137

Toro 280492

Float Bowl Gasket

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

163

Toro 272653

Gasket-Cleaner, Air

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

358

Toro 497316

Engine Gasket Set

$

$

Currently unavailable

524

Toro 280966

O-Ring Seal

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

585

Toro 272238

Gasket-Breather

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

617

Toro 270344

Seal-O Ring

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Part No. 498260.

$

$

Currently unavailable

708

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Part No. 498261

$

$

Currently unavailable

668

Toro 493823

Spacer

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

842

Toro 280393

O-Ring Seal

Note: Included in Engine Gasket Set-Part No. 497316

$

$

Currently unavailable

977

Toro 498261

Carburetor Gasket Set

$

$

Currently unavailable

1095

Toro 498528

Valve Gasket Set

$

$

Currently unavailable
