20815 - Toro Walk-Behind Mower (SN: 001000001 - 001999999) (1981) ENGINE ASSEMBLY Parts Diagram

Walk-Behind Mower

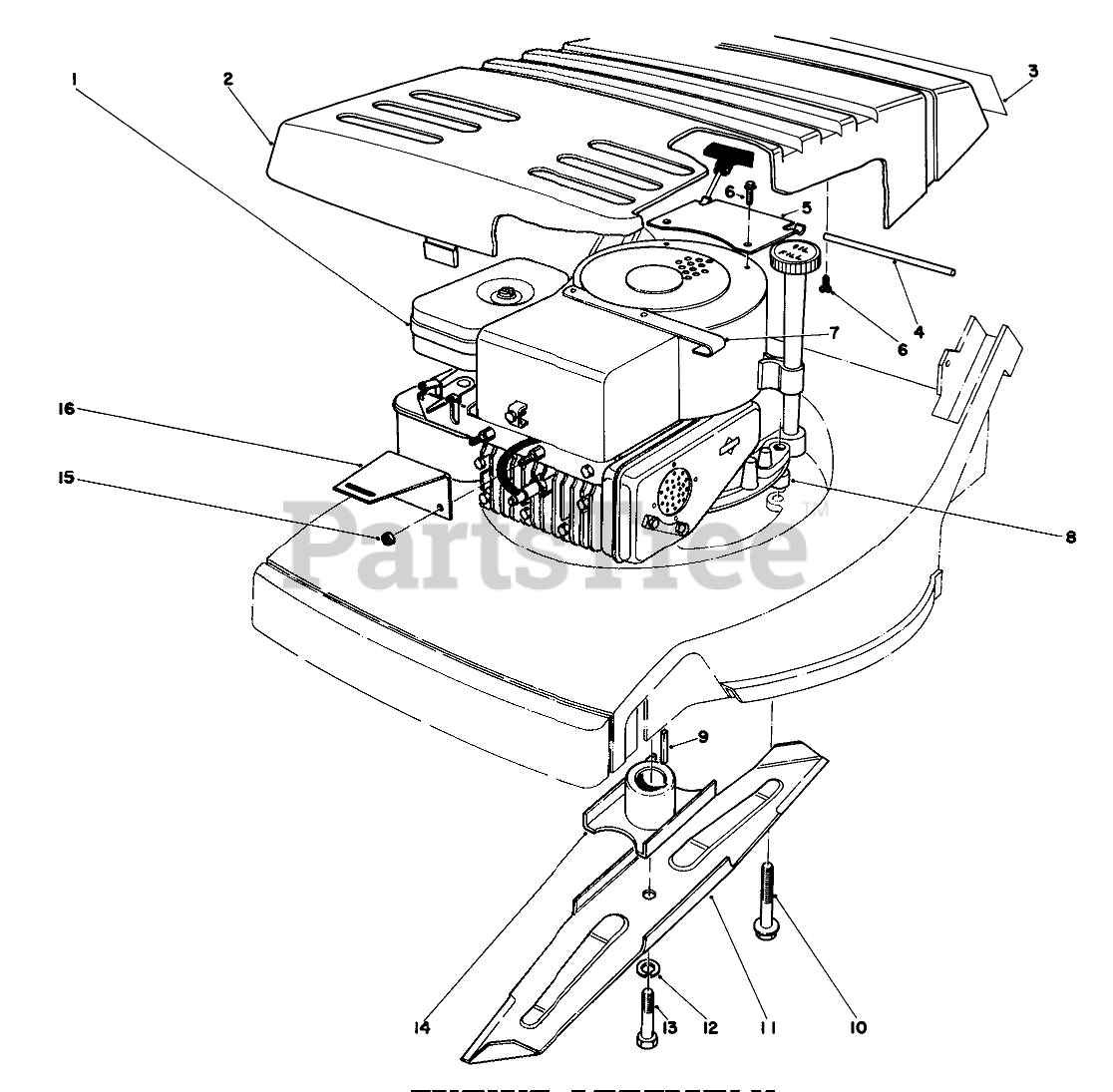

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 221-678

Engine (Model No. 20815)

$

$

Not available

Toro 221-706

Engine (Model No. 20830)

Note: Not illustrated

$

$

Currently unavailable

2

Toro 46-0440

Shroud

$

$

Currently unavailable

3

Toro 46-1700

Decal-Warning (Model No. 20815)

$

$

Not available

Toro 46-1750

Decal-Warning (English) (Model No. 20815)

Note: Not illustrated

$

$

Not available

Toro 46-1730

Decal-Warning (French) (Model No. 20815)

Note: Not illustrated

$

$

Not available

Toro 46-1720

WARNING DECAL-DUTCH

Note: Not illustrated

$

$

Not available

3

Toro 46-1740

Decal-Warning (German) (Model No. 20830)

$

$

Not available

4

Toro 464450

Pin-Hinge

$

$

Currently unavailable

5

Toro 46-1160

Bracket-Shroud Hinge

$

$

Not available

6

Toro 32104-94

8X1/2 SELF TAP SCREW

$

$

Not available

7

Toro 46-1920

Cable Strap

$

$

Not available

8

Toro 46-1600

SPACER

$

$

Not available

9

Toro 21-5070

KEY-SQUARE

$6.99

$

Usually ships in 3-6 days

0

10

Toro 11-0581

3/8-16 X 2 CAPSCREW

$3.99

$

Usually ships in 3-6 days

0

11

Toro 46-0660

42 CM BLADE

$

$

Not available

12

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, Qty 5

0

13

Toro 23-0080

BLADE SCREW

$31.99

$

Usually ships in 3-6 days

0

14

Toro 23-0110

BLADE RETAINER WA(BLACK)
(Superseded to 23-0110-03)

$

$

Not available

15

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

16

Toro 46-1150

Bracket-Shroud

$

$

Not available

Toro 11-0949

Loose Parts

Note: Not illustrated

$

$

Currently unavailable

Toro 46-1040

SPK PLUG WRENCH/HDLE

Note: Not illustrated

$

$

Not available

Toro 46-1200

Blade Wrench
(Superseded to 62-6770)

Note: Not illustrated

$

$

Not available
