20816 - Toro 48cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) ENGINE AND BLADE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

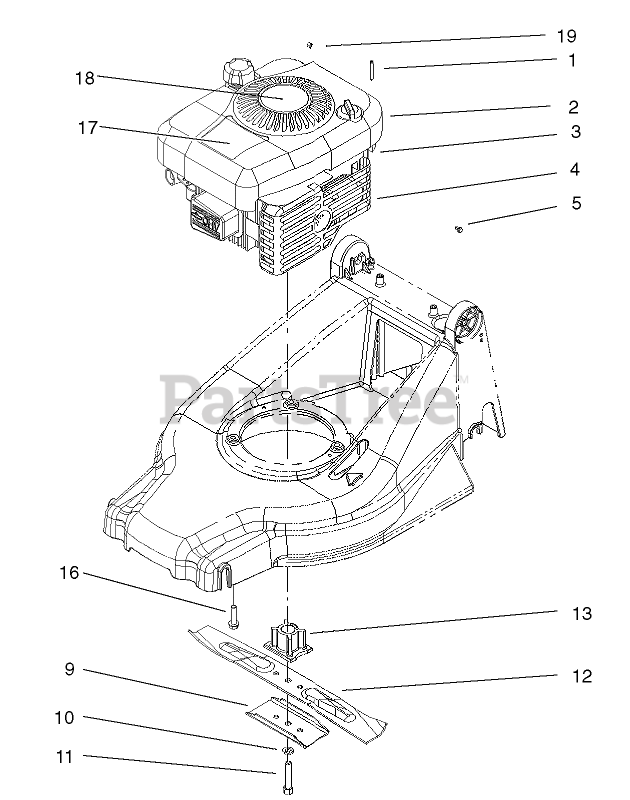

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 32144-121

SCREW-PPH
(Superseded to 32144-88)
Usually ships in 1 day

$

$1.12

0

2

Toro Part# 93-0243

SHROUD-ENGINE
Usually ships in 5 to 8 days

$

$41.44

0

3

Part#

ENGINE-Briggs and Stratton 12F802-1770-B1

Note: Not serviced separately

Usually ships same day

Not available

$

$

4

Toro Part# 104-7577-03

SHIELD-MUFFLER
Usually ships in 5 to 8 days

$

$20.62

0

5
Usually ships in 1 day

$

$0.58

0

9

Toro Part# 80-0510-03

STIFFENER-BLADE
Usually ships in 1 day

$

$14.52

0

10

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

11

Toro Part# 100-4368

BOLT-BLADE
Usually ships in 5 to 8 days

$

$16.28

0

Usually ships in 5 to 8 days

$

$58.83

0

13

Toro Part# 104-7554

RETAINER-BLADE
Usually ships in 5 to 8 days

$

$65.82

0

16
Usually ships in 1 day

$

$2.56

0

17

Toro Part# 92-2289

PLATE-LOGO
(Superseded to 98-3206)
Usually ships in 1 day

$

$1.59

0

18

Toro Part# 100-5952

DECAL-ENGINE
Usually ships in 5 to 8 days

$

$16.08

0

19
Usually ships in 5 to 8 days

$

$5.89

0
