20816 - Toro 48cm Recycler Walk-Behind Mower (SN: 260000001 - 260999999) (2006) ENGINE AND BLADE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

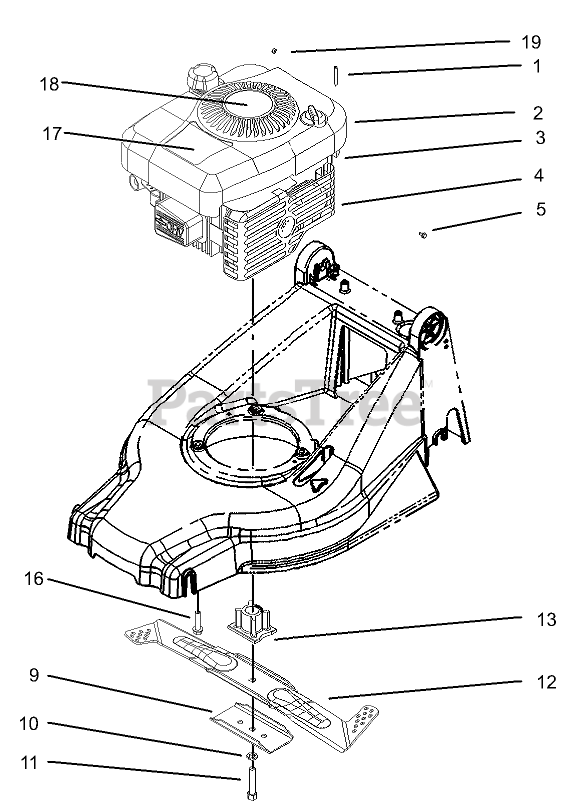

ENGINE AND BLADE ASSEMBLY Parts Diagram

  • Title

1

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, only 4 left!

0

2

Toro 105-8564

Shroud-Quantum

$

$

Not available

3

ENGINE-Briggs and Stratton 12F802-1770-B1

Note: Not serviced separately

$

$

Not available

4

Toro 104-7577-03

SHIELD-MUFFLER

$27.99

$

Usually ships in 3-6 days

0

5

Toro 104-2065

SCREW-HWH

$0.99

$

In Stock, Qty 20+

0

9

Toro 80-0510-03

STIFFENER-BLADE

$18.99

$

In Stock, Qty 7

0

10

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

11

Toro 100-4368

BOLT-BLADE

$21.99

$

Usually ships in 3-6 days

0

12

Toro 106-5781-03

BLADE-48 CM

$

$

Not available

13

Toro 104-7554

RETAINER-BLADE

$

$

Not available

16

Toro 32144-102

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

17

Toro 98-3206

Decal

$2.49

$

In Stock, only 2 left!

0

18

Toro 106-5789

Decal

$

$

Not available

19

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0
