20817 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210001000) (2001) ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

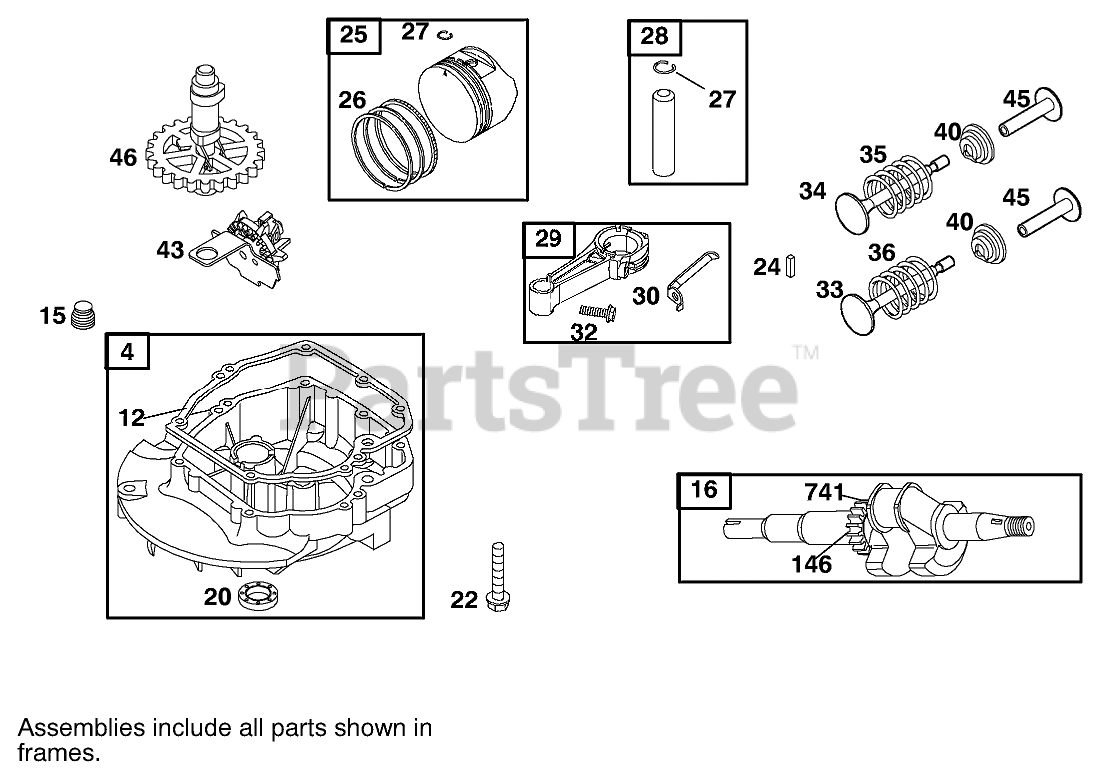

ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

  • Title

4

Briggs & Stratton 493279

Sump-Engine
(Superseded to 84007233)

$124.99

$

In Stock, only 1 left!

0

12

Briggs & Stratton 272198

Gasket
(Superseded to 692232)

Note: Included in Engine Gasket Set-Part No. 497316

$6.49

$

In Stock, Qty 8

0

15

Briggs & Stratton 94880

Oil Drain Plug
(Superseded to 691680)

$6.49

$

In Stock, Qty 8

0

16

Briggs & Stratton 694079

Crankshaft

$168.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 399781

Seal-Oil
(Superseded to 399781S)

Note: Included in Engine Gasket Set-Part No. 497316

$8.49

$

In Stock, Qty 5

0

22

Briggs & Stratton 691092

Screw

$4.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 222698

Key
(Superseded to 222698S)

$2.99

$

In Stock, Qty 9

0

25

Briggs & Stratton 499429

Piston ASM. (Standard)
(Superseded to 799063)

$100.99

$

In Stock, only 4 left!

0

Briggs & Stratton 499430

Piston ASM

$

$

Not available

Briggs & Stratton 499431

Piston ASM. (.020" O.S.)
(Superseded to 799064)

$132.99

$

In Stock, only 1 left!

0

Briggs & Stratton 499432

Piston ASM. (.030" O.S.)

$

$

Not available

26

Briggs & Stratton 499425

Ring Set (Standard)

$31.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 499426

Ring Set (.010" O.S.)

$

$

Not available

Briggs & Stratton 499427

Ring Set (.020in Oversize)

$

$

Not available

Briggs & Stratton 499428

Ring Set (.030" O.S.)

$

$

Not available

27

Briggs & Stratton 263190

Lock-Piston Pin
(Superseded to 691866)

$4.99

$

In Stock, Qty 8

0

28

Briggs & Stratton 499423

Pin-Piston

$9.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$96.99

$

In Stock, only 3 left!

0

30

Briggs & Stratton 692562

Dipper-Rod, Connecting
(Superseded to 791584)

$7.49

$

In Stock, Qty 11

0

32

Briggs & Stratton 94699

Screw-Hex
(Superseded to 691664)

$4.49

$

In Stock, Qty 9

0

33

Briggs & Stratton 262651

Valve-Exhaust
(Superseded to 590394)

$26.99

$

In Stock, only 2 left!

0

34

Briggs & Stratton 262652

Valve-Intake
(Superseded to 590393)

$24.99

$

In Stock, only 2 left!

0

35

Briggs & Stratton 691270

Spring-Valve

$5.99

$

In Stock, Qty 7

0

36

Briggs & Stratton 691270

Spring-Valve

$5.99

$

In Stock, Qty 7

0

40

Briggs & Stratton 93312

Gear-Cam
(Superseded to 692194)

$6.49

$

In Stock, only 2 left!

0

43

Briggs & Stratton 493737

Oil Slinger
(Superseded to 691997)

$28.99

$

In Stock, only 2 left!

0

45

Briggs & Stratton 690548

Tappet-Valve

$10.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 691449

Camshaft

$80.99

$

In Stock, only 3 left!

0

146

Briggs & Stratton 94388

Key-Timing
(Superseded to 690979)

$3.49

$

In Stock, only 3 left!

0

741

Briggs & Stratton 262598

Gear-Timing
(Superseded to 691830)

$19.99

$

Usually ships in 2-12 days

0
