20817 - Toro 48cm Recycler Walk-Behind Mower (SN: 210000001 - 210001000) (2001) ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

48cm Recycler Walk-Behind Mower

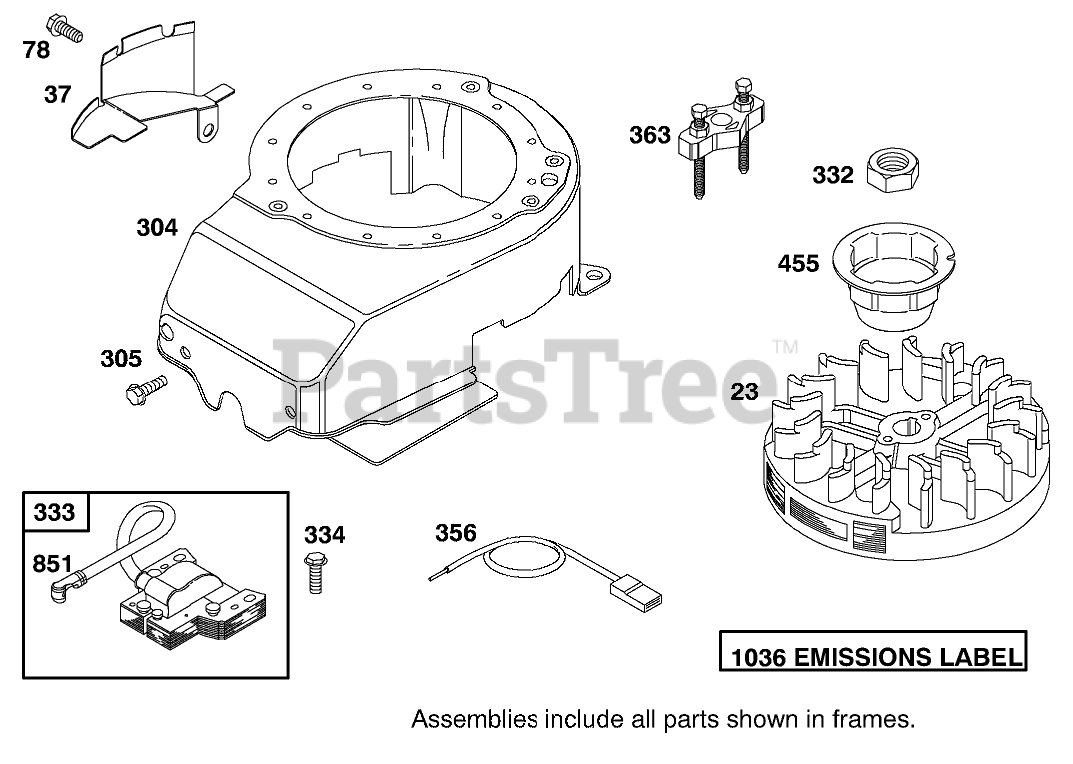

ENGINE BRIGGS & STRATTON MODEL 12F802-1769-B1 Parts Diagram

  • Title

23

Briggs & Stratton 492177

Flywheel
(Superseded to 691987)

$118.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 694086

Guard-Flywheel
(Superseded to 793756)

$11.99

$

In Stock, only 2 left!

0

78

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

304

Briggs & Stratton 493293

Housing-Blower
(Superseded to 795071)

$112.99

$

In Stock, only 2 left!

0

305

Briggs & Stratton 691108

Screw

$3.49

$

In Stock, Qty 20+

0

332

Briggs & Stratton 94877

Nut-Flywheel
(Superseded to 690662)

$6.49

$

In Stock, Qty 6

0

333

Briggs & Stratton 802574

Armature-Magneto
(Superseded to 590454)

$60.99

$

In Stock, Qty 17

0

334

Briggs & Stratton 94731

Screw-Sem
(Superseded to 691061)

$3.49

$

In Stock, Qty 20+

0

356

Briggs & Stratton 692390

Wire-Stop

$

$

Not available

363

Briggs & Stratton 19069

Puller-Flywheel

$26.99

$

In Stock, only 1 left!

0

455

Briggs & Stratton 691219

Cup-Flywheel
(Superseded to 695161)

$40.99

$

Usually ships in 2-12 days

0

851

Briggs & Stratton 493880

Terminal-Spark Plug
(Superseded to 493880S)

$3.49

$

In Stock, Qty 20+

0

1036

Briggs & Stratton 695111

Label-Emissions

$

$

Not available
