20817A - Murray 20" Walk-Behind Mower (1996) Handle Assembly Parts Diagram

20" Walk-Behind Mower

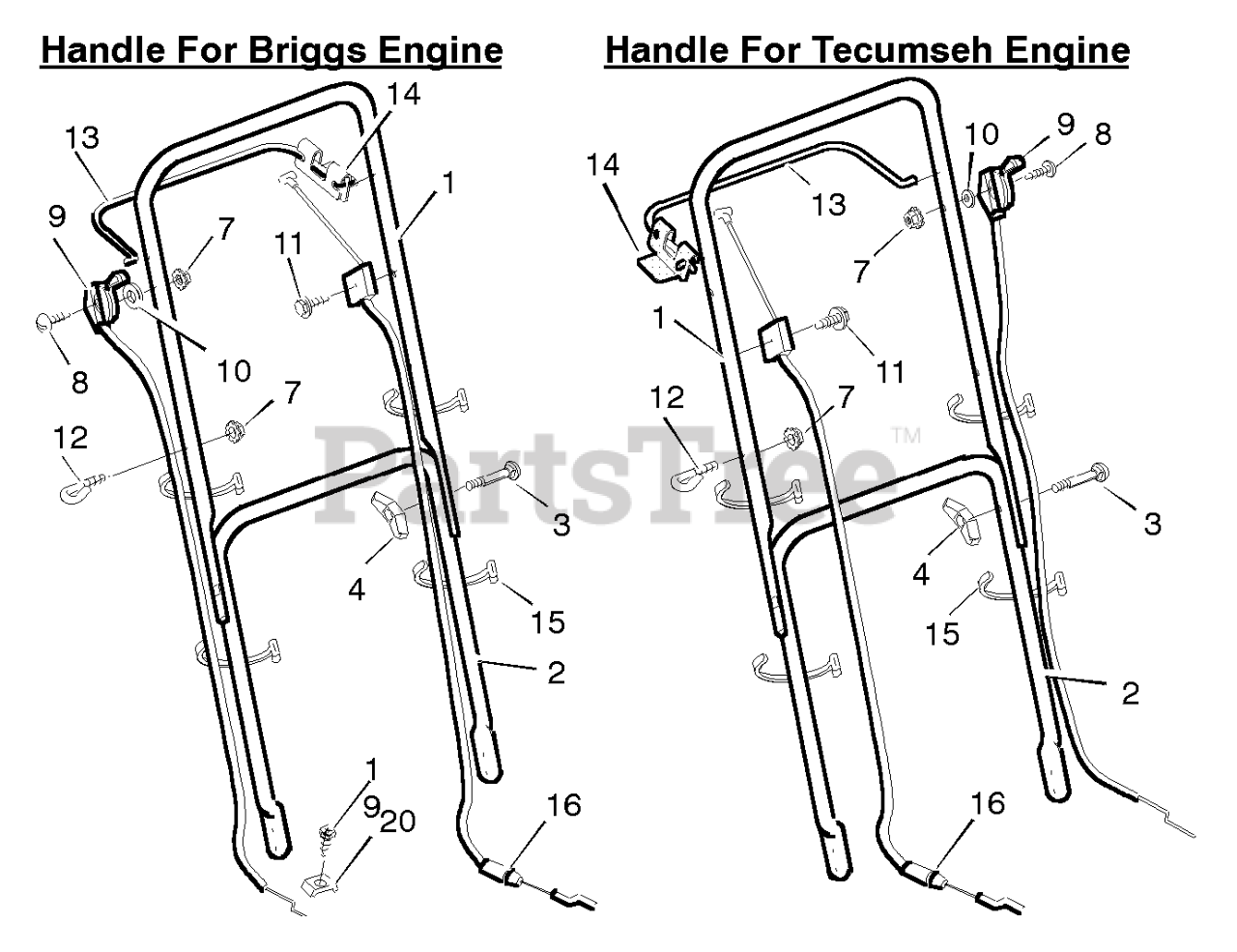

Handle Assembly Parts Diagram

  • Title

1

Murray 071359E701

Handle, Upper (Black)

$

$

Currently unavailable

--

Murray 071359E701

Handle, Upper (Grey)

$

$

Currently unavailable

2

Murray 071345E701

Handle, Lower (Black)

$

$

Currently unavailable

--

Murray 071345E701

Handle, Lower (Grey)

$

$

Currently unavailable

3

Murray 002X77MA

Bolt

$3.99

$

In Stock, Qty 11

0

4

Murray 071294

Knob, Plastic
(Superseded to 703065)

$7.49

$

In Stock, Qty 20+

0

7

Murray 15X116MA

Locknut
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

8

Murray 03X144

Screw

$3.99

$

Usually ships in 2-12 days

0

9

Murray 071180MA

Throttle Control
(Superseded to 071177MA)

Note: (For Models with Briggs & Stratton engines.)

$40.99

$

Usually ships in 2-12 days

0

--

Murray 071173MA

Throttle Control

Note: (For Models with Tecumseh engines.)

$44.99

$

Usually ships in 2-12 days

0

10

Murray 17X188

Washer

$1.99

$

Usually ships in 2-12 days

0

11

Murray 26X220MA

Screw

$

$

Not available

12

Murray 043956MA

GUIDE, ROPE

$6.49

$

Usually ships in 2-12 days

0

13

Murray 071149

Engine Stop Lever

$

$

Currently unavailable

14

Murray 43628 BC

Bracket, Stop Lever

$

$

Currently unavailable

15

Murray 071372MA

Fastener, Cable

$4.49

$

In Stock, only 1 left!

0

16

Murray 043828MA

Engine Stop Cable *

$17.99

$

In Stock, only 1 left!

0

--

Murray 043876

Engine Stop Cable *

$

$

Currently unavailable

19

Murray 26X268MA

Screw *

$3.99

$

Usually ships in 2-12 days

0

20

Murray 042294

Clamp

Note: (For Models with Briggs & Stratton engines)

$

$

Not available
