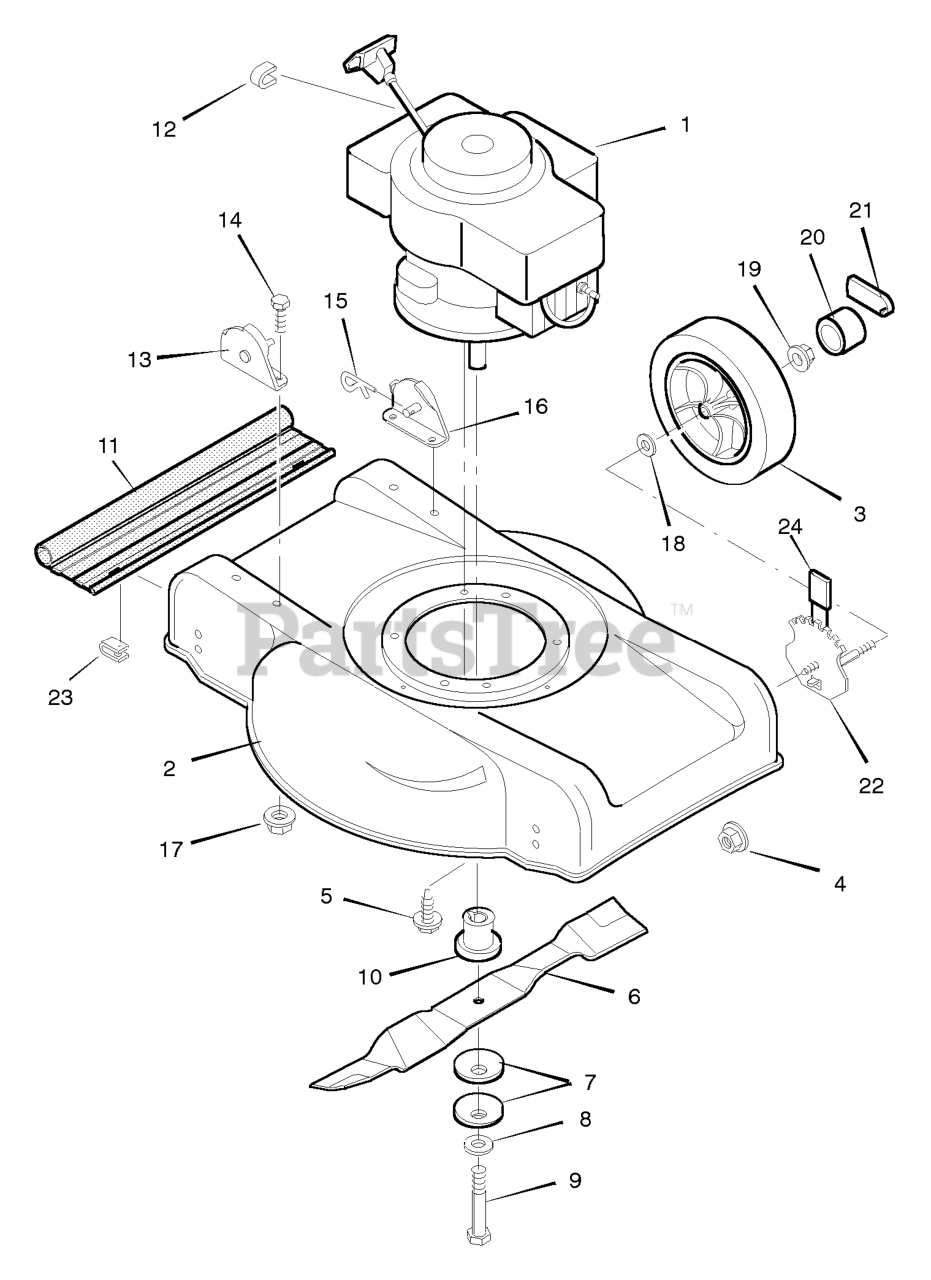

20817A - Murray 20" Walk-Behind Mower (1996) Mower Deck Assembly Parts Diagram

20" Walk-Behind Mower

Mower Deck Assembly Parts Diagram

  • Title

1

Engine *

$

$

Not available

2

Murray 070137

Housing, For Folding Handle

$

$

Currently unavailable

3

Wheel and Tire *

$

$

Not available

4

Murray 015X68MA

Locknut, Flange
(Superseded to 703333)

$4.99

$

In Stock, Qty 20+

0

5

Murray 0025X6MA

Bolt, Engine

$5.49

$

Usually ships in 2-12 days

0

6

Murray 071548E701MA

Blade

$29.99

$

Usually ships in 2-12 days

0

7

Murray 17X137MA

Washer, Belleville

$5.49

$

Usually ships in 2-12 days

0

8

Murray 17X124MA

Washer

$4.49

$

Usually ships in 2-12 days

0

9

Murray 01X142MA

Bolt, Hex

$8.49

$

In Stock, Qty 7

0

10

Murray 071059MA

Adapter, Blade

$

$

Not available

11

Murray 071527

Deflector, Rear

$

$

Currently unavailable

12

Murray 042189MA

Stop, Rope

$3.99

$

Usually ships in 2-12 days

0

13

Murray 42712E701

Bracket, Right Handle

$

$

Currently unavailable

14

Murray 001X38MA

Bolt

$4.49

$

In Stock, Qty 20+

0

15

Murray 031X10MA

Pin, Hair

$3.49

$

Usually ships in 2-12 days

0

16

Murray 42713E701

Bracket, Left Handle

$

$

Currently unavailable

17

Murray 015X82MA

Nut

$3.49

$

Usually ships in 2-12 days

0

18

Murray 0020X3MA

Washer

$4.49

$

In Stock, Qty 9

0

19

Murray 015X84MA

Locknut, Flange
(Superseded to 703893)

$6.99

$

In Stock, Qty 20+

0

20

Murray 020107MA

Hub Cap

Note: (Optional)

$4.49

$

Usually ships in 2-12 days

0

21

Murray 043847MA

Hub Cap

Note: Optional; (For Ball Bearing Wheels)

$4.49

$

Usually ships in 2-12 days

0

--

Murray 043615MA

Hub Cap

Note: Optional; (For Plastic Wheels)

$4.49

$

Usually ships in 2-12 days

0

22

Murray 401025MA

Adjuster, Height

$72.99

$

Usually ships in 2-12 days

0

23

Murray 042743MA

Retainer

$5.99

$

Usually ships in 2-12 days

0

24

Murray 043394MA

Grip

$

$

Not available
