2082 (142-732-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 836000) Baffles & Shroud Parts Diagram

Super Garden Tractor

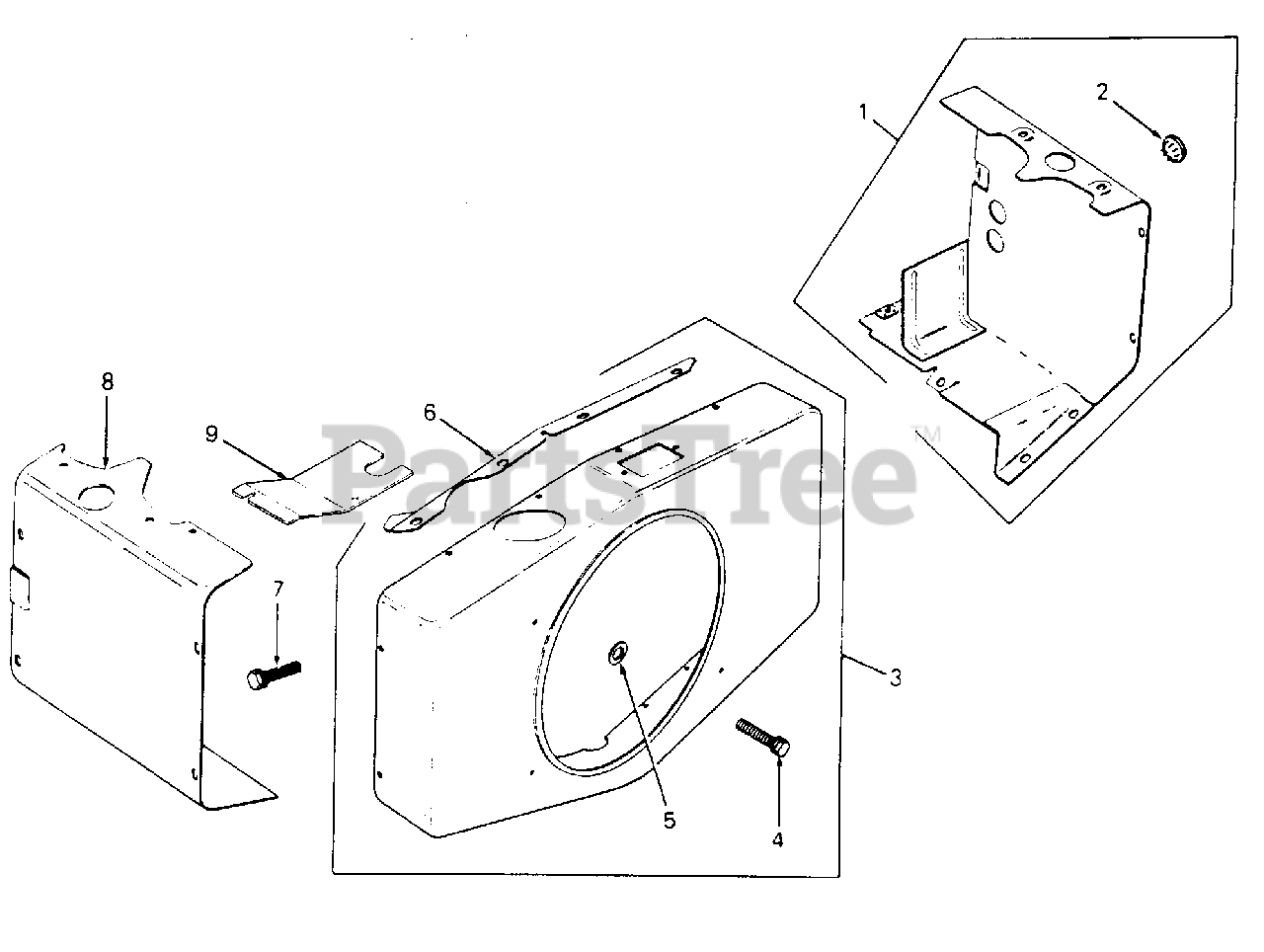

Baffles & Shroud Parts Diagram

  • Title

1

Cub Cadet KH-82-755-05

Kit, #1 Cylinder Head Baffle

Note: (Includes Ref No. 2)

$

$

Not available

2

Cub Cadet KH-X-301-8

Plug, Button

$

$

Currently unavailable

3

Cub Cadet KH-52-755-71

Kit, Blower Housing

Note: [Includes Ref No. 4 (Qty 2), 5 (Qty 2) & 6]

$

$

Not available

4

Cub Cadet KH-52-086-11

Screw, Self Tap, 1/4-20 X .62 Lg

$

$

Not available

5

Cub Cadet KH-52-468-16

Washer, Flat, 1/4

$

$

Not available

6

Cub Cadet KH-52-217-01

Support, Upper Housing

$

$

Not available

7

Cub Cadet KH-X-67-83

Screw, Hex Wash Hd, 1/4-20 X .43 Lg
(Superseded to KH-25-086-106-S)

$2.49

$

In Stock, only 1 left!

0

8

Cub Cadet KH-52-063-30

Baffle, #2 Cylinder Head

$

$

Not available

9

Cub Cadet KH-52-063-39

Baffle, #2 Cylinder Top

$

$

Not available

Cub Cadet KH-52-113-34

Decal, HP

$

$

Currently unavailable
