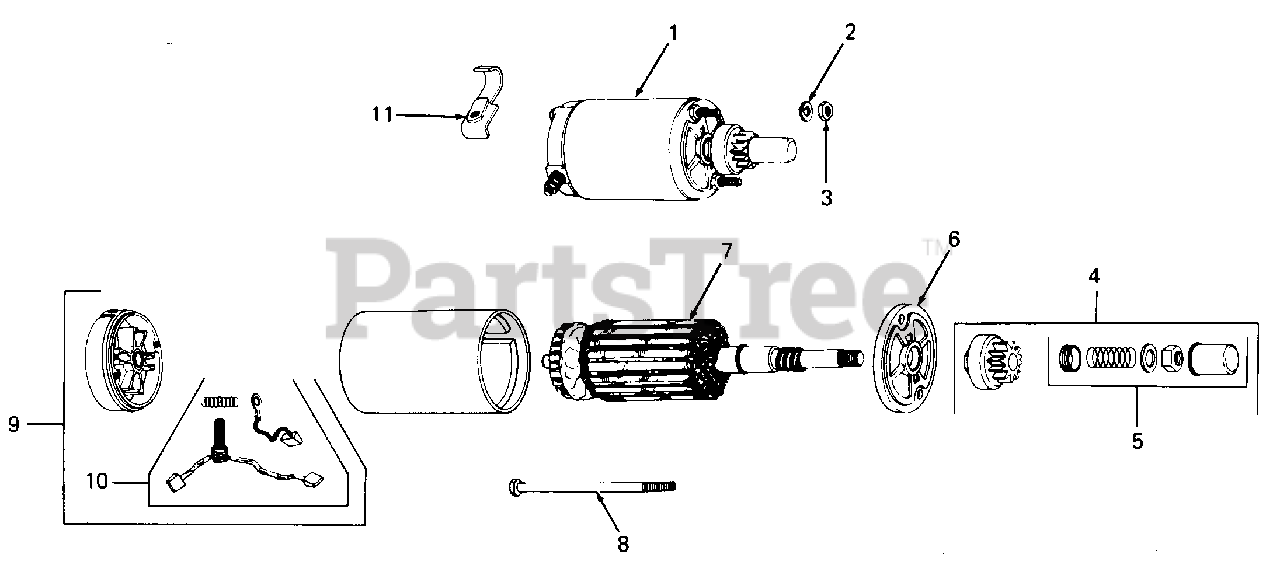

2082 (142-732-100) - Cub Cadet Super Garden Tractor (SN: 821060 - 836000) Electric Start Parts Diagram

Super Garden Tractor

Electric Start Parts Diagram

  • Title

1

Cub Cadet KH-52-098-06

Starter Assembly
(Superseded to KH-52-098-13-S)

Note: [Includes Ref No. 4, 5, 6, 7, 8 (Qty 2), 9 & 10]

$625.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-X-20-1

Washer, Lock, 1/4

$

$

Not available

3

Cub Cadet KH-X-81-1

Nut, Hex, 1/4-20

$

$

Not available

4

Cub Cadet KH-52-755-05

Kit, Drive
(Superseded to KH-82-755-32)

Note: (Includes Ref No. 5)

$

$

Not available

5

Cub Cadet KH-52-755-08

Kit, Drive Parts
(Superseded to KH-82-755-32)

$

$

Not available

6

Cub Cadet KH-52-227-01

Cap, Drive End
(Superseded to KH-82-755-32)

$

$

Not available

7

Cub Cadet KH-52-170-03

Armature

$

$

Currently unavailable

8

Cub Cadet KH-52-211-03

Bolt, 1/4-20 X 6.87 Lg

$

$

Not available

9

Cub Cadet KH-52-227-07

Cap, Commutator End

Note: (Includes Ref No. 10)

$

$

Not available

10

Cub Cadet KH-52-755-15

Kit, Brush
(Superseded to KH-82-755-28)

$

$

Not available

11

Cub Cadet KH-52-126-09

Bracket, Mounting Nut

$

$

Not available

Cub Cadet KH-25-450-03

Tag, Caution

$

$

Currently unavailable
