20821 B - Toro 48cm Recycler Walk-Behind Mower (SN: 069000001 - 069999999) (1996) ENGINE ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

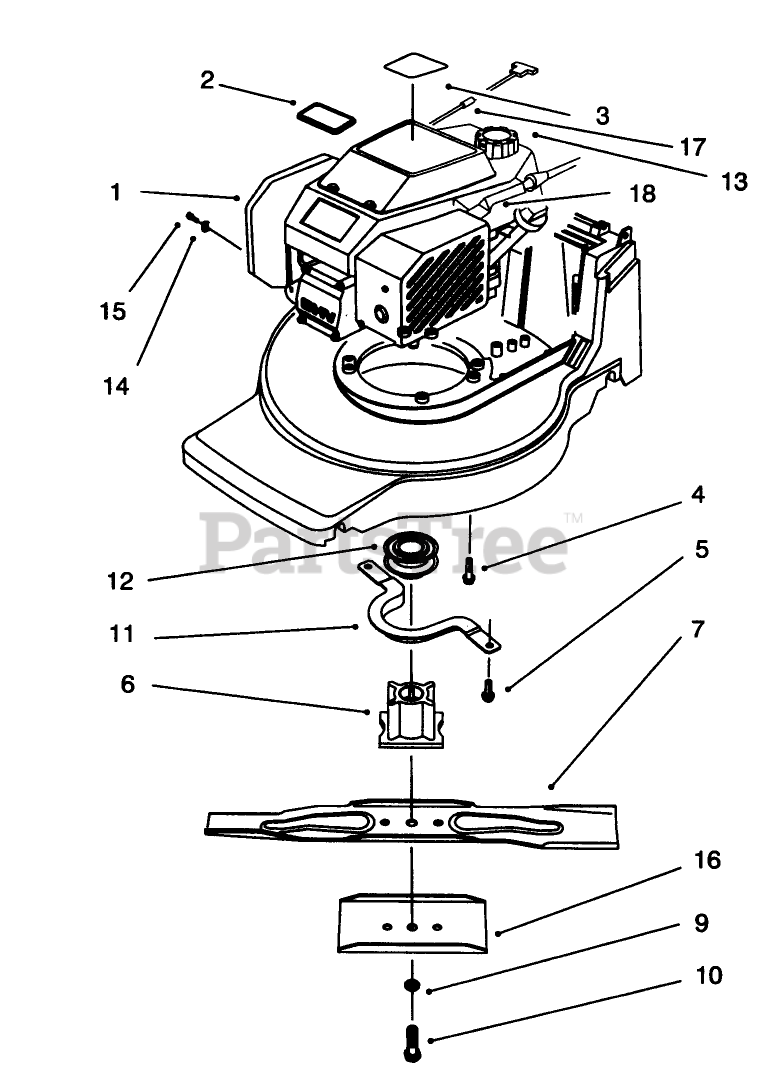

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 77-8954

Engine-Complete

$

$

Currently unavailable

2

Toro 92-2289

PLATE-LOGO
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

3

Toro 93-4355

DECAL - ENGINE

$

$

Not available

4

Toro 32144-102

SCREW-HWH

$3.99

$

Usually ships in 3-6 days

0

5

Toro 32144-4

SCREW-HWH

$1.49

$

In Stock, Qty 20+

0

6

Toro 71-7940

BLADE RETAINER - 25 MM

$

$

Not available

7

Toro 71-9260

Blade
(Superseded to 71-9260-03)

$

$

Not available

9

Toro 3253-22

WASHER-LOCK

$2.99

$

In Stock, only 3 left!

0

10

Toro 26-0672

BOLT-BLADE

$7.49

$

Usually ships in 3-6 days

0

11

Toro 71-7960

Guide-Belt
(Superseded to 71-7960-03)

$

$

Not available

12

Toro 62-7550

PULLEY-DRIVE, ZONE START

$

$

Not available

13

Toro 94-5575

ASSEMBLY - FUEL CAP

$58.99

$

Usually ships in 3-6 days

0

14

Toro 2210-249

CLAMP-CASING

$3.99

$

Usually ships in 3-6 days

0

15

Toro 86-7990

CLAMP SCREW F/W ENGINE

$3.99

$

Usually ships in 3-6 days

0

16

Toro 80-0510

Stiffener
(Superseded to 80-0510-03)

$18.99

$

In Stock, Qty 7

0

17

Toro 2210-316

STOP-ROPE

$8.49

$

Usually ships in 3-6 days

0

18

Toro 77-9550

COVER - BRAKE F/W

$

$

Not available
