20821 - Toro 48cm Recycler Walk-Behind Mower (SN: 079000001 - 079999999) (1997) HOUSING ASSEMBLY Parts Diagram

48cm Recycler Walk-Behind Mower

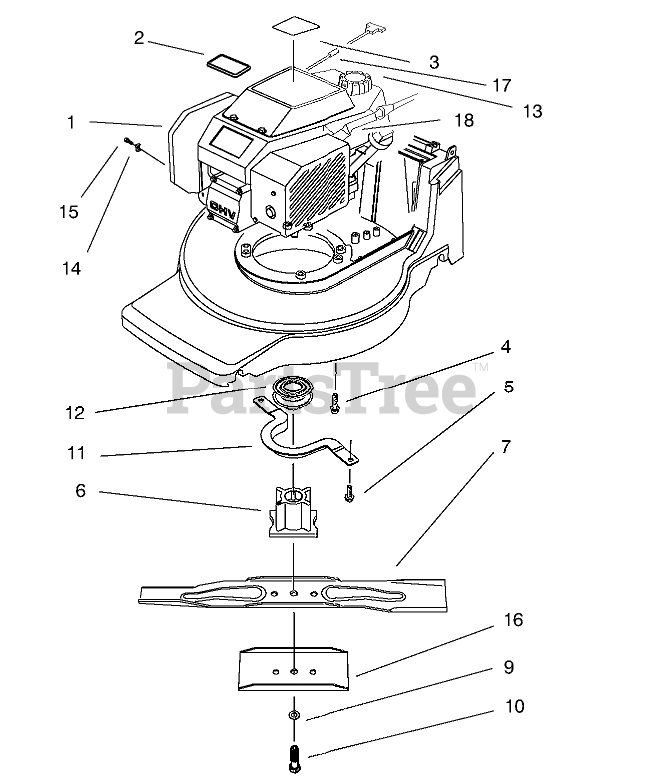

HOUSING ASSEMBLY Parts Diagram

  • Title
1

Toro Part# 77-8953

Engine
(Superseded to 77-9020)
Usually ships same day

Not available

$

$

2

Toro Part# 92-2289

PLATE-LOGO
(Superseded to 98-3206)
Usually ships in 1 day

$

$1.59

0

3

Toro Part# 93-4355

DECAL - ENGINE
Usually ships same day

Not available

$

$

4
Usually ships in 1 day

$

$2.56

0

5

Toro Part# 32144-4

SCREW-HWH
Usually ships in 1 day

$

$1.11

0

6

Toro Part# 71-7940

BLADE RETAINER - 25 MM
Usually ships same day

Not available

$

$

7

Toro Part# 71-9260

Blade
(Superseded to 71-9260-03)
Usually ships in 5 to 8 days

$

$58.83

0

9

Toro Part# 3253-22

WASHER-LOCK
Usually ships in 1 day

$

$1.88

0

10

Toro Part# 26-0672

BOLT-BLADE
Usually ships in 5 to 8 days

$

$5.26

0

11

Toro Part# 71-7960

Guide-Belt
(Superseded to 71-7960-03)
Usually ships in 5 to 8 days

$

$13.34

0

12

Toro Part# 62-7550

PULLEY-DRIVE, ZONE START
Usually ships same day

Not available

$

$

13
Usually ships in 1 day

$

$13.41

0

14

Toro Part# 2210-249

CLAMP-CASING
Usually ships in 5 to 8 days

$

$2.50

0

15

Toro Part# 86-7990

CLAMP SCREW F/W ENGINE
Usually ships in 5 to 8 days

$

$2.50

0

16

Toro Part# 80-0510

Stiffener
(Superseded to 80-0510-03)
Usually ships in 1 day

$

$14.52

0

17
Usually ships in 5 to 8 days

$

$5.89

0

18

Toro Part# 77-9550

COVER - BRAKE F/W
Usually ships in 5 to 8 days

$

$19.53

0
